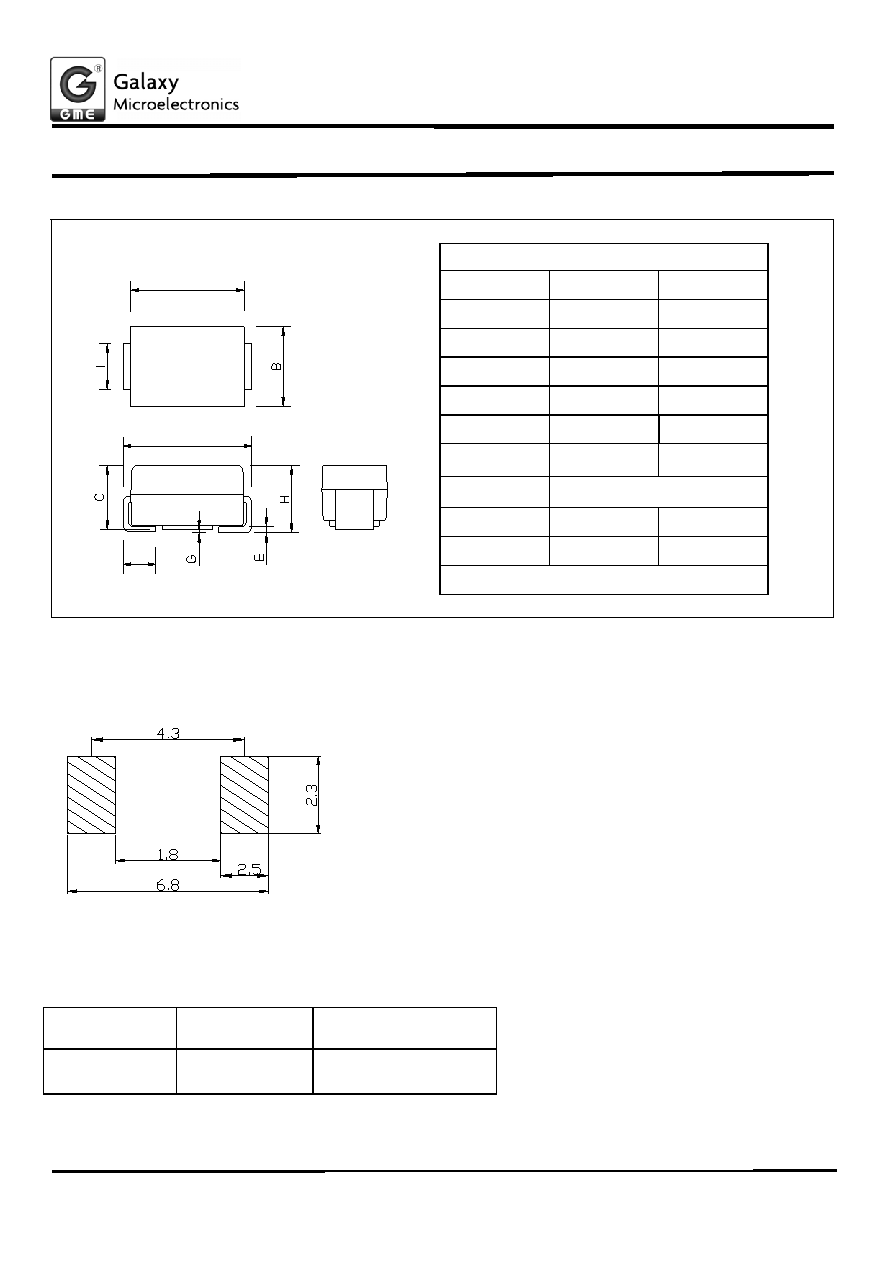

Production specification
Surface Mount Rectifiers
US3AB--US3MB
Document Number : SMB307AA
www.gmicroelec.com
2
PACKAGE OUTLINE DIMENSIONS
SOLDERING FOOTPRINT
Unit ：mm
PACKAGE
INFORMATION
Device
Package
Shipping
US3AB--US3MB DO-214AA(SMB)
3000/Tape&Reel
DO-214AA(SMB)
Dim
Min
Max
A
4.30
4.70
B
3.30
3.70
C
2.00
2.30
D
5.05
5.55
E
0.10
0.30
F
0.95
1.55
G
0.20MAX
H
2.10
2.50
I
1.85
2.15
All Dimensions in mm
