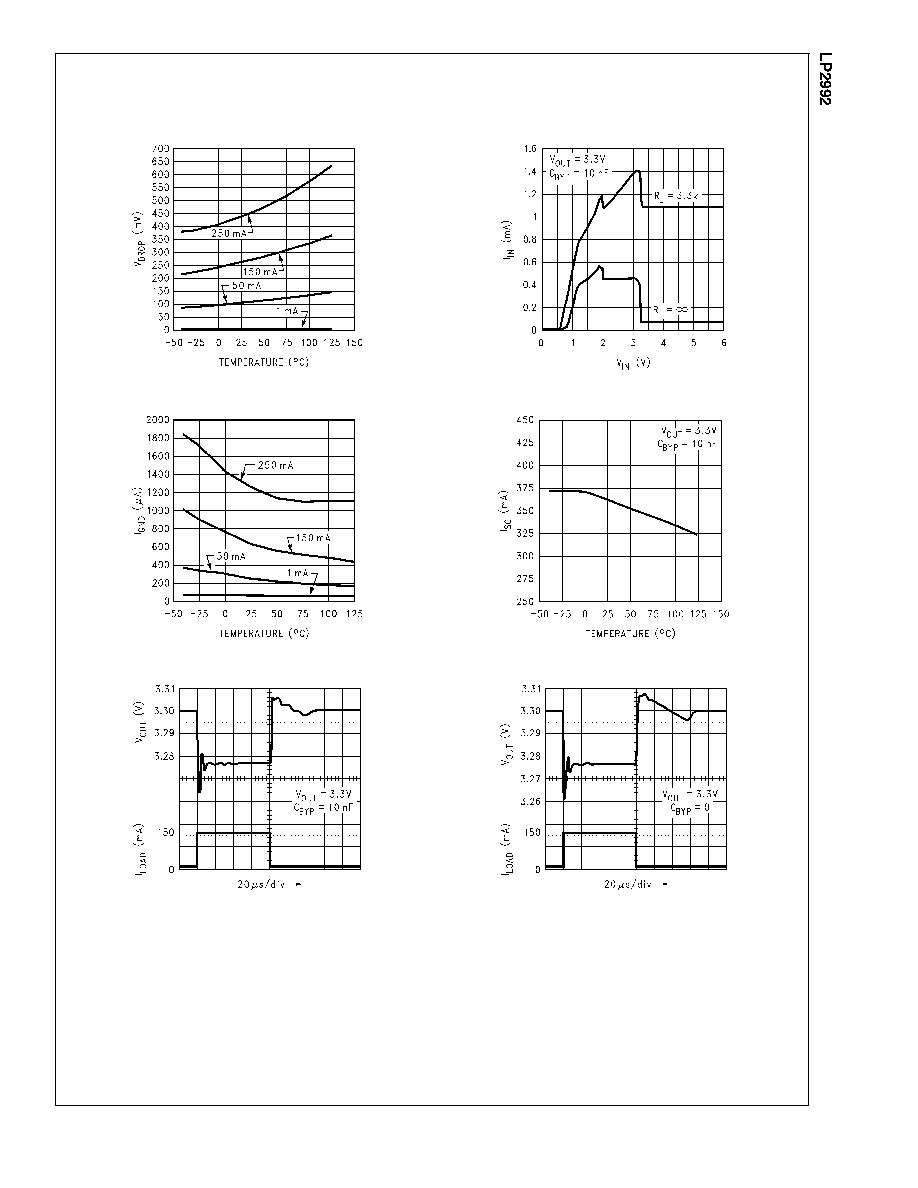

Typical Performance Characteristics Unless otherwise specified: C

IN = 1µF, COUT = 4.7µF, VIN =

VOUT(NOM) +1, TA = 25˚C, ON/OFF pin is tied to VIN. (Continued)

Dropout Voltage vs Temperature

Input Current vs Pin

20029427

20029429

Ignd vs Load and Temperature

Instantaneous Short Circuit Current

20029430

20029431

Load Transient Response

20029433

20029434
