ADA4622-1/ADA4622-2

Data Sheet

Rev. B | Page 26 of 34

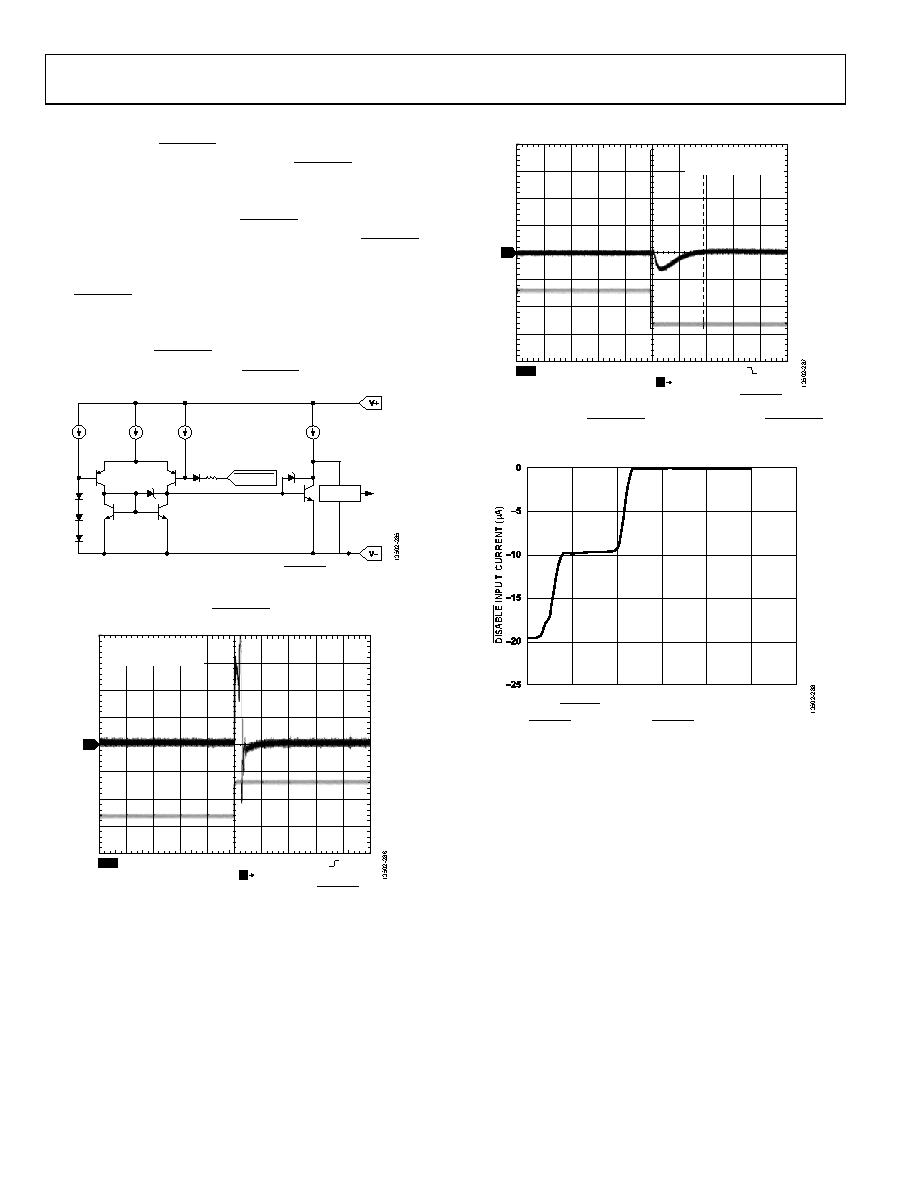

SHUTDOWN OPERATION

Use the active low DISABLE input to put the ADA4622-1 into

shutdown mode. When the voltage on the DISABLE input is

less than 1.4 V above the negative supply voltage (V−), the

ADA4622-1 shuts down and consumes only 50 μA to 60 μA

typical. When the voltage on the DISABLE input is more than

1.4 V above the negative supply voltage (V−), or if the DISABLE

input is left floating, the ADA4622-1 powers up. For best

performance, it is recommended that the input voltage level on

the DISABLE input be V− or that the input be left floating. The

ADA4622-1 is still a drop-in replacement for devices with

standard single channel op-amp pinouts because the ADA4622-1

enables when the DISABLE input is left floating. Figure 86

shows a simplified circuit for the DISABLE input.

DISABLE

MIRROR

IOUT

Figure 86. Simplified Circuit for the DISABLE Input

Figure 87 and Figure 88 show the start-up and shutdown

response when toggling the DISABLE input.

CH1 50mV

CH2 5V

M1.00µs

A CH2

–11.5V

49.8%

∆: 1.12µs

∆: 5mV

@: 1.10µs

@: –1mV

Figure 87. Start-Up Response When Toggling the DISABLE Input

CH1 100mV

CH2 5V

M1.00µs

A CH2

–11.5V

49.8%

∆: 1.98µs

∆: 2mV

@: –60ns

@: 2mV

Figure 88. Shutdown Response When Toggling the DISABLE Input

Figure 89 shows the DISABLE input current vs. the DISABLE

input voltage relative to the negative supply voltage (V−).

123

DISABLE INPUT VOLTAGE RELATIVE TO V– (V)

Figure 89. DISABLE Input Current vs. DISABLE Input Voltage Relative to V−
