Data Sheet

ADA4622-1/ADA4622-2

Rev. B | Page 33 of 34

0.30

0.25

0.20

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.55

1.45

1.35

1.84

1.74

1.64

0.203 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COPLANARITY

0.08

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-229-WEED-4

PIN 1

INDICATOR

(R 0.15)

TOP VIEW

BOTTOM VIEW

SIDE VIEW

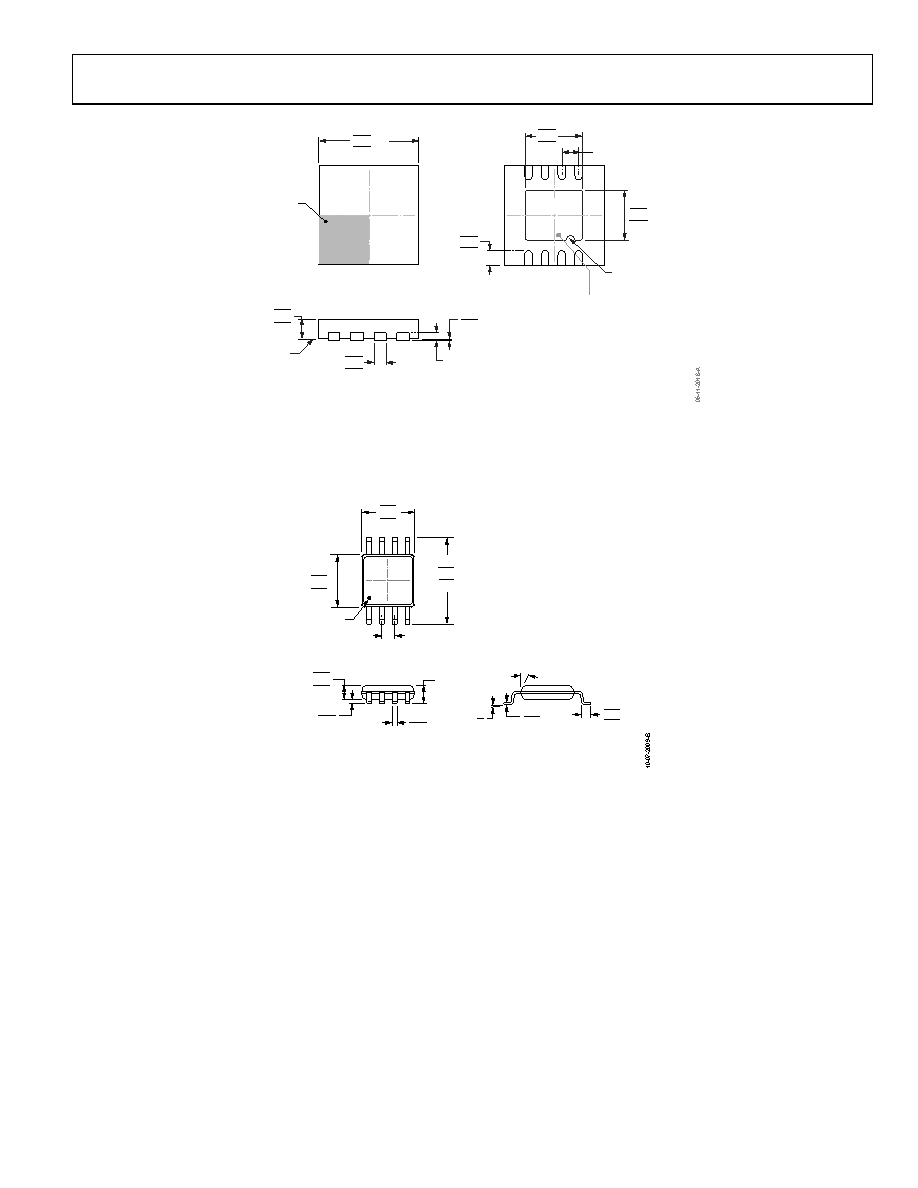

Figure 105. 8-Lead Lead Frame Chip Scale Package [LFCSP]

3 mm × 3 mm Body and 0.75 mm Package Height

(CP-8-13)

Dimensions shown in millimeters

COMPLIANT TO JEDEC STANDARDS MO-187-AA

6°

0°

0.80

0.55

0.40

0.65 BSC

0.40

0.25

1.10 MAX

3.20

3.00

2.80

COPLANARITY

0.10

0.23

0.09

3.20

3.00

2.80

5.15

4.90

4.65

PIN 1

IDENTIFIER

15° MAX

0.95

0.85

0.75

0.15

0.05

Figure 106. 8-Lead Mini Small Outline Package [MSOP]

(RM-8)

Dimensions shown in millimeters
