MP34DB02
Acoustic and electrical specifications
DocID026103 Rev 2
7/17
2.2
Timing characteristics
Table 5: Timing characteristics
Parameter
Description
Min
Max
Unit
fCLK
Clock frequency for normal mode
1
3.25
MHz
fPD
Clock frequency for power-down mode
0.23
MHz
TCLK
Clock period for normal mode
308
1000
ns
TR,EN
Data enabled on DATA line, L/R pin = 1
18
(1)
30
(1)
ns
TR,DIS
Data disabled on DATA line, L/R pin = 1
16
(1)
ns
TL,EN
Data enabled on DATA line, L/R pin = 0
18
(1)
30
(1)
ns
TL,DIS
Data disabled on DATA line, L/R pin = 0
16
(1)
ns
Notes:
(1)
From design simulations

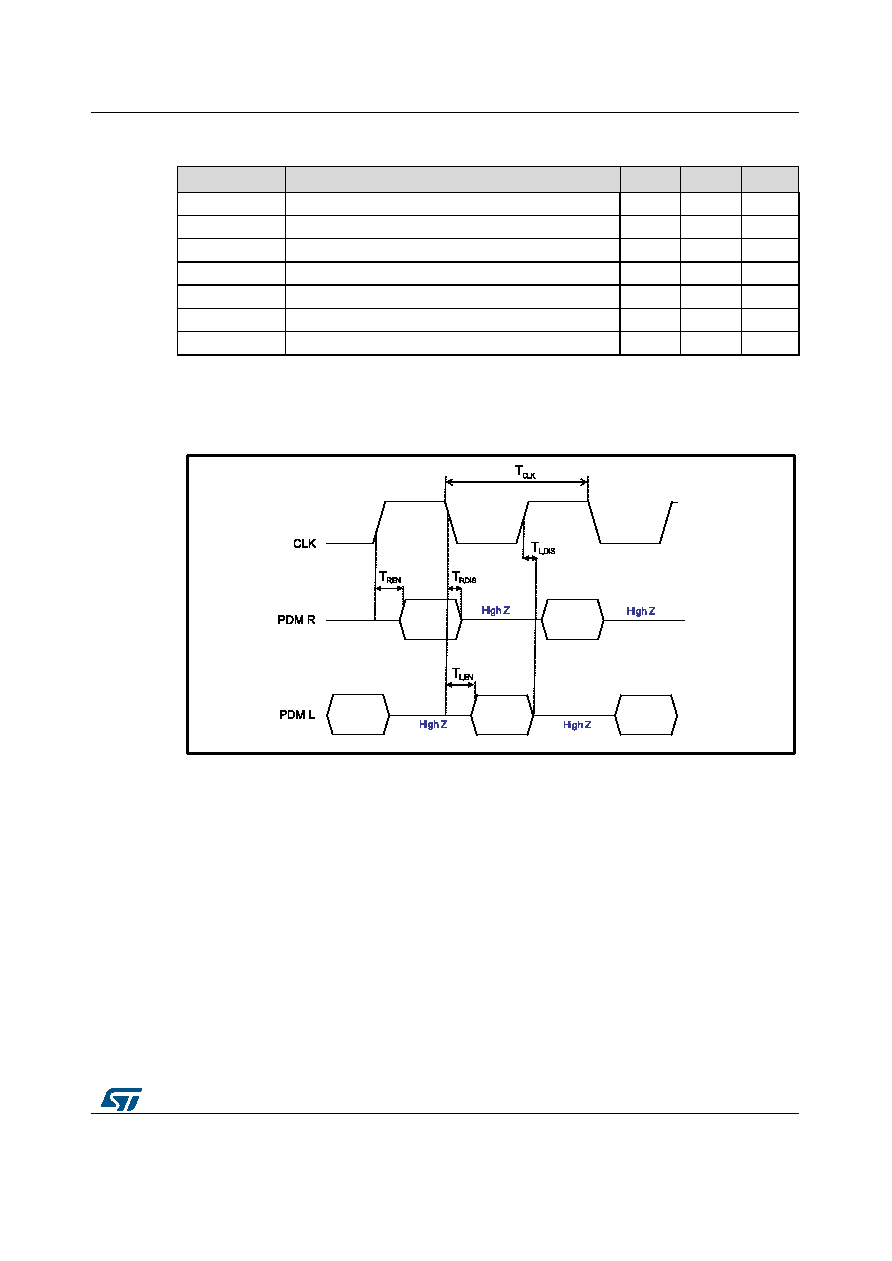

Figure 2: Timing waveforms
