Designed for Rugged Excellence

2-35

2-35

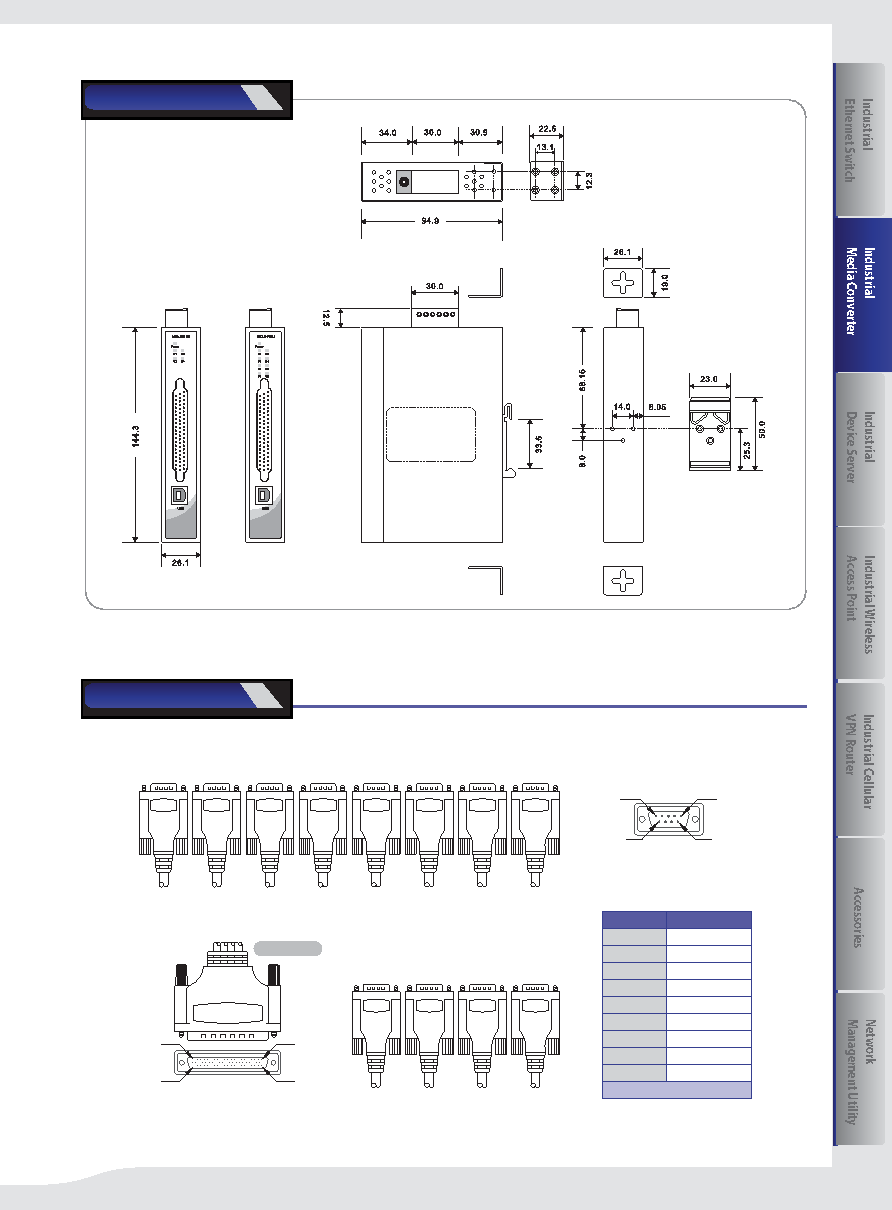

Dimensions

(Unit=mm)

Pin Definitions

Cable of DB62 male to 4/8-port DB9 male connector is provided. The cable length is 1 meter.

Pin #

RS-232

1

DCD

2

RXD

3

TXD

4

DTR

5

GND

6

DSR

7

RTS

8

CTS

9

N.C.

RS-232 mode act as DTE

8-port DB9 Male connector

DB9 Male Pin Assignment

4-port DB9 Male connector

DB62 Male with 4/8-port

RS-232 connector

1

2

3

4

1

2

3

4

5

6

7

8

OD 5.0mm

P1

P6

P9

P5

P1

P21

P43

P62

v1.2 / Dec, 2011

Industrial Media Converter USB to Serial Media Converter
