Series YB2

Panel Seal Pushbuttons

D127

www.nkkswitches.com

OPTIONAL ACCESSORIES

Adaptors

AT716

Single Pole

Solder Lug/

Quick Connect

Terminals

AT717

Double Pole

Solder Lug/

Quick Connect

Terminals

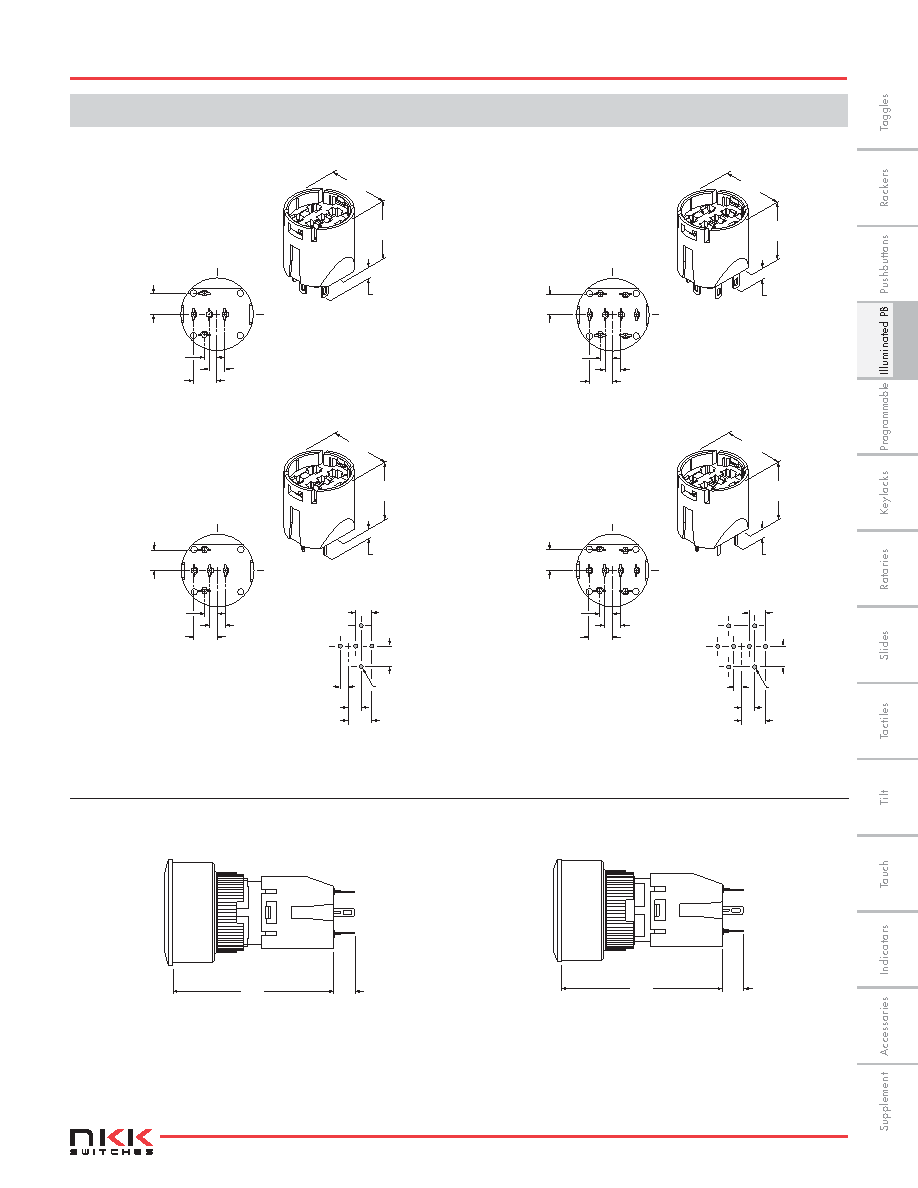

Dimension A:

Solder Lug .197” (5.0mm); Straight PC .157” (4.0mm)

Material: Glass fiber reinforced polyamide

Note: Order adaptors separately

Round & Square Switch Dimensions Shown with Adaptor AT716

AT718

Single Pole

Straight PC

Terminals

AT719

Double Pole

Straight PC

Terminals

(37.8)

1.488

(37.8)

1.488

Panel thickness for YB2 Round:

.020” ~ .161” (0.5mm ~ 4.1mm)

Panel thickness for YB2 Square:

.020” ~ .126” (0.5mm ~ 3.2mm)

(3.7) Typ

.146

(4.85) Typ

.191

(1.0) Dia Typ

.039

(5.55) Typ

.219

(3.0) Typ

.118

(1.85) Typ

.073

(4.0)

.157

(17.0)

.669

(17.1)

.673

(3.7) Typ

.146

(4.85) Typ

.191

(1.0) Dia Typ

.039

(5.55)

.219

(3.0) Typ

.118

(1.85) Typ

.073

(4.0)

.157

(17.0)

.669

(17.1)

.673

(5.0)

.197

(17.0)

.669

(17.1)

.673

COM

(4.85) Typ

.191

(5.55) Typ

.219

(3.0) Typ

.118

(3.7)

.146

–

COM

(4.85) Typ

.191

(5.55) Typ

.219

(3.0) Typ

.118

(3.7)

.146

–

(5.0)

.197

(17.0)

.669

(17.1)

.673

(4.85) Typ

.191

COM

–

(5.55)

.219

(3.0)

.118

(3.7)

.146

(4.85) Typ

.191

COM

–

(5.55)

.219

(3.0)

.118

(3.7)

.146
