Series YB2

Panel Seal Pushbuttons

D120

www.nkkswitches.com

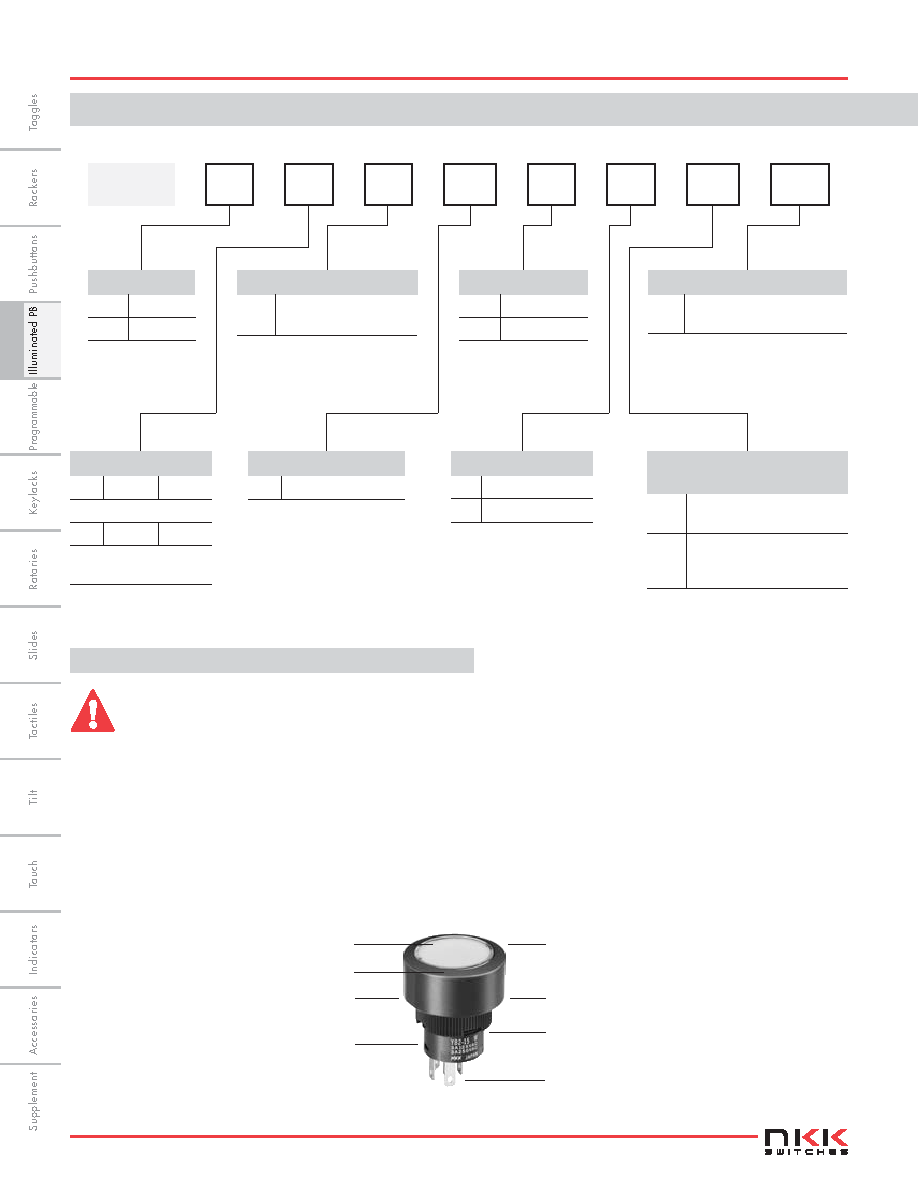

TYPICAL SWITCH

ORDERING EXAMPLE

LED Cap with Clear Lens

& White Diffuser

With Panel Seal

Silver Contacts with

3 Amp Rating

Solder Lug/.110” (2.8mm)

Quick Connect Terminals

White, Super Bright LED

Black Bezel

Round Black Housing

SPDT

ON-(ON) Circuit

DESCRIPTION FOR TYPICAL ORDERING EXAMPLE

YB215CWCKW01-6B-JB

YB2

Poles

SPDT

DPDT

Contact Point

Normally Open and

Normally Closed

Shape

Round

Square

Circuits

(ON)

( ) = Momentary

Alternate Action

with Latchdown

Panel Seal

With Panel Seal

Bezel

Black

Brushed Chrome

Contact Materials

& Ratings

Silver

Rated 3A @ 125V AC

Gold

Rated 0.4VA maximum @

28V AC/DC maximum

Terminals

Solder Lug/.110”

(2.8mm) Quick Connect

IMPORTANT:

Switches are supplied without cULus marking unless specified.

cULus recognized only when ordered with marking on the switch.

Specific models, ratings, and ordering instructions are noted on

General Specifications page.
