ADP1610ARMZ-R7 Datasheet(PDF) 9 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADP1610ARMZ-R7 Datasheet(HTML) 9 Page - Analog Devices |
|
|

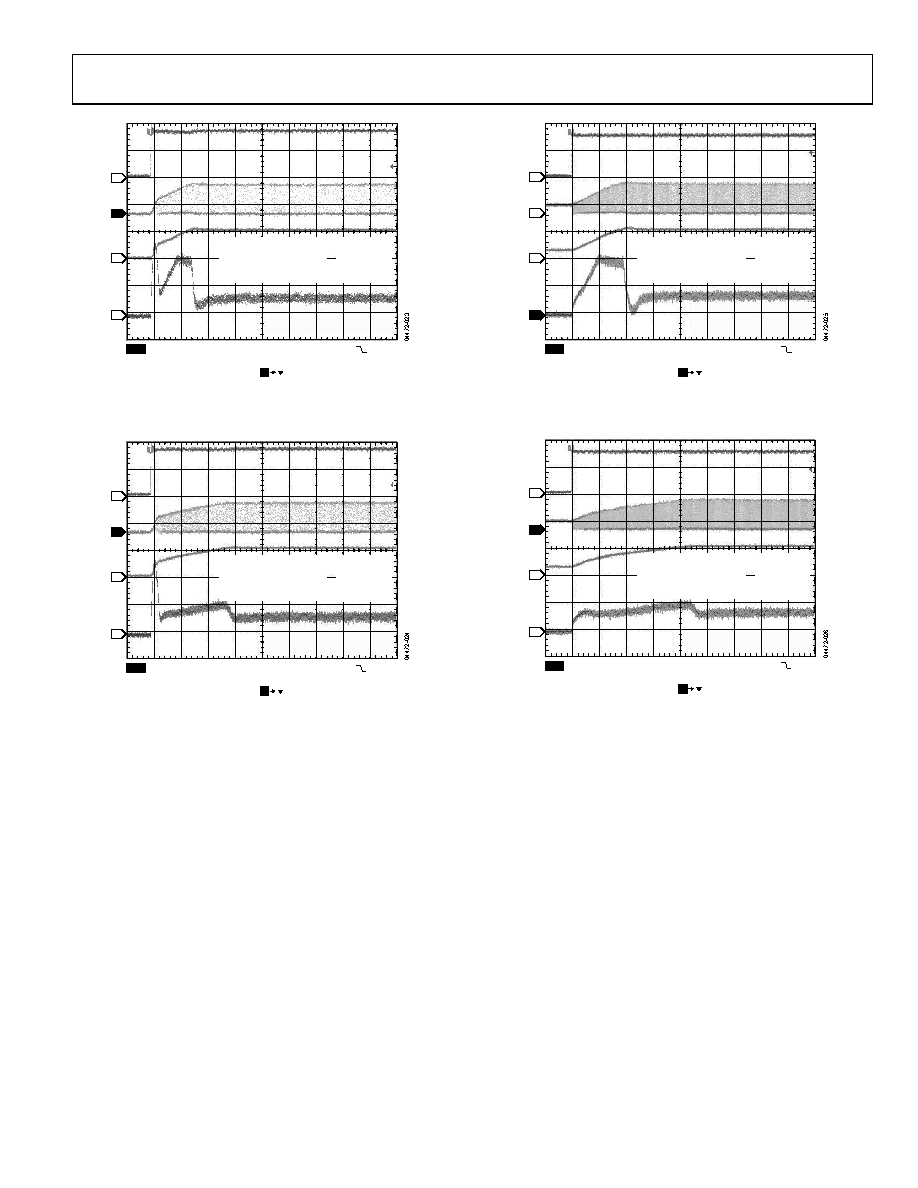

9 / 16 page  ADP1610 Rev. 0 | Page 9 of 16 CH1 10.0mV Ω CH2 2.00V M100 µs A CH2 680mV 4 2 3 1 CH3 10.0V CH4 10.00V T 414.800 µs VIN = 3.3V VOUT = 10V IOUT = 0.2A CSS = 0nF CH1 = IL 1A/DIV CH2 = VIN CH3 = VOUT CH4 = SW,FSW = 700kHz Figure 22. Start-Up Response from VIN, SS = 0 nF CH1 10.0mV Ω CH2 2.00V M100 µs A CH2 680mV 4 2 3 1 CH3 10.0V CH4 10.00V T 414.800 µs VIN = 3.3V VOUT = 10V IOUT = 0.2A CSS = 10nF CH1 = IL 1A/DIV CH2 = VIN CH3 = VOUT CH4 = SW,FSW = 700kHz Figure 23. Start-Up Response from VIN, SS = 10 nF CH1 10.0mV Ω CH2 2.00V M100 µs A CH2 1.72V 4 2 3 1 CH3 10.0V CH4 10.00V T 405.600 µs VIN = 3.3V VOUT = 10V IOUT = 0.2A CSS = 0nF CH1 = IL 1A/DIV CH2 = VIN CH3 = VOUT CH4 = SW,FSW = 700kHz Figure 24. Start-Up Response from Shutdown, SS = 0 nF CH1 10.0mV Ω CH2 2.00V M100 µs A CH2 1.72V 4 2 3 1 CH3 10.0V CH4 10.00V T 405.600 µs IOUT = 0.2A VIN = 3.3V VOUT = 10V CSS = 10nF CH1 = IL 1A/DIV CH2 = SD CH3 = VOUT CH4 = SW,FSW = 700kHz Figure 25. Start-Up Response from Shutdown, SS = 10 nF |
|
|
