–70

–60

–50

–40

–30

–20

–10

FREQUENCY (MHz)

0.1

–90

100

–80

ADSL CHANNEL 3, 4

ADSL CHANNEL 1, 2

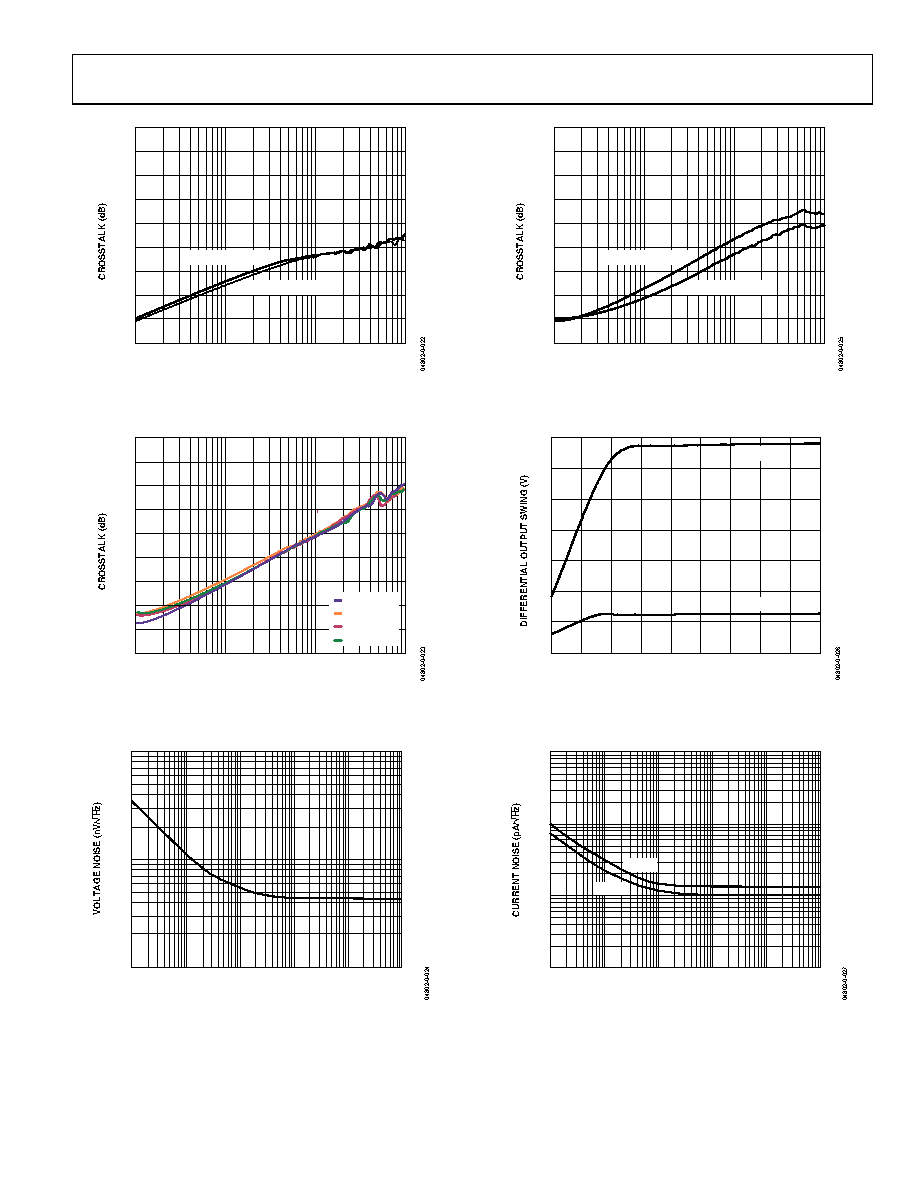

Figure 22. Crosstalk vs. Frequency

ADSL/ADSL2+ Circuit (Figure 32)

VS = ±12 V, G = +11, RLOAD = 100 Ω, VIN = 200 mV p-p

–70

–60

–50

–40

–30

–20

–10

FREQUENCY (MHz)

0.1

–90

100

–80

CHANNEL 1

CHANNEL 4

CHANNEL 2

CHANNEL 3

Figure 23. Crosstalk vs. Frequency

Quad Op Amp Circuit (Figure 29)

VS = ±12 V, G = +5, RLOAD = 100 Ω, VIN = 200 mV p-p

100

0.01

0.1

100

1000

FREQUENCY (kHz)

Figure 24. Voltage Noise vs. Frequency

–70

–60

–50

–40

–30

–20

–10

FREQUENCY (MHz)

0.1

–90

100

–80

DIFF CHANNEL 3, 4

DIFF CHANNEL 1, 2

Figure 25. Crosstalk vs. Frequency

Dual Differential Driver Circuit (Figure 30)

VS = ±12 V, G = +5, RLOAD = 100 Ω, VIN = 200 mV p-p

100

RESISTIVE LOAD (

Ω)

VS = ±12V

VS = ±5V

Figure 26. Differential Output Swing vs. RLOAD

ADSL/ADSL2+ Circuit (Figure 32)

G = +11

100

1000

0.01

0.1

100

1000

FREQUENCY (kHz)

–INOISE

+INOISE

Figure 27. Current Noise vs. Frequency
