UC3863A
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
8 of 10
www.unisonic.com.tw
QW-R103-148.B

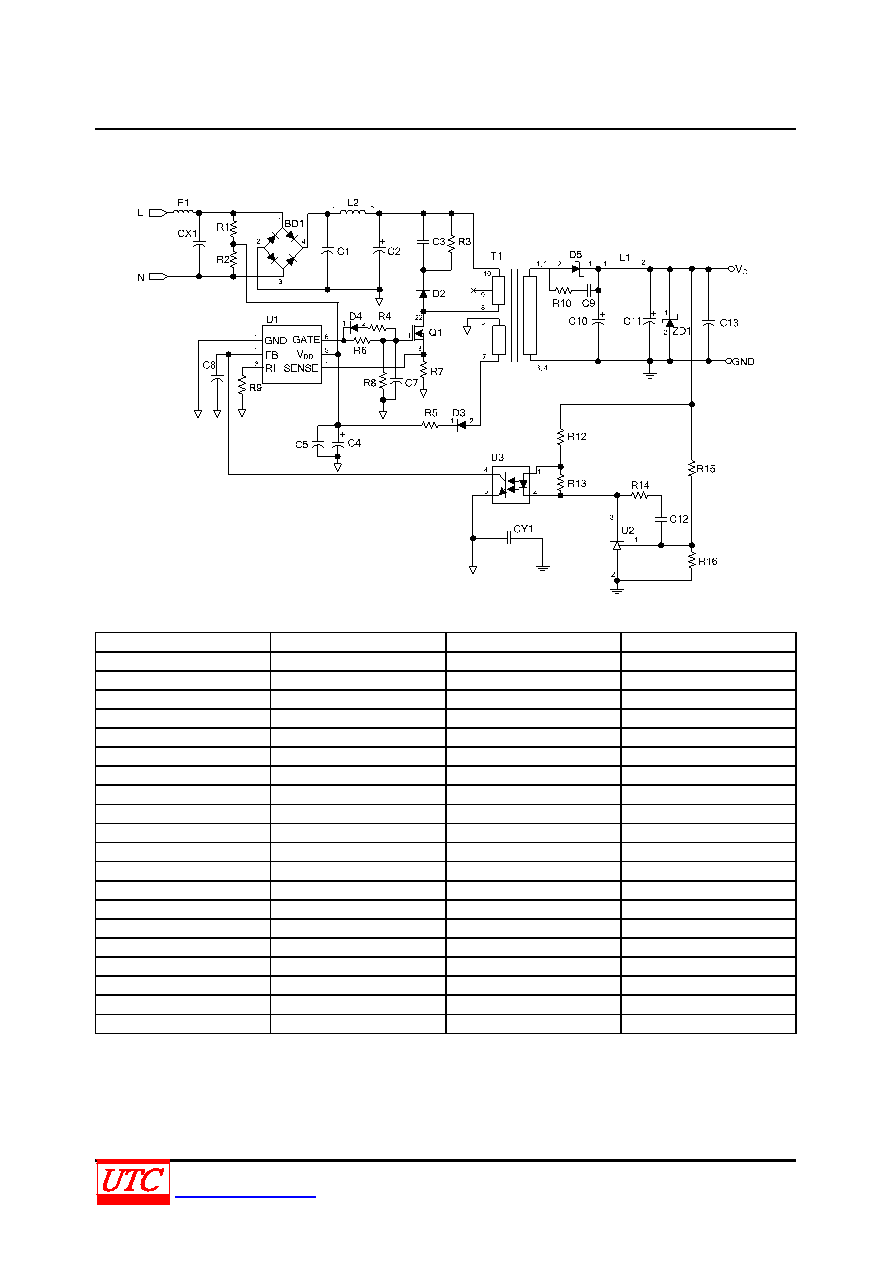

REFRENCE CIRCUIT (12V/1.5A)
BOM
Reference
Component
Reference
Component
BD1
1N4007×4
L2
33μH 6×8mm
CX1 (Optional)
NC
Q1
4N65K
CY1 (Optional)
YC 102P/400V (Y1)
R1,R2
R 4.7MΩ 1206
C2
EC 33μF/400V 105°C
R3
R 200K
C1
EC 6.8μF/400V 105°C
R4 (Optional)
0Ω
C3
CC 0.001μF/1000V
R5
R 24.9Ω
C4
EC 10μF/50V
R6
R 42.21Ω 1206
C5,C13 (Optional)
CC 104P/50V
R7
R 0.66Ω 1W
C7 (Optional)
NC
R8
R 51kΩ 1206
C8
CC 103P/25V
R9
R 100kΩ 0805
C9
NC
R10
NC
C10
EC 470u/10V
R12
R 220Ω 0805
C11
EC 220u/10V
R13
R 1KΩ 0805
C12
CC 103P/50V 0805
R14
R 10KΩ 0805
C14
NC
R15
R 100kΩ 0805
D2
Diode FR107
R16
R 25.94kΩ 0805
D4 (Optional)
1N4148
T1
EE-219
D5
MBR10100
U1
IC UC3863A
F1
2A/250V
U2
TL431
L1
NC
U3
PC817
