AD8139ACP-R2 Datasheet(PDF) 12 Page - Analog Devices

Part # AD8139ACP-R2
Description  Low Noise Rail-to-Rail Differential ADC Driver
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

AD8139ACP-R2 Datasheet(HTML) 12 Page - Analog Devices

Back Button AD8139ACP-R2 Datasheet HTML 8Page - Analog Devices AD8139ACP-R2 Datasheet HTML 9Page - Analog Devices AD8139ACP-R2 Datasheet HTML 10Page - Analog Devices AD8139ACP-R2 Datasheet HTML 11Page - Analog Devices AD8139ACP-R2 Datasheet HTML 12Page - Analog Devices AD8139ACP-R2 Datasheet HTML 13Page - Analog Devices AD8139ACP-R2 Datasheet HTML 14Page - Analog Devices AD8139ACP-R2 Datasheet HTML 15Page - Analog Devices AD8139ACP-R2 Datasheet HTML 16Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 24 page
background image
AD8139
Rev. A | Page 12 of 24
–30
–130
–120
–110
–100
–90
–80
–70
–60
–50
–40
0.1
1
10
100
FREQUENCY (MHz)
VO, dm = 2.0V p-p
RF = 200Ω
RF = 500Ω
RF = 1kΩ

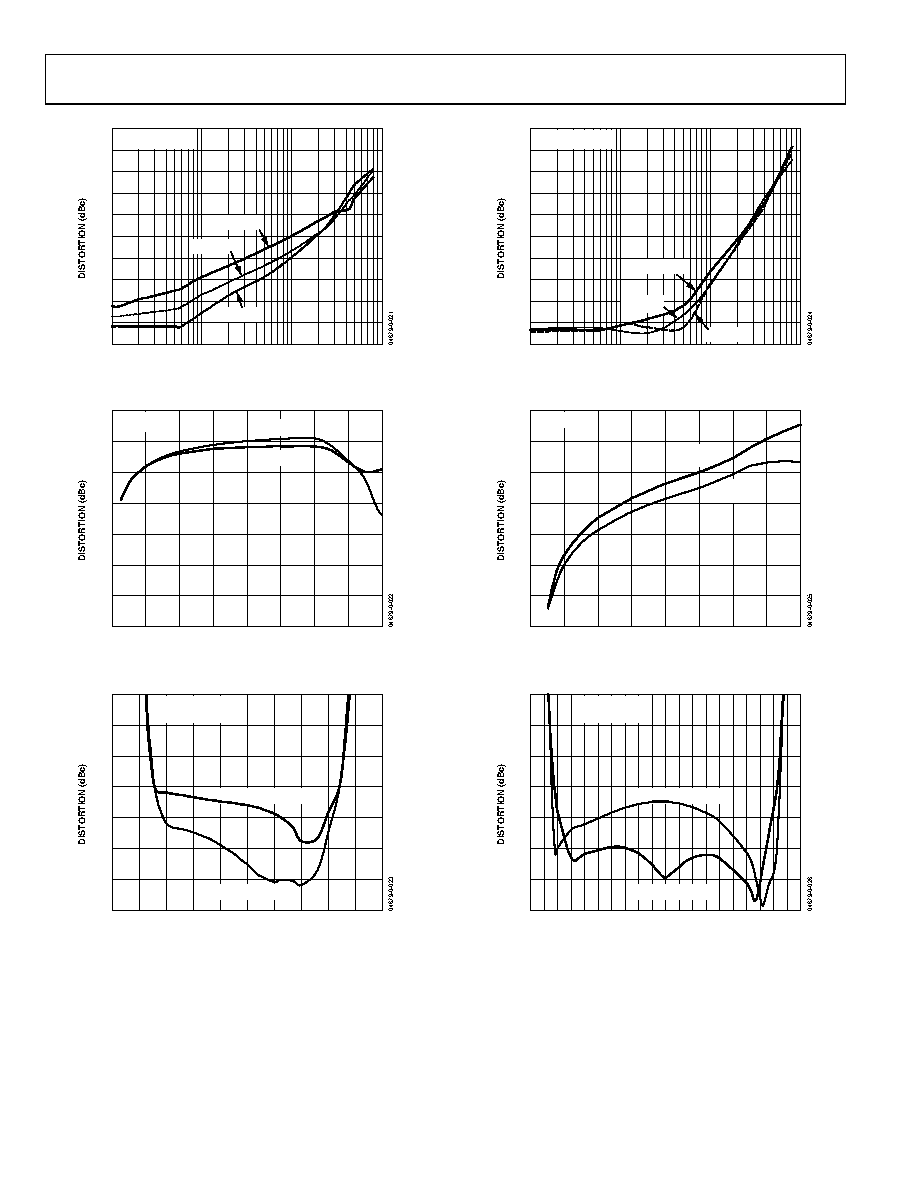

Figure 25. Second Harmonic Distortion vs. Frequency and RF
–80
–90
–100
–110
–120
–130
–140
–150
01
2345
678
VO, dm (V p-p)
FC = 2MHz
VS = +5V
VS = ±5V
Figure 26. Second Harmonic Distortion Vs. Output Amplitude
–60
–130
–100
–120
–110
–90
–80
–70
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
VOCM (V)
VO, dm = 2V p-p
FC = 2MHz
SECOND HARMONIC
THIRD HARMONIC
Figure 27. Harmonic Distortion vs. VOCM, VS = +5 V
–30
–130
–120
–110
–100
–90
–80
–70
–60
–50
–40
0.1
1
10
100
FREQUENCY (MHz)
VO, dm = 2.0V p-p
RF = 200Ω
RF = 1kΩ
RF = 500Ω
Figure 28. Third Harmonic Distortion vs. Frequency and RF
–80
–90
–100
–110
–120
–130
–140
–150
08
7
6
5
4
3
2
1
VO, dm (V p-p)
FC = 2MHz
VS = +5V
VS = ±5V
Figure 29. Third Harmonic Distortion vs. Output Amplitude
–60
–130
–100
–120
–110
–90
–80
–70
–5
–4
–3
–2
–0
0
1
2
3
4
5
VOCM (V)
VO, dm = 2V p-p
FC = 2MHz
SECOND HARMONIC
THIRD HARMONIC
Figure 30. Harmonic Distortion vs. VOCM, VS = ±5 V
