RP60Q-RUW Datasheet(PDF) 9 Page - Recom International Power

Part # RP60Q-RUW
Description  60 Watt Quarter Brick Single Output
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  RECOM [Recom International Power]
Direct Link  http://www.recom-international.com
Logo RECOM - Recom International Power

RP60Q-RUW Datasheet(HTML) 9 Page - Recom International Power

Back Button RP60Q-RUW Datasheet HTML 2Page - Recom International Power RP60Q-RUW Datasheet HTML 3Page - Recom International Power RP60Q-RUW Datasheet HTML 4Page - Recom International Power RP60Q-RUW Datasheet HTML 5Page - Recom International Power RP60Q-RUW Datasheet HTML 6Page - Recom International Power RP60Q-RUW Datasheet HTML 7Page - Recom International Power RP60Q-RUW Datasheet HTML 8Page - Recom International Power RP60Q-RUW Datasheet HTML 9Page - Recom International Power RP60Q-RUW Datasheet HTML 10Page - Recom International Power
Zoom Inzoom in Zoom Outzoom out
 9 / 10 page
background image
www.recom-power.com
REV.: 0/2018
PB-9

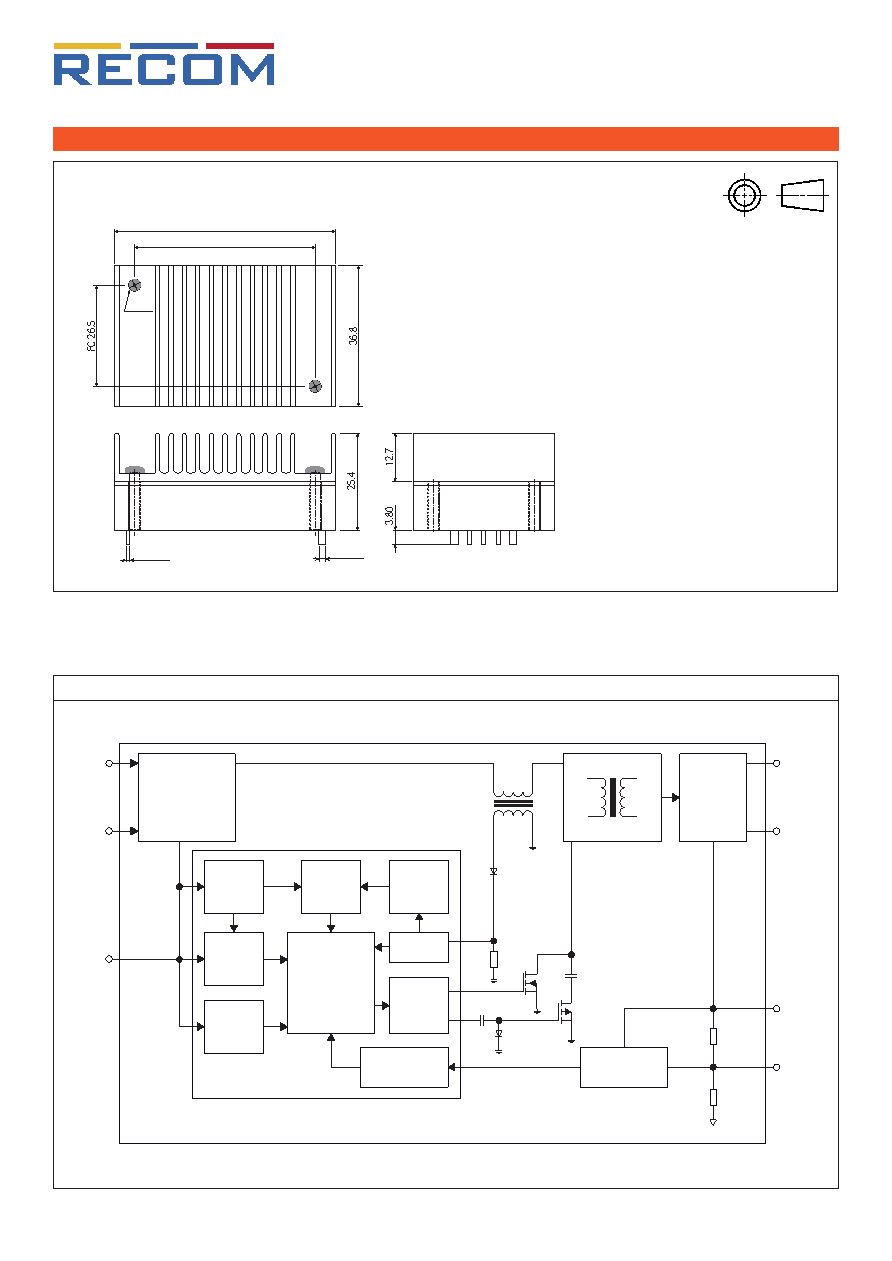

DC/DC Converter
Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
RP60Q-RUW
Series
FC 47.24
57.9
4xM3
Ø1.6±0.10
Ø1.0±0.10
Dimension Drawing Heat-sink (mm)
BLOCK DIAGRAMM
Input Filter
UVLO
Oscillator
Controller
+V
in
-V
in
CTRL
+V
out
-V
out
+Sense
-Sense
Trim
Start Up
Regulator
Softstart
Current Mode
PWM
Current to
Voltage
Converter
Feedback and
Isolation
Rectifier and
Output Filter
Transformer
Restart
Current
Sense
Main and
Clamp
Gate
Driver
