DC/DC Converter

RP60Q-RUW

Series

8

6

4

2

7

5

3

1

0

0

10

20

30

40

50

60

70

80

90

100

Output Load [%]

24Vin

36Vin

48Vin

72Vin

110Vin

RP60Q-11005SRW

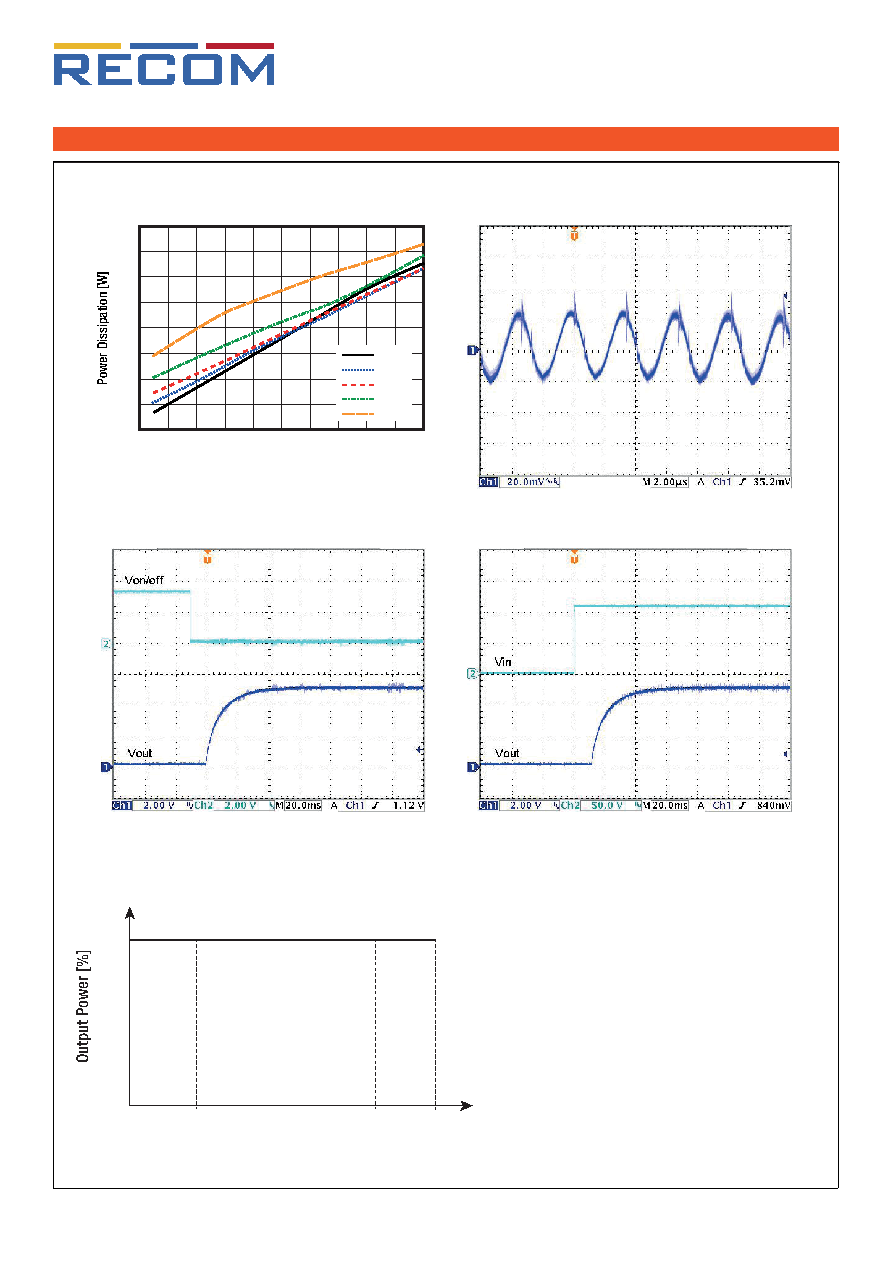

Power Dissipation vs. Output Current

Power up Start-up Rise Characteristic

ON/OFF Control Start up Rise Characteristic

Typical Output Ripple and Noise/full load

Input Voltage [VDC]

100

0

0.1s

<1s

continuous operation

14.0

16.0

185

160

Input Voltage Range

Continuous full power operation is rated between 16V and 160V,

including full load start-up.

Once running, the converter will operate for short periods of time over

an extended input voltage range down to 14V and up to 185V, thus

covering all EN50155 under-voltage and over-voltage transient

conditions.
