LV321
LINEAR INTEGRATED CIRCUIT
UNISONIC TECHNOLOGIES CO., LTD
8 of 10
www.unisonic.com.tw
QW-R105-036.E

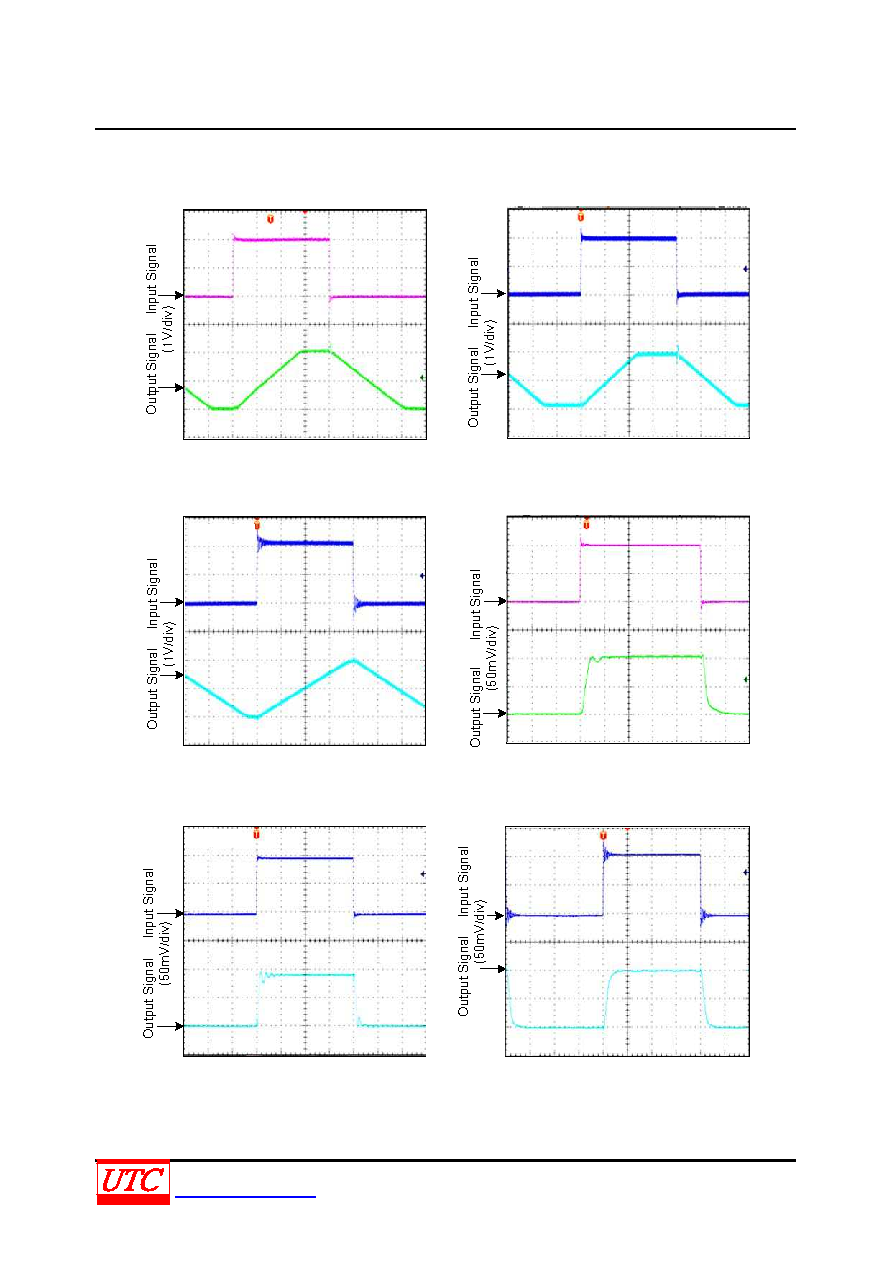

T Y PI CAL CH ARACT ERI ST I CS (Cont .)
Non-Inverting Large Signal Pulse
Response
Time (1µs/div)
Non-Inverting Large Signal Pulse
Response
Time (1µs/div)
TA = 25°
С
TA = 85°
С
Non-Inverting Large Signal Pulse
Response
Time (1µs/div)
Non-Inverting Small Signal Pulse
Response
Time (1µs/div)
TA = -40°
С
TA = 25°
С
Non-Inverting Small Signal Pulse
Response
Non-Inverting Small Signal Pulse
Response
TA = 85°
С
TA = -40°
С
Time (1µs/div)
Time (1µs/div)
TA= 25°
С
TA= -40°
С
TA= 85°
С
