Only One Name Means ProTek’Tion™

05602.R0 1/19

Page 4

PBYG10Y

ISO 9001: 2015 CERTIFIED

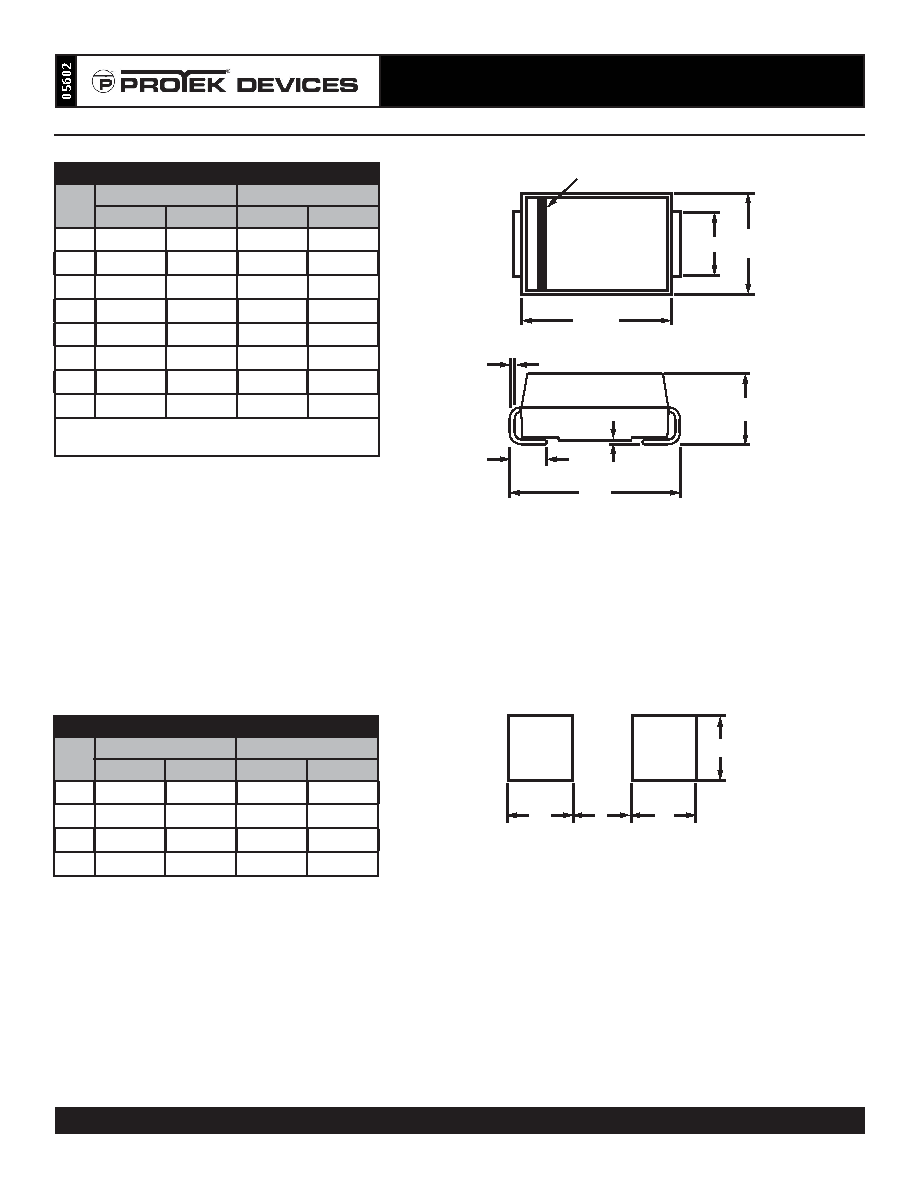

DO-214AC PACKAGE INFORMATION

OUTLINE DIMENSIONS

DIM

MILLIMETERS

INCHES

MIN

MAX

MIN

MAX

A

1.23

1.63

0.049

0.064

B

4.10

4.55

0.162

0.179

C

2.51

2.76

0.099

0.109

D

1.96

2.26

0.077

0.089

E

0.75

1.51

0.03

0.06

F

0.00

0.20

0.000

0.008

G

4.87

5.22

0.192

0.206

H

0.15

0.30

0.006

0.012

NOTES

1. Dimensions are exclusive of mold flash and metal burrs.

PAD LAYOUT DIMENSIONS

DIM

MILLIMETERS

INCHES

MIN

MAX

MIN

MAX

A

1.57

-

0.062

-

B

1.55

-

0.061

-

C

-

2.28

-

0.090

D

1.55

-

0.061

-

A

C

B

Polarity Band

D

G

F

E

H

A

B

C

D
