PBYG10Y

ISO 9001: 2015 CERTIFIED

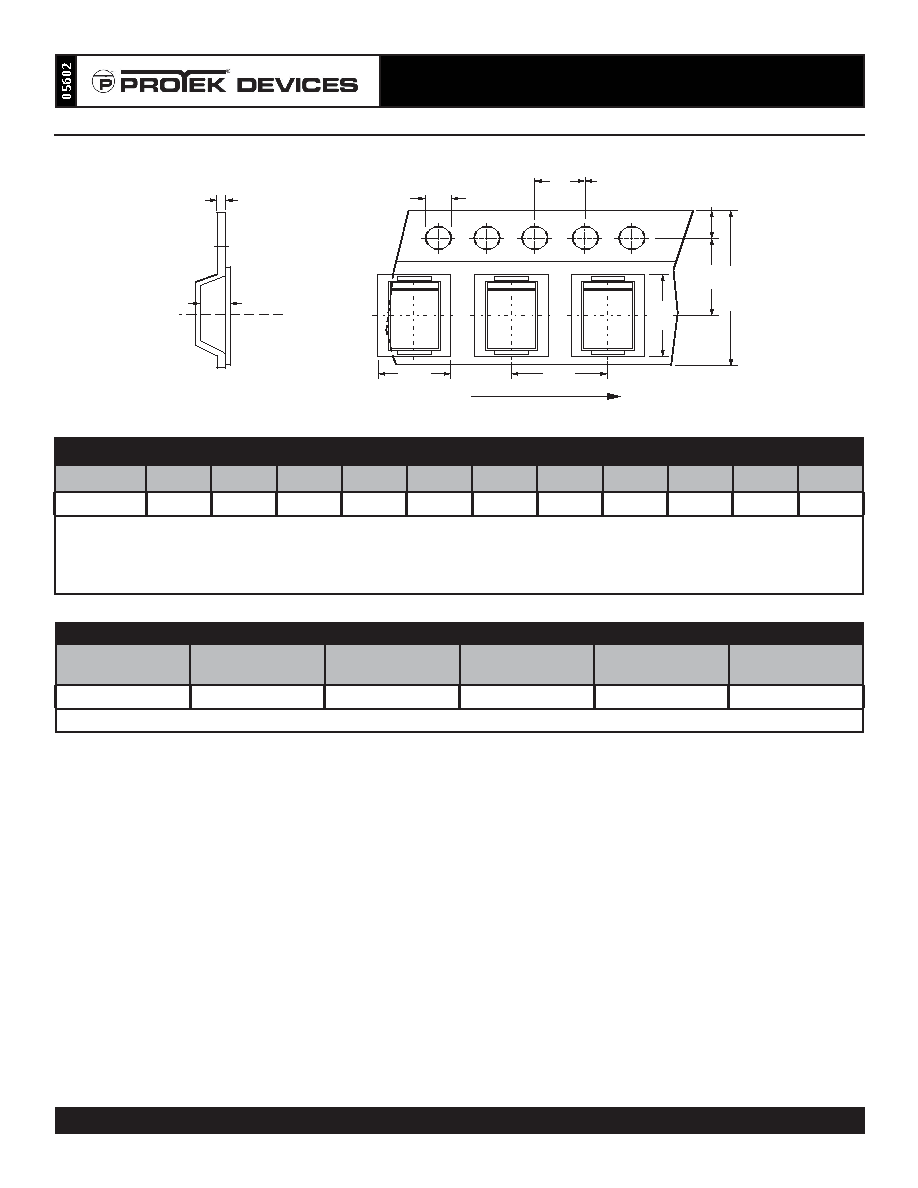

TAPE AND REEL

SPECIFICATIONS

REEL DIA.

TAPE

WIDTH

A0

B0

K0

D

E

F

W

P0

P

tmax

330mm (13”)

12mm

2.79 ± 0.10 5.33 ± 0.10 2.36 ± 0.10 1.55 ± 0.10 1.75 ± 0.10 5.5 ± 0.05 12.00 ± 0.30 4.00 ± 0.10 4.00 ± 0.10

0.4

NOTES

1. Dimensions are in millimeters.

2. Surface mount product is taped and reeled in accordance with EIA-481.

3. Suffix - T13 = 13” Reel - 5,000 pieces per 16mm tape.

4. Marking on Part - marking code (see page 2), date code, logo and polarity band.

User Direction of Feed

t

K0

A0

P

D

P0

E

B0

F

W

10 Pitches Cumulative

Tolerance on tape ± 0.2

ORDERING INFORMATION

BASE PART NUMBER

LEADFREE SUFFIX

TAPE SUFFIX

QTY/REEL

REEL SIZE

TUBE QTY

PBYG10Y

N/A

-T13

5,000

13”

N/A

This device is only available in a Lead-Free configuration.
