FP1108R1-R18-R Datasheet(PDF) 3 Page - Eaton All Rights Reserved. |
|
|
|||||||||||||||||||||||||||||
FP1108R1-R18-R Datasheet(HTML) 3 Page - Eaton All Rights Reserved. |
|
|

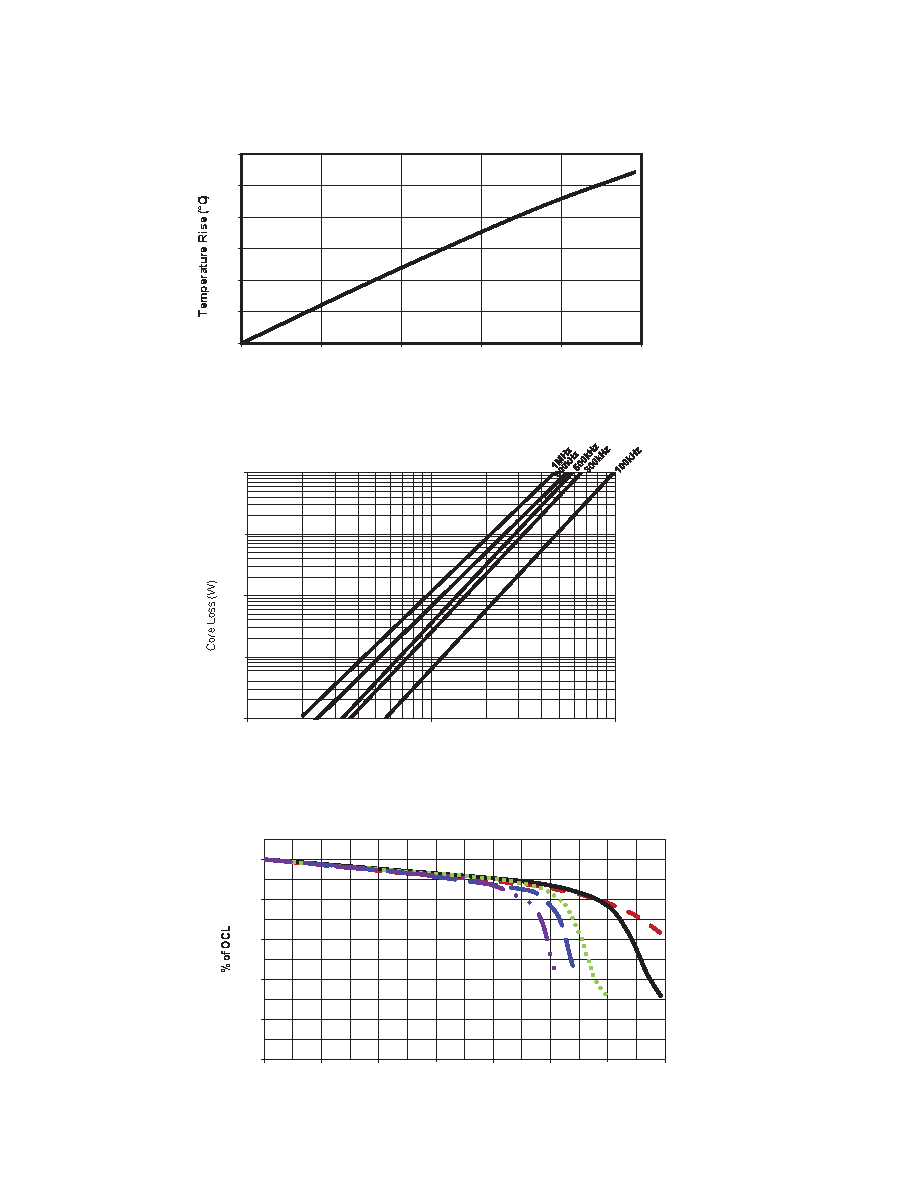

3 / 4 page  3 www.eaton.com/electronics Technical Data 10227 Effective September 2017 Core loss vs Bp-p Inductance characteristics FP1108R High frequency, high current power inductor Temperature rise vs total loss 60 50 40 30 20 10 0 0.0 0.5 1.0 1.5 2.0 2.5 Total Loss (W) Core Loss vs. Bp-p 10 1 0.1 0.01 0.001 100 1000 10,000 Bp-p (Gauss) % of OCL vs % of Isat1 100% 80% -40°C 60% +125°C +100°C 40% +85°C +25°C 20% 0% 0% 20% 40% 60% 80% 100% 120% 140% % of Isat1 |
|
|
