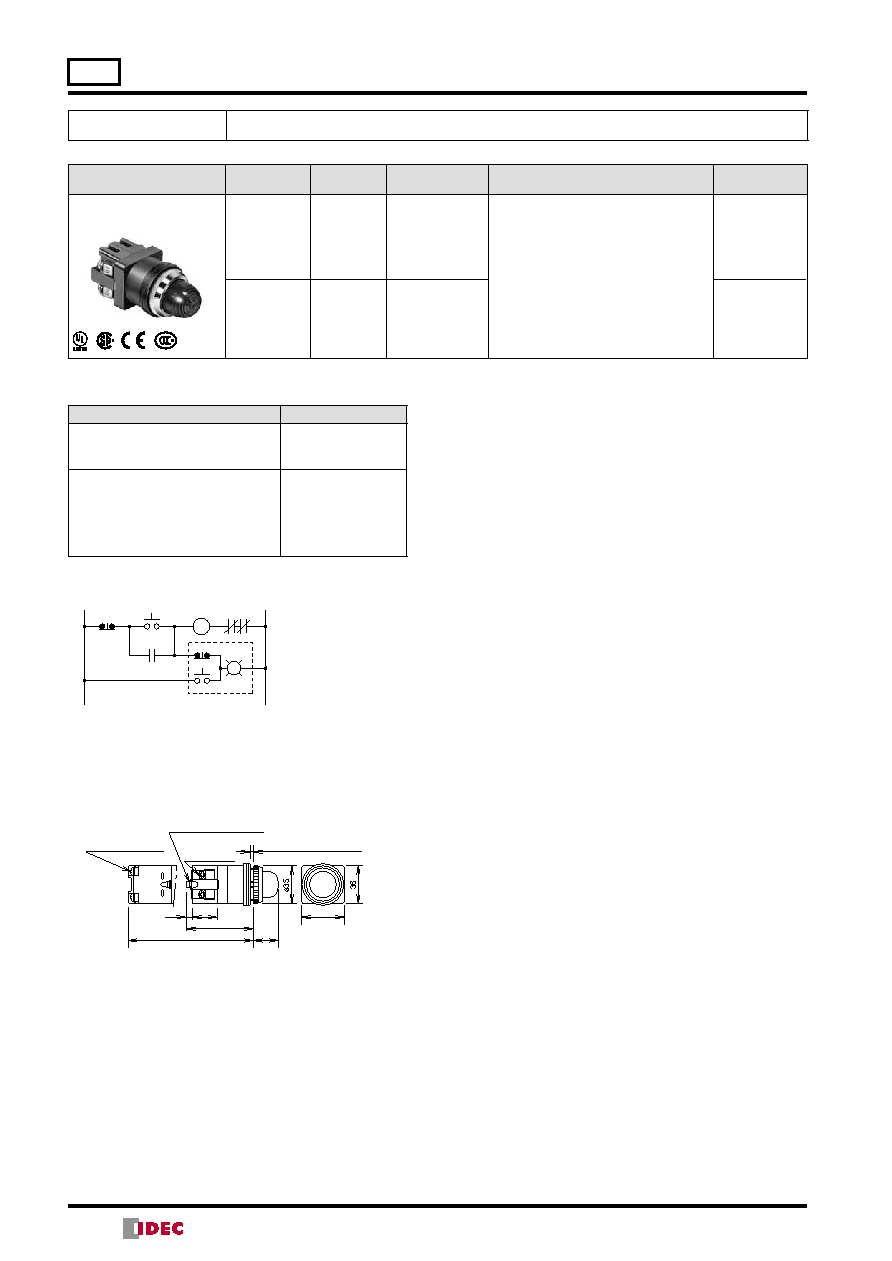

ø30 ø30 Series Pilot Lights

Incandescent

Push-to-Check Pilot Lights (1W)

Package Quantity: 1

Shape

Lamp

Lamp Recep-

tacle

Part No.

➁ Lens/LED Color Code

Applicable Lamp

Push-to-Check

APN1*P

Without Lamp

BA9S

APN199P➁

clear

green

orange

red

blue

white

See page 75 for

lamps.

Incandescent

BA9S

APN1➂P➁

LS-*

Operating Voltage Code

Specify an operating voltage code in place of ➂ in the Part No.

➂ Operating Voltage Code

Input

66: 6V AC/DC

88: 12V AC/DC

33: 24V AC/DC

Full voltage

16: 100/110V AC

126: 120V AC

26: 200/220V AC

246: 240V AC

386: 380V AC

46: 400/440V AC

486: 480V AC

Transformer

Circuit Example

Dimensions

STOP

START

OLS

Push-to-Check

Pilot Light

Note: The lamp of the push-to-check pilot light is not connected to the contact

terminal. To connect, refer to the diagram on the left.

M3 Lamp Terminal Screw

M3.5 Terminal Screw

M3.5 Terminal

Screw

6 23

B: 96.5

23.5

A: 62.5

Panel Thickness 0.8 to 7.5

All dimensions in mm.

Push-to-Check

APN1*P

A: Full voltage

B: Transformer

(14/03/18)
