MODEL: M8XT3

M8XT3 SPECIFICATIONS

ES-5385 Rev.5 Page 4/5

http://www.m-system.co.jp/

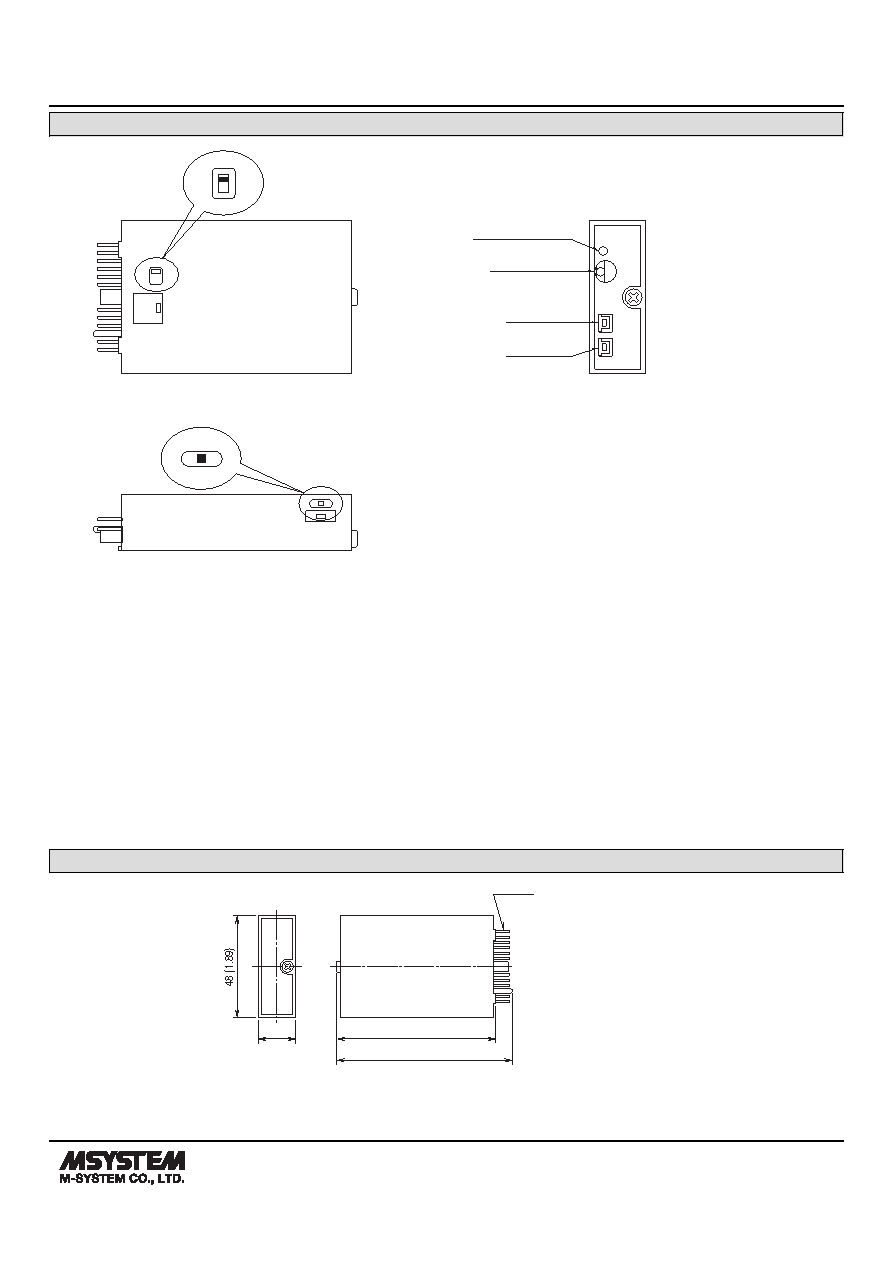

EXTERNAL VIEWS

■ FRONT VIEW

■ SIDE VIEW

■ BOTTOM VIEW

Zero/Span Selector

UP Switch

Status Indicator LED

Configurator Jack

DOWN Switch

Output Range Selector

V

I

S

Z

I

OFF

Z

S

V

Output Range Selector

(SW POSITION: RANGE)

I: V2Z1 (-10 – +10 V / 0 – 20 mA DC)

V: V2V2 (-10 – +10 V / -10 – +10 V DC)

Zero/Span Selector

(SW POSITION: MODE)

S: SPAN

Center: OFF

Z: ZERO

Zero/Span is calibrated by using UP/DOWN switches when

the calibration mode is set. Refer to the instruction manual

for detailed procedures.

EXTERNAL DIMENSIONS unit: mm (inch)

I/O PINS

17.5(.69)

75 (2.95)

83 (3.27)
