MODEL: R7G

R7G SPECIFICATIONS

ES-7817 Rev.3 Page 3/6

http://www.m-system.co.jp/

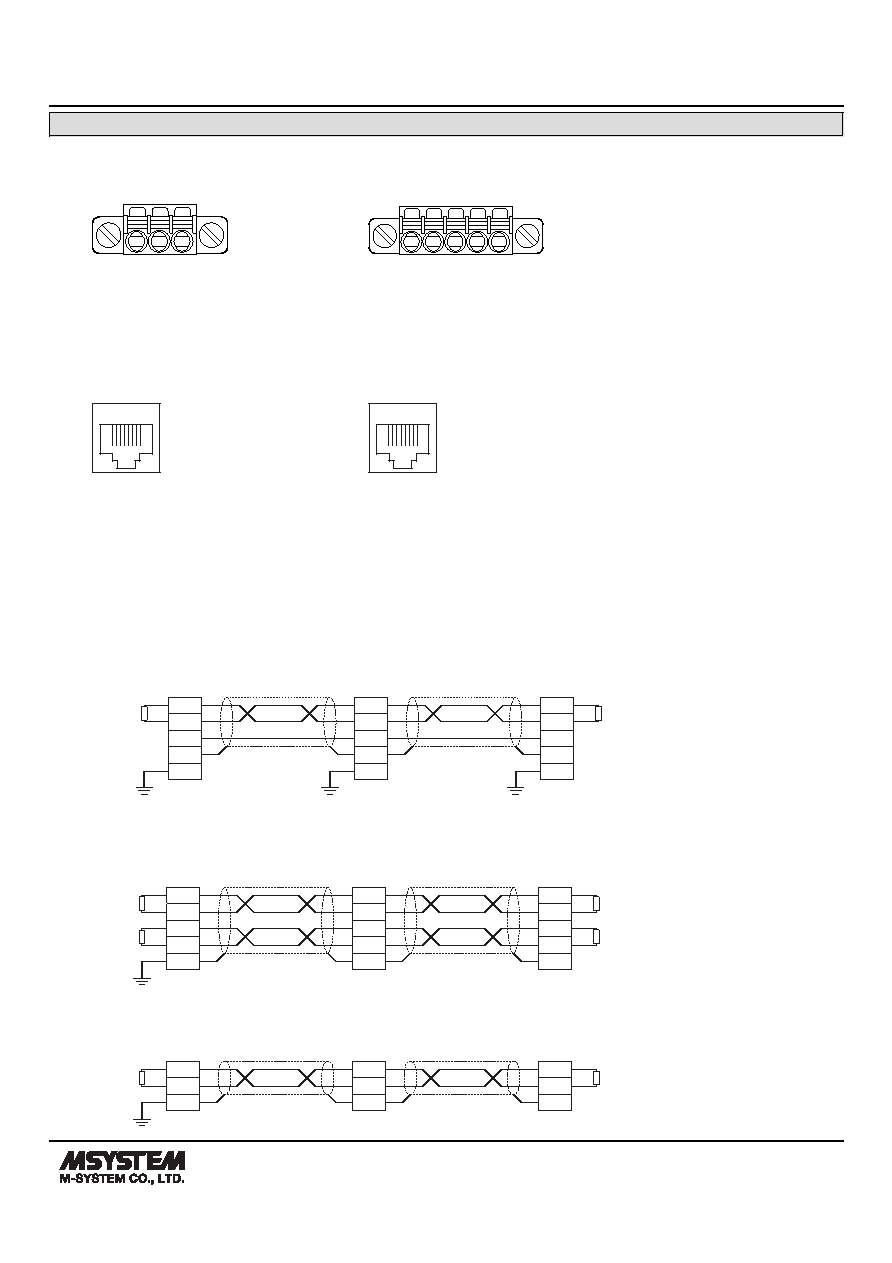

CONNECTION DIAGRAMS

1. NC

2. NC

3. TXD+

4. TXD–

5. RXD+

6. RXD–

7. NC

8. SLD1

• HLS

Full-duplex communication

• Power supply

• CC-Link

• HLS

Full-duplex communication

No connection

Network (Slave, transmission +)

Network (Slave, transmission –)

Network (Master, transmission+)

Network (Master, transmission–)

No connection

Shield

TXD–

TXD+

RXD–

RXD+

SLD1

RXD–

RXD+

TXD–

TXD+

RXD–

RXD+

TXD–

TXD+

SLD1

Master Module

Slave Module

Terminating Resistor

1. NC

2. NC

3. TR+

4. TR–

5. NC

6. NC

7. NC

8. SLD1

Half-duplex communication

No connection

Network (+)

Network (–)

No connection

Shield

TR+

TR–

SLD1

TR+

TR–

SLD1

TR+

TR–

SLD1

Master Module

Slave Module

Terminating Resistor

12345678

1. +24V

2. 0V

3. FG

Power Supply (24V DC)

Power Supply (0V)

1. DA

2. DB

3. DG

4. SLD

5. FG

blue

white

yellow

Shield

SLD

Master Module

SLD

Remote Module

SLD

Remote Module

Terminating Resistor

blue

white

yellow

Terminating Resistor

■ Master Module wirng

• CC-Link

■ POWER SUPPLY AND TRANSMISSION WIRING
