MODEL: R7G

R7G SPECIFICATIONS

ES-7817 Rev.3 Page 2/6

http://www.m-system.co.jp/

Network cable:

• Full-duplex communication: ZHY262PS, ZHT262PS

• Half-duplex communication: ZHY221PS

(Shinko Seisen Industry Co., Ltd.)

Data allocation: 2

Terminating resistor: Built-in (Selected with the DIP SW;

factory setting: disabled)

■ CC-LINK COMMUNICATION

CC-LinkVer.1.10

Network cable: CC-Link cable designated by Mitsubishi

Electric

Station Type: Remote I/O

Data allocation: 2 (1 station x 2)

Terminating resistor: Built-in (Selected with the DIP SW;

factory setting: disabled)

INSTALLATION

Power input

•DC:

Operational voltage range 24 V DC ±10 %;

ripple 10 %p-p max., approx. 1.8 W

Operating temperature: -10 to +55°C (14 to 131°F)

Storage temperature: -20 to +65°C (-4 to +149°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Atmosphere: No corrosive gas or heavy dust

Mounting: DIN rail

Weight: 150 g (0.33 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @1 minute

(CC-Link or FG to HLS to power)

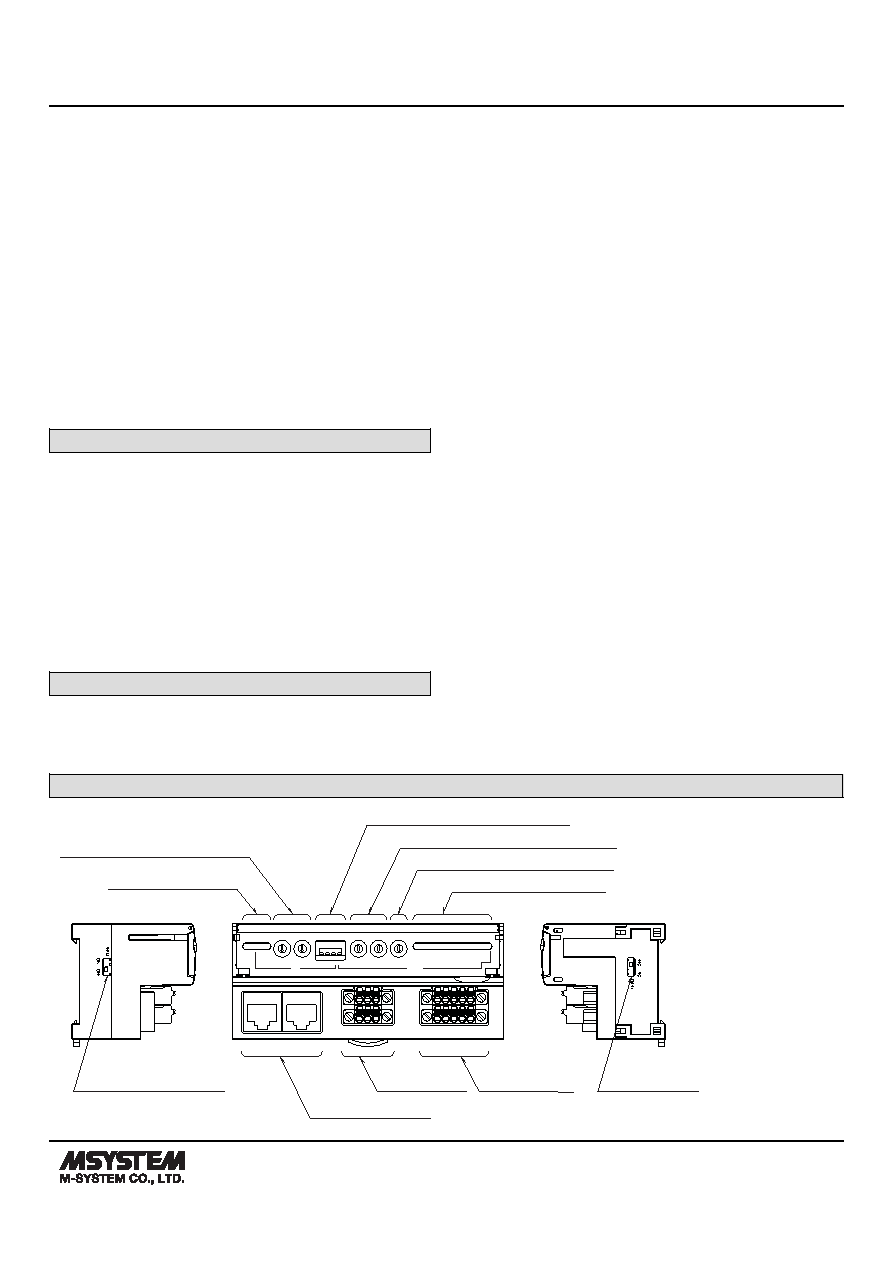

EXTERNAL VIEW

X10

X1

STATION ADD.

PWR

RUN1 RUN2

6M

12M

C1

H1

H

C

C2

H2

HLS

RUN1 ERR1 SD1 RD1

RUN2 ERR2 SD2 RD2

X10

X1

STATION ADD.

B.RATE

CC-Link

Operating Mode Setting DIP SW (SW1)

CC-Link Baud Rate Setting Rotary SW

CC-Link Station Address Setting Rotary SW

CC-Link Terminating

Resistor SW

CC-Link Status Indicator LED

CC-Link Terminals

Power Supply

Terminals

HLS RJ-45 Connectors

HLS Terminating Resistor SW

HLS Station Address Setting Rotay SW

HLS Status Indicator LED
