MODEL: R7HL

R7HL SPECIFICATIONS

ES-7812 Rev.18 Page 5/55

http://www.m-system.co.jp/

CONNECTION DIAGRAMS

■ I/O connection (Refer to each model terminal assignment)

• R7HL-PA4E

e-CON connector

Recommended cable connector: 37104-( )-000FL (3M Company)

(The cable connector is not included in the package.

Specify wire size instead of ( ); refer to the specifications of the product.)

• R7HL-DAC16ES

Tension clamp terminal block

Cable connector: FMC1,5/16-ST-3,5 (Phoenix Contact)

(The cable connector is included in the package.)

Applicable wire size: 0.2 − 1.5 mm2; stripped length 10 mm

Recommended solderless terminal

- AI0,25−10YE 0.25 mm2 (Phoenix Contact)

- AI0,34−10TQ 0.34 mm2 (Phoenix Contact)

- AI0,5−10WH 0.5 mm2 (Phoenix Contact)

- AI0,75−10GY 0.75 mm2 (Phoenix Contact)

- A1−10 1.0 mm2 (Phoenix Contact)

- A1,5−10 1.5 mm2 (Phoenix Contact)

• R7HL-PA2Sx

Tension clamp terminal block

Cable connector: FMC1,5/18-ST-3,5 (Phoenix Contact)

(The cable connector is included in the package.)

Applicable wire size: 0.2 − 1.5 mm2; stripped length 10 mm

Recommended solderless terminal

- AI0,25−10YE 0.25 mm2 (Phoenix Contact)

- AI0,34−10TQ 0.34 mm2 (Phoenix Contact)

- AI0,5−10WH 0.5 mm2 (Phoenix Contact)

- AI0,75−10GY 0.75 mm2 (Phoenix Contact)

- A1−10 1.0 mm2 (Phoenix Contact)

- A1,5−10 1.5 mm2 (Phoenix Contact)

• Except R7HL-DAC16ES, R7HL-PA4E and R7HL-PA2Sx

M3 separable screw terminals (torque 0.5 N·m)

Screw terminal material: Nickel-plated steel

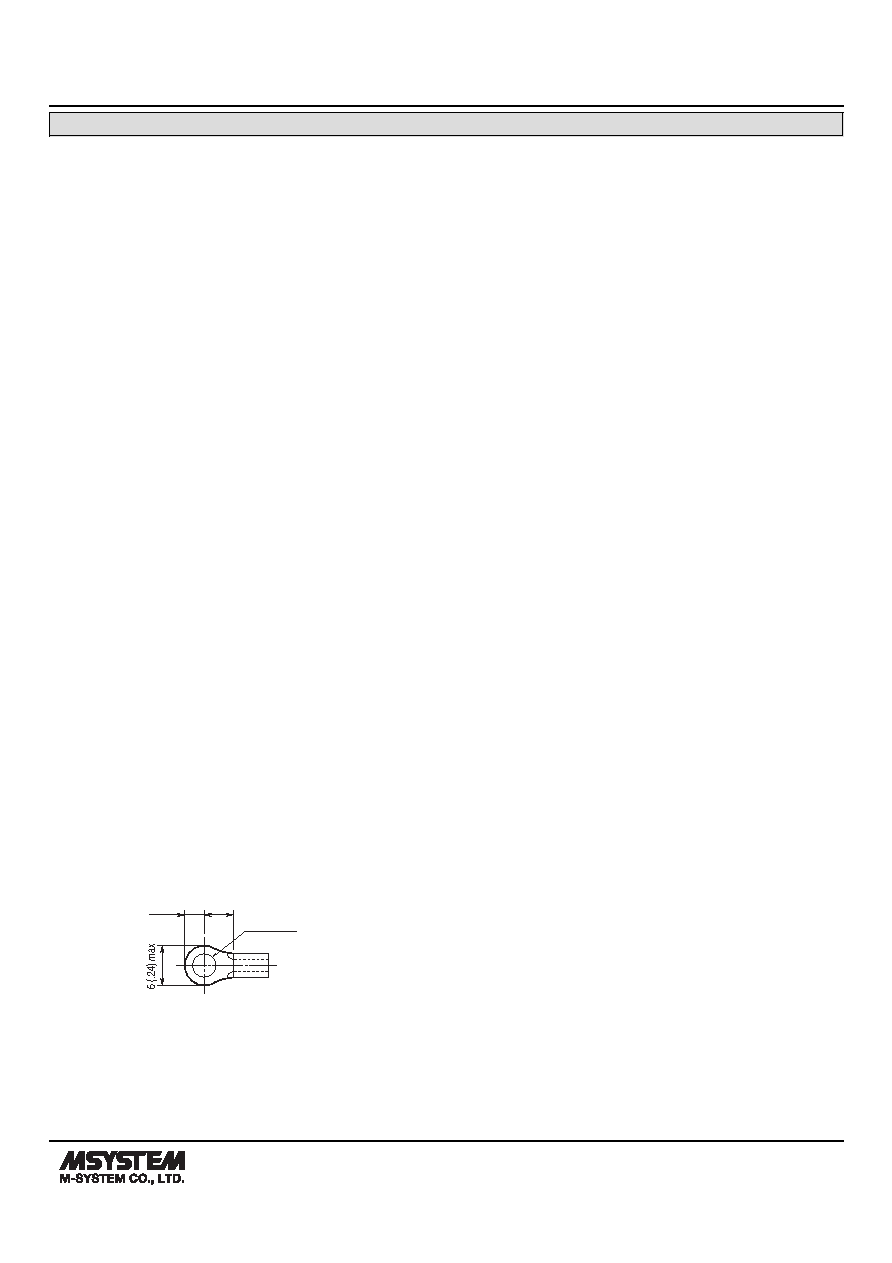

Recommended solderless terminal:

Applicable wire size: 0.25 to 1.65 mm2 (AWG 22 to 16)

Recommended manufacturer: Japan Solderless Terminal MFG.Co.Ltd, Nichifu Co.,ltd

4 (.16) min

3.2 (.13) dia.

mm (inch)

3.3 (.13) max
