15.1 GHz to 32 GHz, Tunable

Band-Pass Filter

Data Sheet

ADMV8432

Rev. A

Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityisassumedbyAnalogDevices foritsuse,norforanyinfringements ofpatents orother

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

©2019–2021 Analog Devices, Inc. All rights reserved.

Technical Support

www.analog.com

FEATURES

Amplitude settling time: 200 ns typical

Wideband rejection: ≥30 dB

Single chip implementation

40-lead, 6 mm × 6 mm, RoHS compliant LFCSP

APPLICATIONS

Test and measurement equipment

Military radar and electronic warfare (EW) systems

Video satellite (VSAT) communications

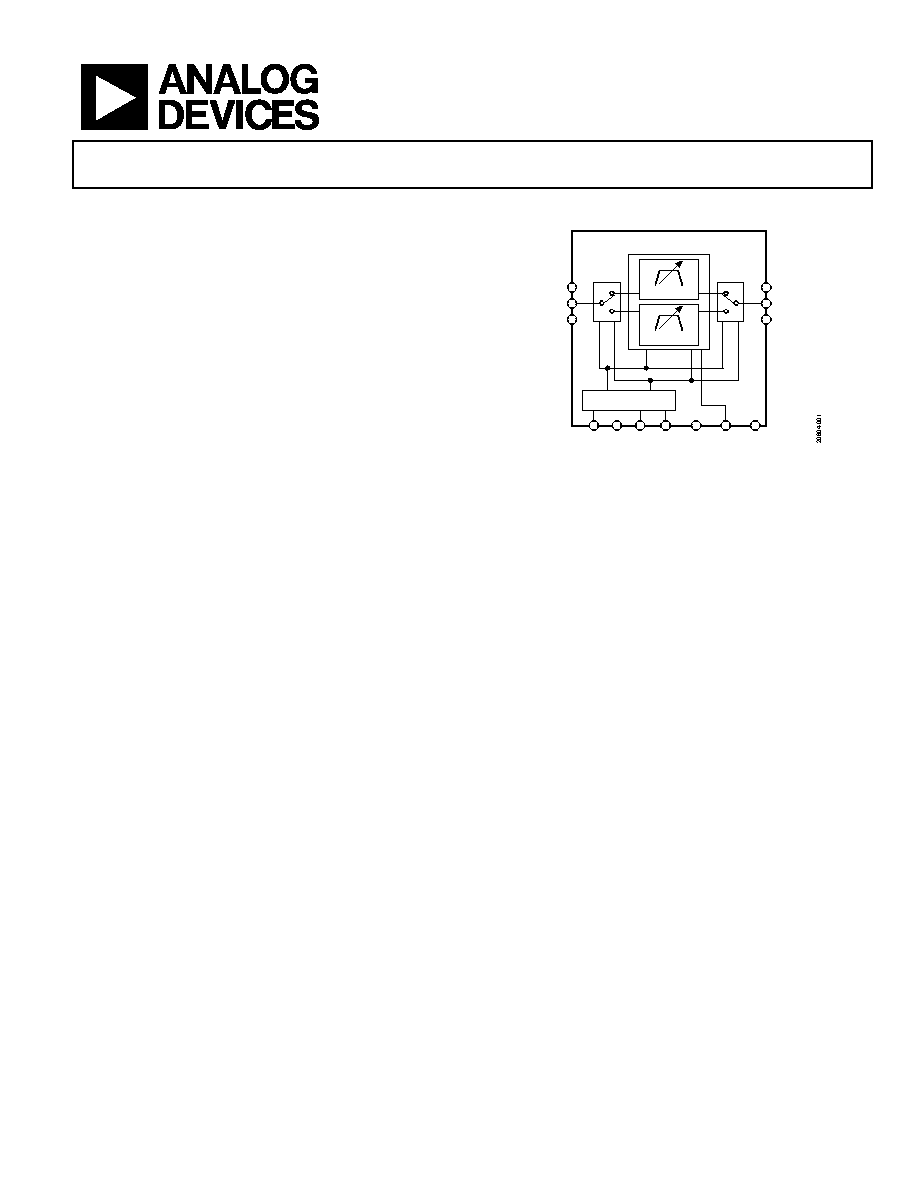

FUNCTIONAL BLOCK DIAGRAM

GND

RFOUT

GND

GND

RFIN

GND

LOW BAND

HIGH BAND

LEVEL SHIFTER

VEE GND

GND

GND

VDD VCTL

VTUNE

ADMV8432

Figure 1.

GENERAL DESCRIPTION

The ADMV8432 is a monolithic microwave integrated circuit

(MMIC), tunable band-pass filter that features a user selectable

pass-band frequency. The 3 dB filter bandwidth is >17% of the

between 16.6 GHz to 30.1 GHz by applying an analog tuning

voltage between 0 V to 15 V. The usable pass band corner

tunable filter can be used as a much smaller alternative to

physically large switched filter banks and cavity tuned filters.

This tunable filter has excellent microphonics due to the

monolithic design and provides a dynamically adjustable

solution in advanced communications applications.
