34 / 41 page

729

800-262-IDEC (4332) • USA & Canada

ø22mm - TW Series

Switches & Pilot Devices

1904032203

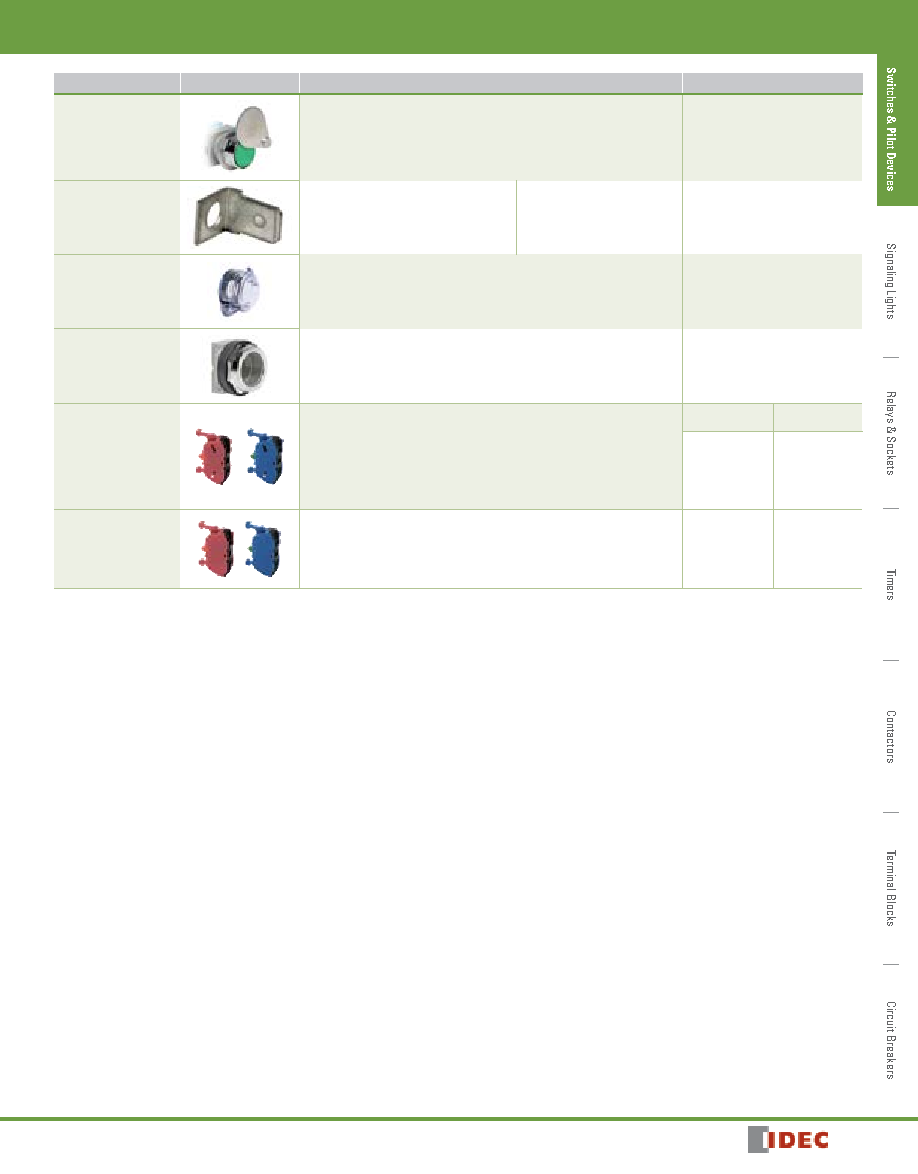

Item

Appearance

Description/Usage

Part Number

Metal Button Guard

Used on flush buttons to prevent inadvertent actuation

OLW-C

Terminal Tab Adaptor

Quick- connect terminals

#250 (17/64” x 3/64”) single tab

TW-FA4

Lock-out Adaptor

Used to provide lock-out protection for pushbuttons and knob selector switches:

• Up to Ø 40mm mushroom head size

(Padlock not included.)

Not applicable for e-stops.

HW9Z-KL1

22mm to 30mm Adaptor

Used to mount TW series control unit (except square units) Ø 7/8” (22mm) into a Ø

1-13/64” (30mm) panel cut-out.

TWN-A1R8

Contact Blocks

(with side entry)

These contacts are applicable for wires terminated by ring, fork,

not recommended for bare wire connections.

1NC

1NO

HW-U01

HW-U01-MAU

HW-U01R

HW-U01R-MAU

(with side entry)

HW-U10

HW-U10-MAU

HW-U10R

HW-U10R-MAU

(with side entry)

Contact Blocks

(without side entry)

These contacts are applicable for wires terminated by ring, fork, or ferule terminals,

and also bare wire connections.

HW-U01-F

HW-U01-MAU-F

HW-U01R-F

HW-U01R-MAU-F

(no side entry)

HW-U10-F

HW-U10-MAU-F

HW-U10R-F

HW-U10R-MAU-F

(no side entry)
