ø22mm - TW Series

Switches & Pilot Devices

734

www.IDEC.com

1904032203

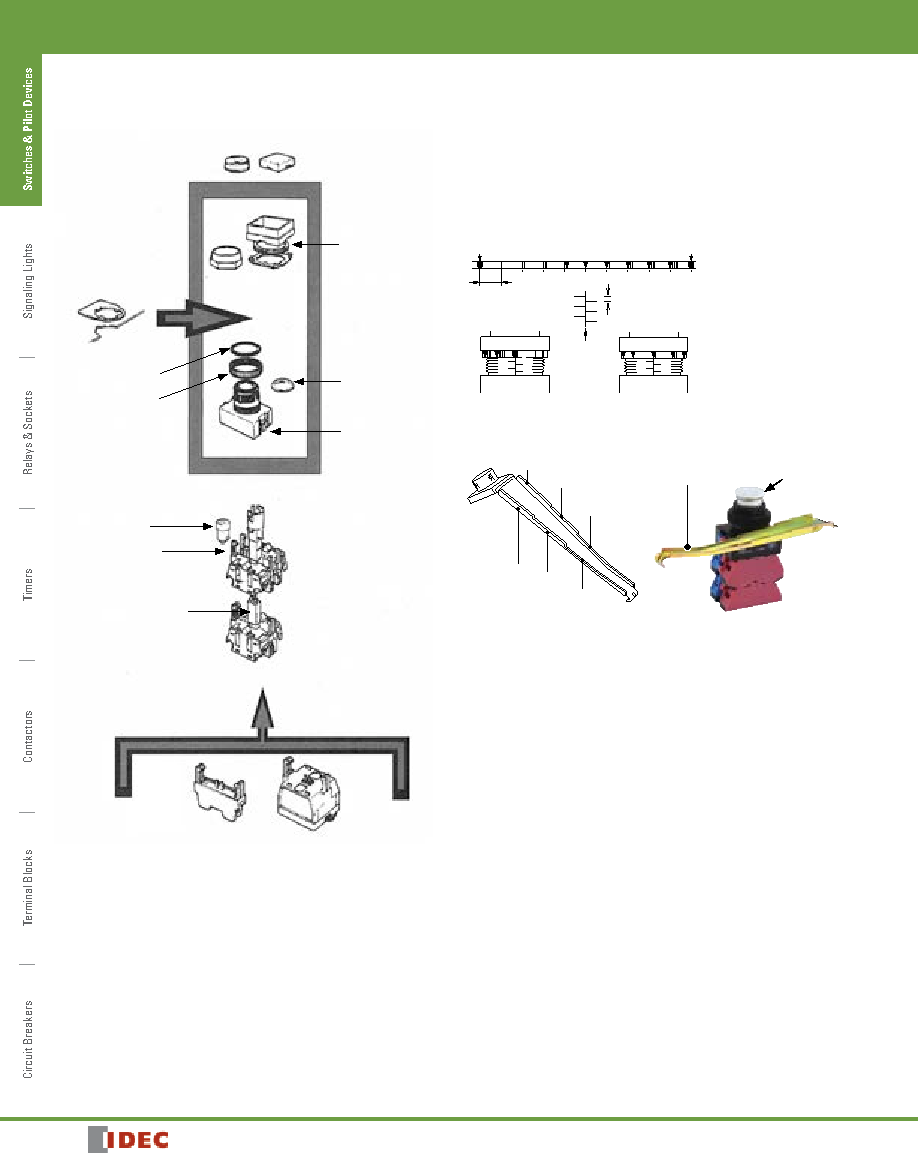

Component Construction and General Instructions — TW Series

Instructions for Switches and Pilot Devices

TW Series: Adjustment for Panel Thickness

The panel thickness ring provides adjustment from 0.04” to 0.24” (1 to 6mm)

in 0.004” (0.1mm) increments. Rotate the ring until the markings around the

periphery are aligned for the desired thickness, as shown below.

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Scale on Adjustment (in 0.1 mm)

0.1 mm

1 mm Panel Thickness Scale

(in 1 mm on the operator)

Ex. Panel thickness 2 mm

Ex. Panel thickness 2.6 mm

Note: When a nameplate

or an anti-rotation ring

is used, add 0.03”

(0.8mm) to the panel

thickness dimension.

An adjustment for panel thicknesses shown below can be made quickly by using

the contact block remover tool.

1.6mm

2.3mm

3.5mm

1mm

2mm

3.2mm

Contact Block Removal Tool

Panel Thickness

Adjustment Ring

Contact Block

Removal Tool

(TW-KC1)

Bezel

Option:

Nameplate

Operator

Waterproof Lens

(Round lens used on

square pushbuttons

and pilot lights only)

Base

Contact

Block

Full Voltage

Adaptor:

Full Size

Transformer:

Options

Lead

Holder

Lamp Holder

LED

Adjustment Ring

Panel Thickness

Waterproof

Gasket

(Panel)

Lens or Button
