ø22mm - TW Series

Switches & Pilot Devices

710

www.IDEC.com

1904032203

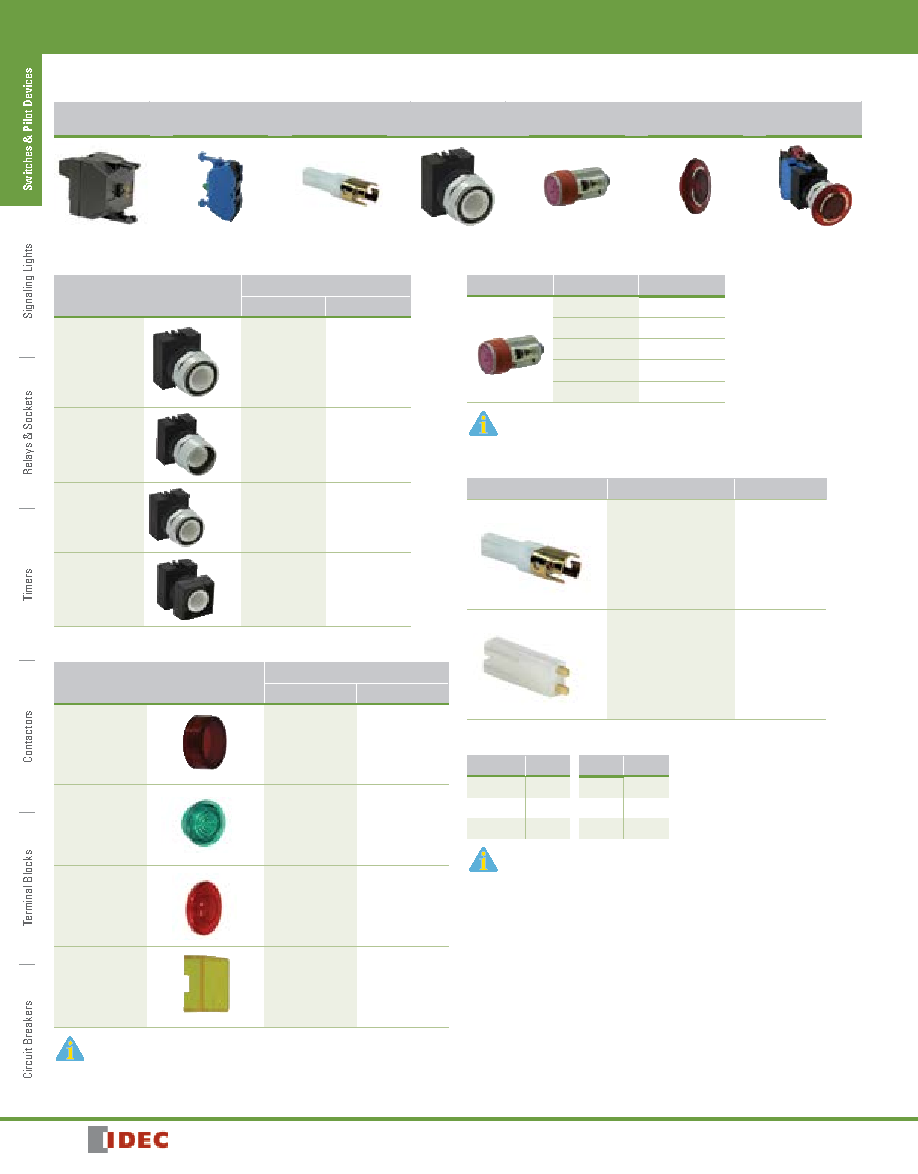

Illuminated Pushbuttons (Sub-Assembled)

Transformer/

Adaptor*

Contacts

Lamp Holder

Operator

Lamp

Lens

Complete Part

*Not applicable for full voltage units

Operators

Style

Part Number

Momentary

Maintained

Extended

ALW-0600

AOLW-0600

Extended with

Full Shroud

ALFW-0600

AOLFW-0600

ø29mm/ø40mm

Mushroom

ALW3-0600

AOLW3-0600

Square/Extended

ALQW-2B0600

AOLQW-2B0600

Lenses

Style

Part Number

Standard

Engravable

Round Extended

ALW2LU-k

ALW2BLU-k

ø 29mm

Mushroom Head*

ALW3LU-k

ALW3BLU-k

ø 40mm

Mushroom Head*

ALW4LU-k

ALW4BLU-k

Square Extended

—

ALQW2BLU-k

1. In place of k, specify the lens color code from table on the bottom right.

2. *Mushroom lens not available in yellow.

3. Standard lenses have ribbed pattern, Engravable lenses are smooth and include an

engravable insert.

Lamps

Style

Voltage

Part Number

LED

6V AC/DC

LSTD-6k

12V AC/DC

LSTD-1k

24V AC/DC

LSTD-2k

120V AC

LSTD-H2k

240V AC

LSTD-M4k

1. In place of k, specify the LED color code.

2. The LED contains a current-limiting resistor and a

protection diode.

Lamp Circuit Components

Style

Application

Part Number

Long Lamp Holder

Used with Full-size

Transformer and two

contact blocks

TW-LH2

Lead Holder

Used with TW-LH2

holder when using four

contact blocks and

transformer

HW-LH3

LED/Lens Color Codes

Color

Code

Color

Code

Amber

Blue

Green

White

Red

Yellow

Yellow LED not available. Use white LED.
