24 / 41 page

719

800-262-IDEC (4332) • USA & Canada

ø22mm - TW Series

Switches & Pilot Devices

1904032203

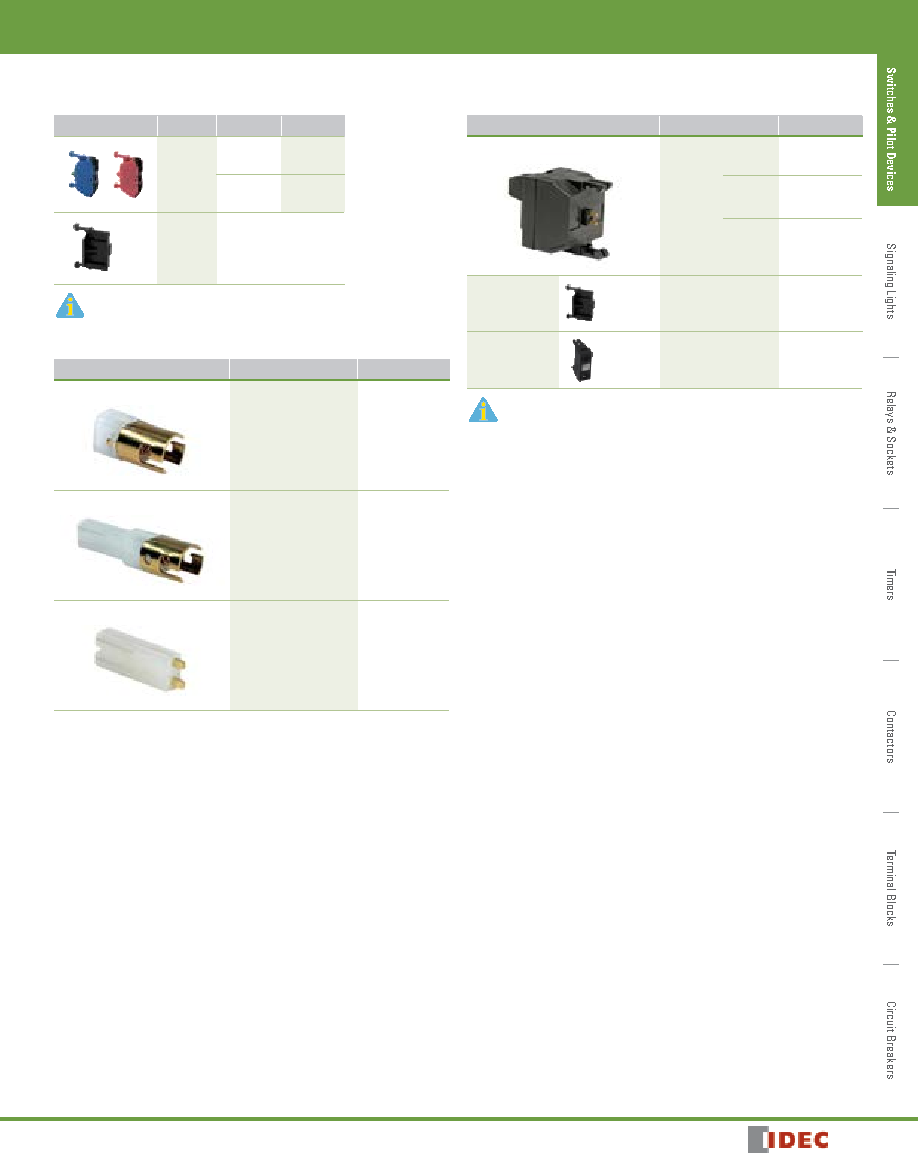

Illuminated Selector Switches (Sub-Assembled) continued

Contact Blocks

Style

Contacts

1NO

1NC

Finger-

Safe

Spring-Up

Terminal

HW-U10-F

HW-U01-F

HW-U10R-F

(early make)

HW-U01R-F

(late break)

Dummy

Block

HW-DB

1. Dummy blocks (no contacts) are used with an odd number of contact blocks.

2. Use of early and late break contacts creates a make before break function

Lamp Circuit Components

Style

Application

Part Number

Short Lamp Holder

Used with full voltage

adaptor and one contact

block

TW-LH1

Long Lamp Holder

Used with Full-size

Transformer and two

contact blocks

TW-LH2

Lead Holder

Used with TW-LH2

holder when using four

contact blocks and full

size transformer

HW-LH3

Transformers/Full Voltage Modules

Style

Description

Part Number

Full Size Transformer

Finger-Safe

120V AC

TW-F126B

240V AC

TW-F246B

480V AC

TW-F486B

Dummy Block with

Full Voltage Adaptor

For use

with odd

number of

contacts.

Finger-Safe

HW-DA1FBN

Full Voltage Adaptor

For use

with even

number of

contacts.

Finger-Safe

TW-DA1FB

All Transformers step down to 6V (use 6V lamp).
