Switching characteristics

VDD = 5 V, Tj = 25 °C, IO = 50 mA, RL = 60 Ω, CL = 10 pF, VL = 5 V, unless otherwise specified.

Table 5. Switching characteristics

Symbol

Parameter

Conditions

Min.

Typ.

Max.

Unit

tPLH1

SWx – OUTn

(OE just “0”)

Propagation delay time

(“L” to “H”)

VDD = 3.3 V

220

500

VDD = 5 V

200

500

tPLH2

OE - OUTn

(SWx just “1”)

Propagation delay time

(“L” to “H”)

VDD = 3.3 V

250

VDD = 5 V

100

250

tPHL1

SWx – OUTn

(OE just “0”)

Propagation delay time

(“H” to “L”)

VDD = 3.3 V

100

250

VDD = 5 V

100

250

tPHL2

OE - OUTn

(SWx just “1”)

Propagation delay time

(“H” to “L”)

VDD = 3.3 V

220

500

VDD = 5 V

220

500

tON

OUTn Current rise time.

Evaluated as OUTn falling time

VDD = 3.3 V

430

600

VDD = 5 V

400

600

tOFF

OUTn current fall time.

Evaluated as OUTn rising time

VDD = 3.3 V

430

600

VDD = 5 V

400

600

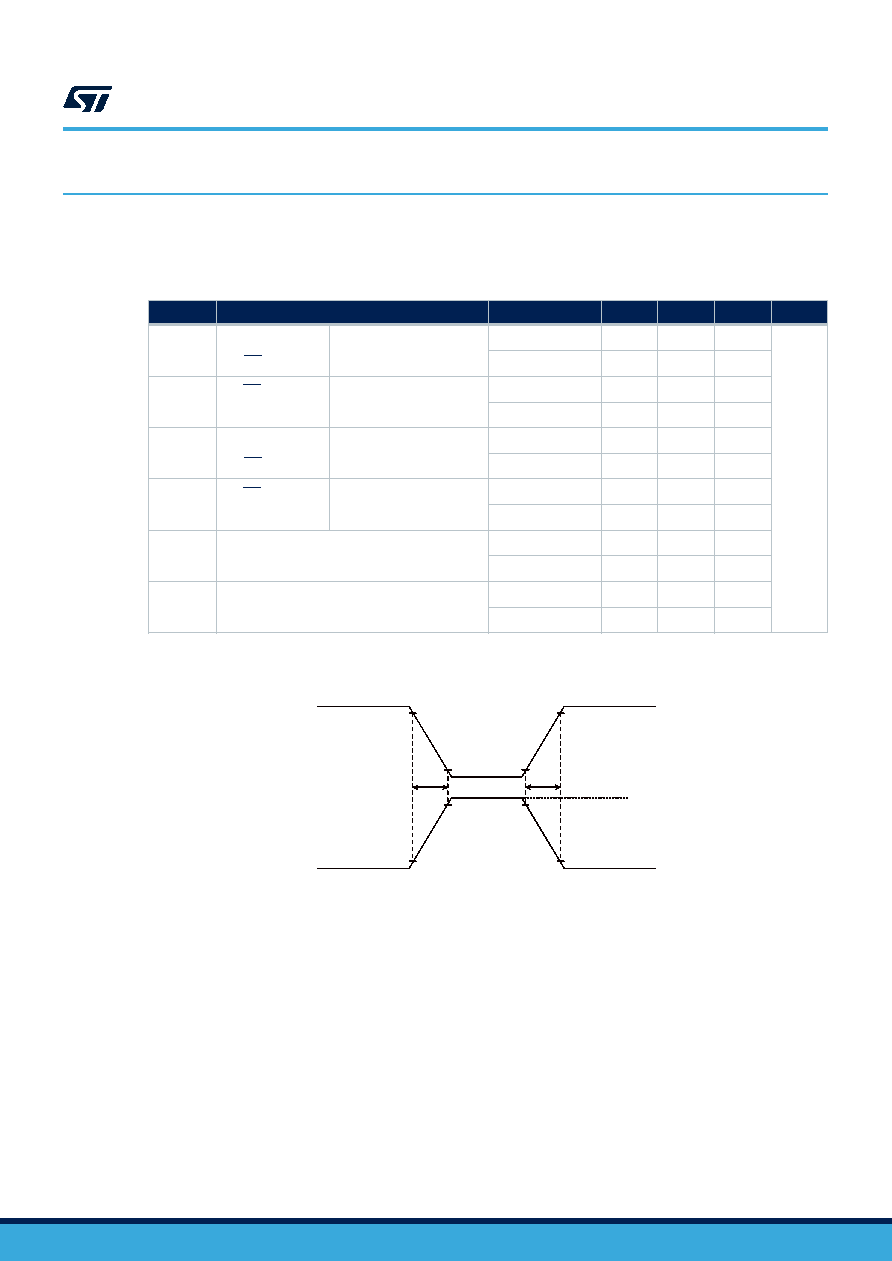

Figure 3. tON - tOFF time evaluation

OUTn

IOUTn

90%

10%

tON

tOFF

OFF

LED8102S

Switching characteristics

DS12963 - Rev 3

page 6/20
