STW5093 Datasheet(PDF) 21 Page - STMicroelectronics

Part # STW5093
Description  2.7V SUPPLY 14-BIT LINEAR CODEC WITH HIGH-PERFORMANCE AUDIO FRONT-END
PDF  34 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STW5093 Datasheet(HTML) 21 Page - STMicroelectronics

Back Button STW5093 Datasheet HTML 17Page - STMicroelectronics STW5093 Datasheet HTML 18Page - STMicroelectronics STW5093 Datasheet HTML 19Page - STMicroelectronics STW5093 Datasheet HTML 20Page - STMicroelectronics STW5093 Datasheet HTML 21Page - STMicroelectronics STW5093 Datasheet HTML 22Page - STMicroelectronics STW5093 Datasheet HTML 23Page - STMicroelectronics STW5093 Datasheet HTML 24Page - STMicroelectronics STW5093 Datasheet HTML 25Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 34 page
background image
21/34
STW5093

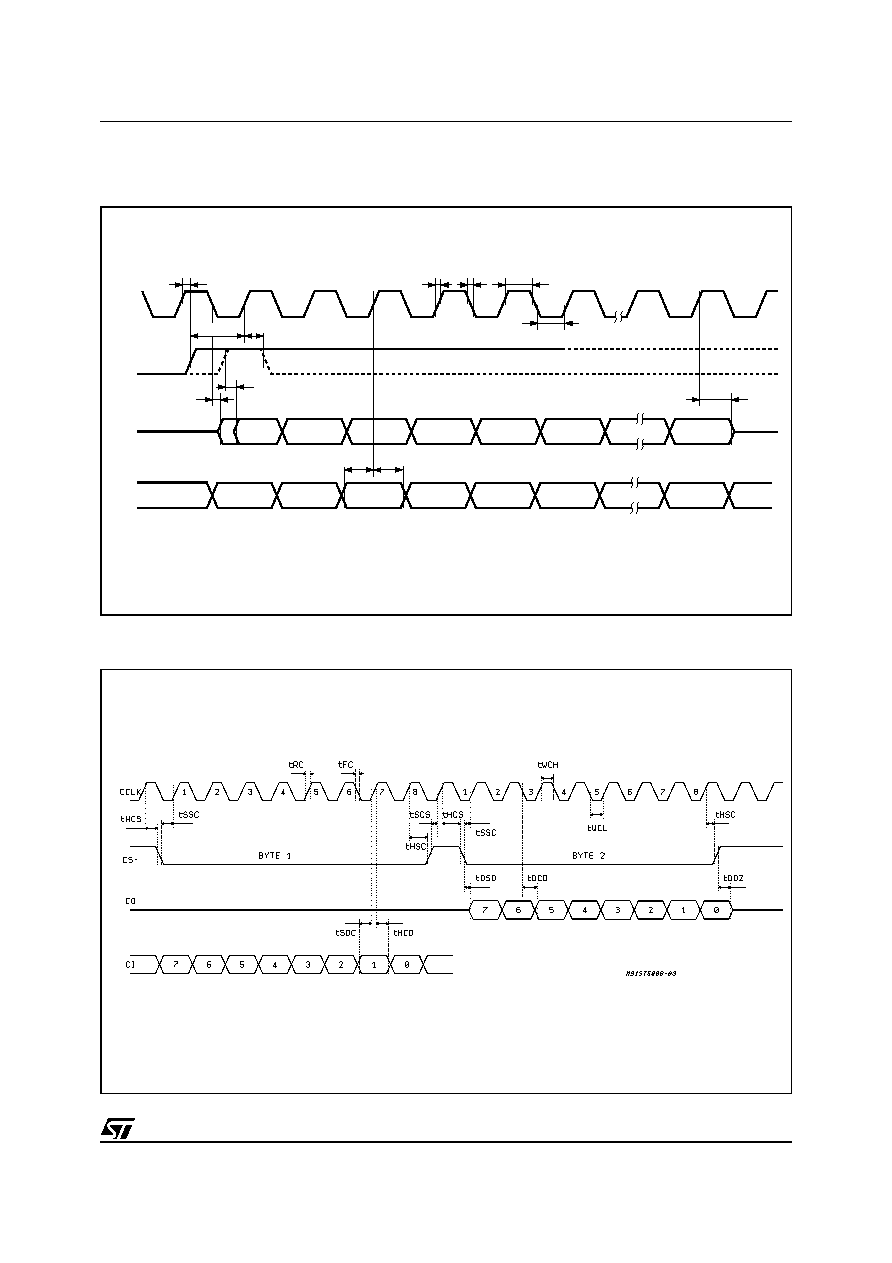

TIMING DIAGRAM
Figure 4. Non Delayed Reverse Data Timing Mode (*
(*) In the case of companded code the timing is applied to 8 bits instead of 16 bits.
Figure 5. Serial Control Timing (MICROWIRE MODE)
1234567
16
17
tHMFR
MCLK
tRM
tFM
tWMM
tWML
tHMFR
tSFMR
123456
7
16
tDMDR
tDFD
FS
DX
tDMZR
123456
7
16
tSDM
tHMDR
DR
D93TL076A
