ADA4302-4
Rev. B | Page 6 of 12

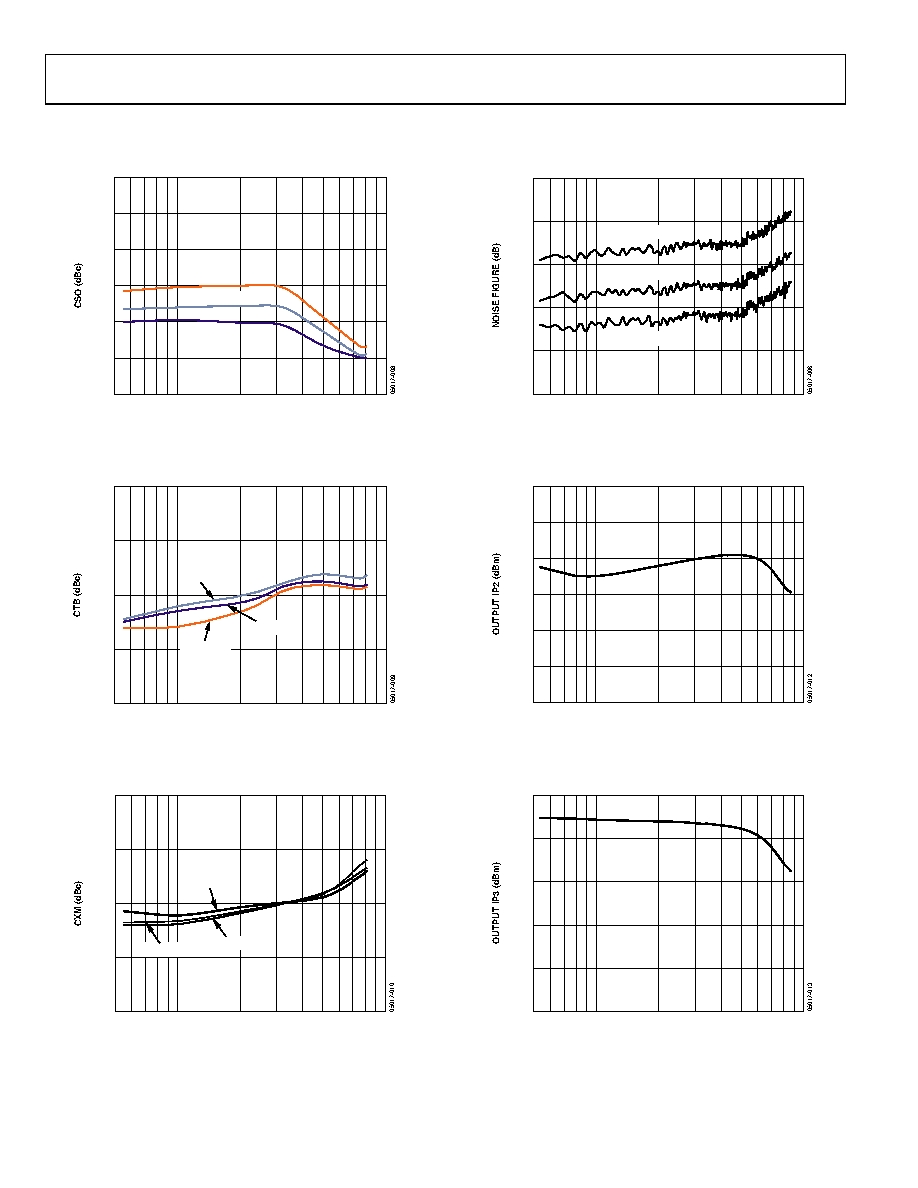

TYPICAL PERFORMANCE CHARACTERISTICS
FREQUENCY (MHz)
–55
–85
50
1000
–70
100
–60
–65
–75
–80
TA = +85°C
TA = –40°C
TA = +25°C
Figure 4. Composite Second-Order (CSO) vs. Frequency
FREQUENCY (MHz)
–55
–75
50
1000
100
–60
–65
–70
TA = +25°C
TA = +85°C
TA = –40°C
Figure 5. Composite Triple Beat (CTB) vs. Frequency
FREQUENCY (MHz)
–55
–60
–70
–65
–75
50
100
1000
TA = –40°C
TA = +85°C
TA = +25°C
Figure 6. Cross Modulation (CXM) vs. Frequency
FREQUENCY (MHz)
7
6
5
4
3
2
50
100
1000
TA = +85°C
TA = +25°C
TA = –40°C
Figure 7. Noise Figure vs. Frequency
FREQUENCY (MHz)
90
70
80
40
50
60
30
50
100
1000
Figure 8. Output IP2 vs. Frequency
FREQUENCY (MHz)
25
20
5
10
15
0
50
100
1000
Figure 9. Output IP3 vs. Frequency
