ADA4302-4

Rev. B | Page 7 of 12

FREQUENCY (MHz)

–5

–10

–15

–20

100

10000

1000

TA = +85°C

TA = +25°C

TA = –40°C

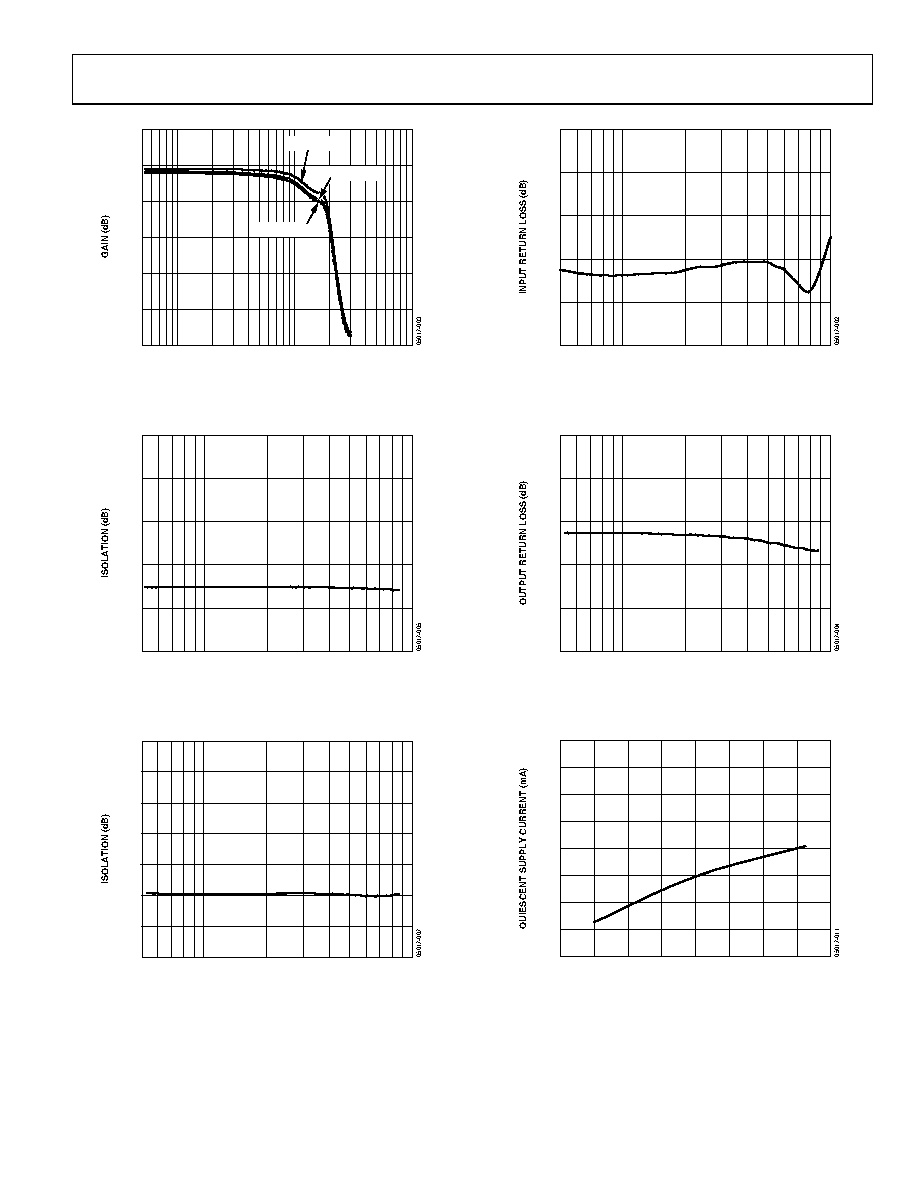

Figure 10. AC Response (S21)

FREQUENCY (MHz)

–10

–20

–30

–40

–50

100

1000

Figure 11. Output-to-Input Isolation vs. Frequency (S12)

FREQUENCY (MHz)

–10

–5

–15

–20

–25

–30

–35

100

1000

Figure 12. Output-to-Output Isolation vs. Frequency

FREQUENCY (MHz)

–5

–10

–15

–20

–25

100

1000

Figure 13. Input Return Loss vs. Frequency (S11)

FREQUENCY (MHz)

–5

–10

–15

–20

–25

100

1000

Figure 14. Output Return Loss vs. Frequency (S22)

TEMPERATURE (

°C)

240

235

210

205

220

215

225

230

200

–60

–40

–20

100

Figure 15. Quiescent Supply Current vs. Temperature
