Data Sheet
ADP1763
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 8 of 22
VIN = 1.5 V, VOUT = 1.3 V, TA = 25°C, unless otherwise noted.

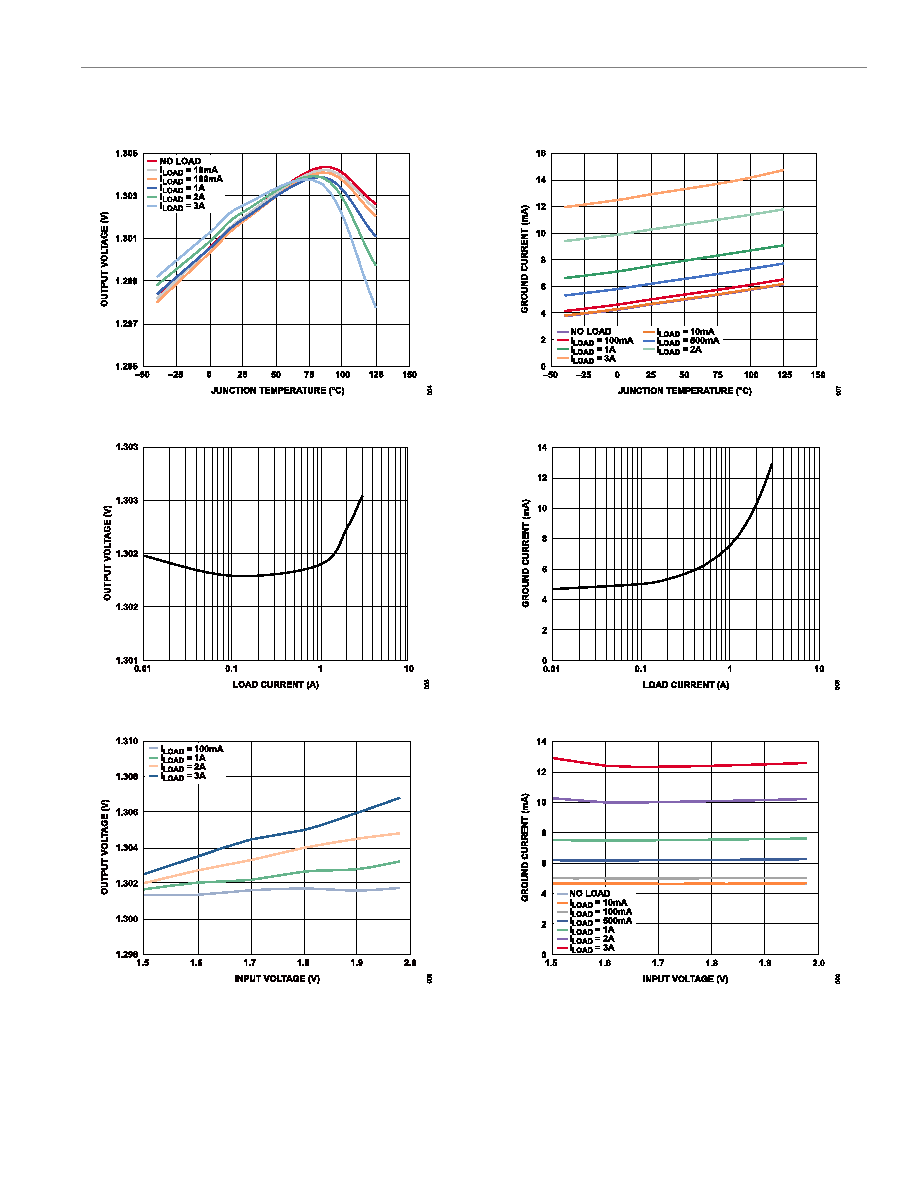

Figure 4. Output Voltage (VOUT) vs. Junction Temperature (TJ)
Figure 5. Output Voltage (VOUT) vs. Load Current (ILOAD)
Figure 6. Output Voltage (VOUT) vs. Input Voltage (VIN)
Figure 7. Ground Current (IGND) vs. Junction Temperature (TJ)
Figure 8. Ground Current (IGND) vs. Load Current (ILOAD)
Figure 9. Ground Current (IGND) vs. Input Voltage (VIN)
