AD4058BCPZ-R2 Datasheet(PDF) 13 Page - Analog Devices

Part # AD4058BCPZ-R2
Description  Compact, Low Power, 16-Bit, 2 MSPS/500 kSPS Easy Drive SAR ADC
PDF  66 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

AD4058BCPZ-R2 Datasheet(HTML) 13 Page - Analog Devices

Back Button AD4058BCPZ-R2 Datasheet HTML 9Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 10Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 11Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 12Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 13Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 14Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 15Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 16Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 66 page
background image
Data Sheet
AD4052/AD4058
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 13 of 66

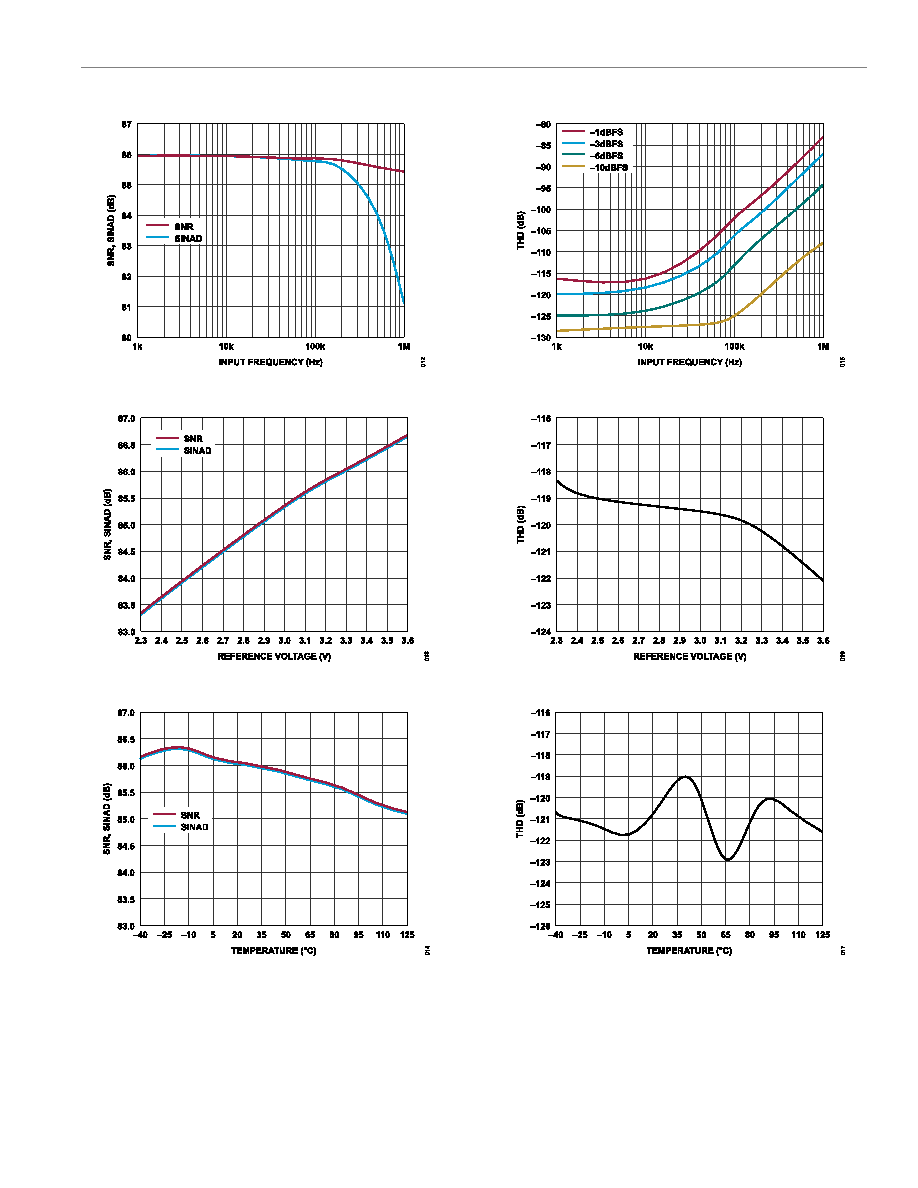

Figure 12. SNR, SINAD vs. Input Frequency
Figure 13. SNR, SINAD vs. Reference Voltage
Figure 14. SNR, SINAD vs. Temperature
Figure 15. THD vs. Input Frequency and Amplitude
Figure 16. THD vs. Reference Voltage
Figure 17. THD vs. Temperature
