AD4058BCPZ-R2 Datasheet(PDF) 16 Page - Analog Devices

Part # AD4058BCPZ-R2
Description  Compact, Low Power, 16-Bit, 2 MSPS/500 kSPS Easy Drive SAR ADC
PDF  66 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

AD4058BCPZ-R2 Datasheet(HTML) 16 Page - Analog Devices

Back Button AD4058BCPZ-R2 Datasheet HTML 12Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 13Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 14Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 15Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 16Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 17Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 18Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 19Page - Analog Devices AD4058BCPZ-R2 Datasheet HTML 20Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 66 page
background image
Data Sheet
AD4052/AD4058
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 16 of 66

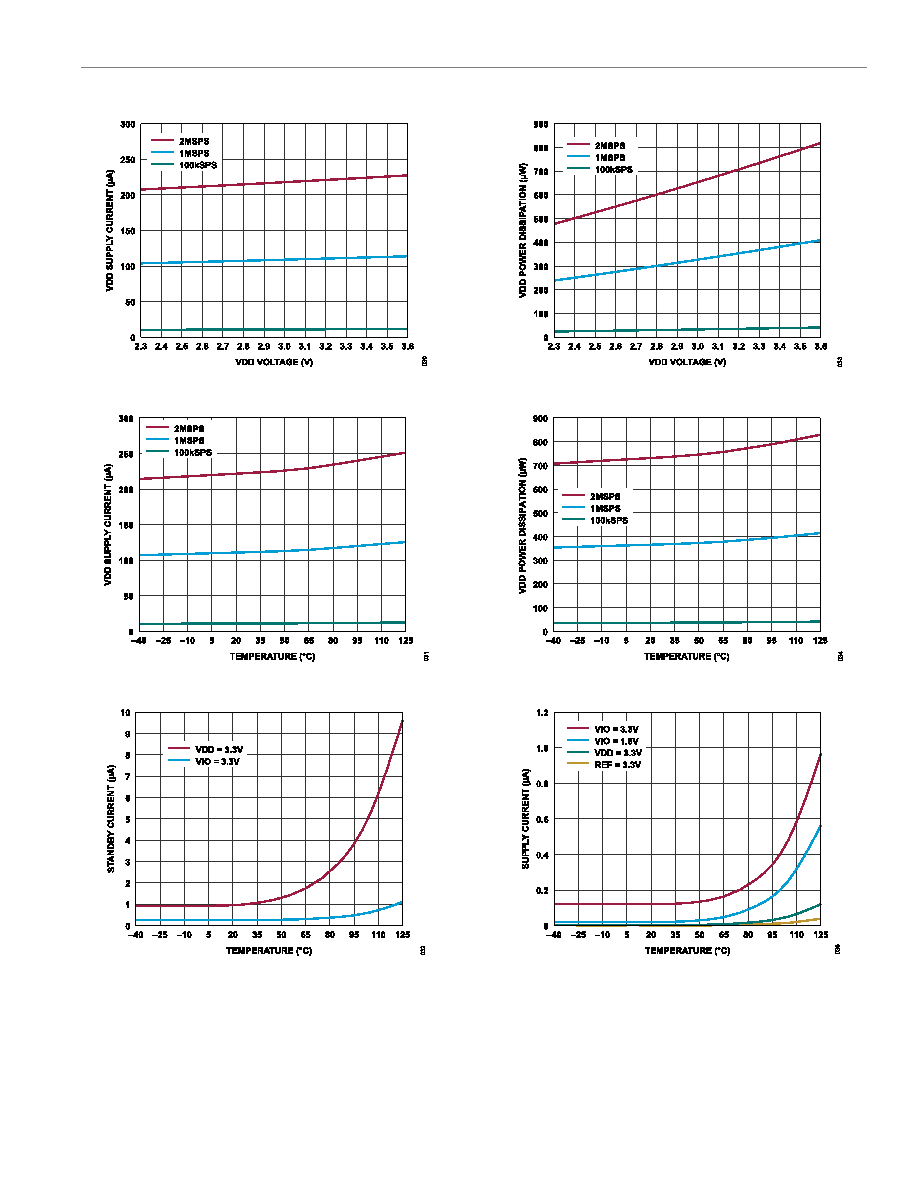

Figure 30. VDD Supply Current vs. VDD Voltage (Autonomous Modes)
Figure 31. VDD Supply Current vs. Temperature (Autonomous Modes)
Figure 32. Standby Current vs. Temperature
Figure 33. VDD Power Dissipation vs. VDD Voltage (Autonomous Modes)
Figure 34. VDD Power Dissipation vs. Temperature (Autonomous Modes)
Figure 35. Supply Current (Sleep Mode) vs. Temperature
