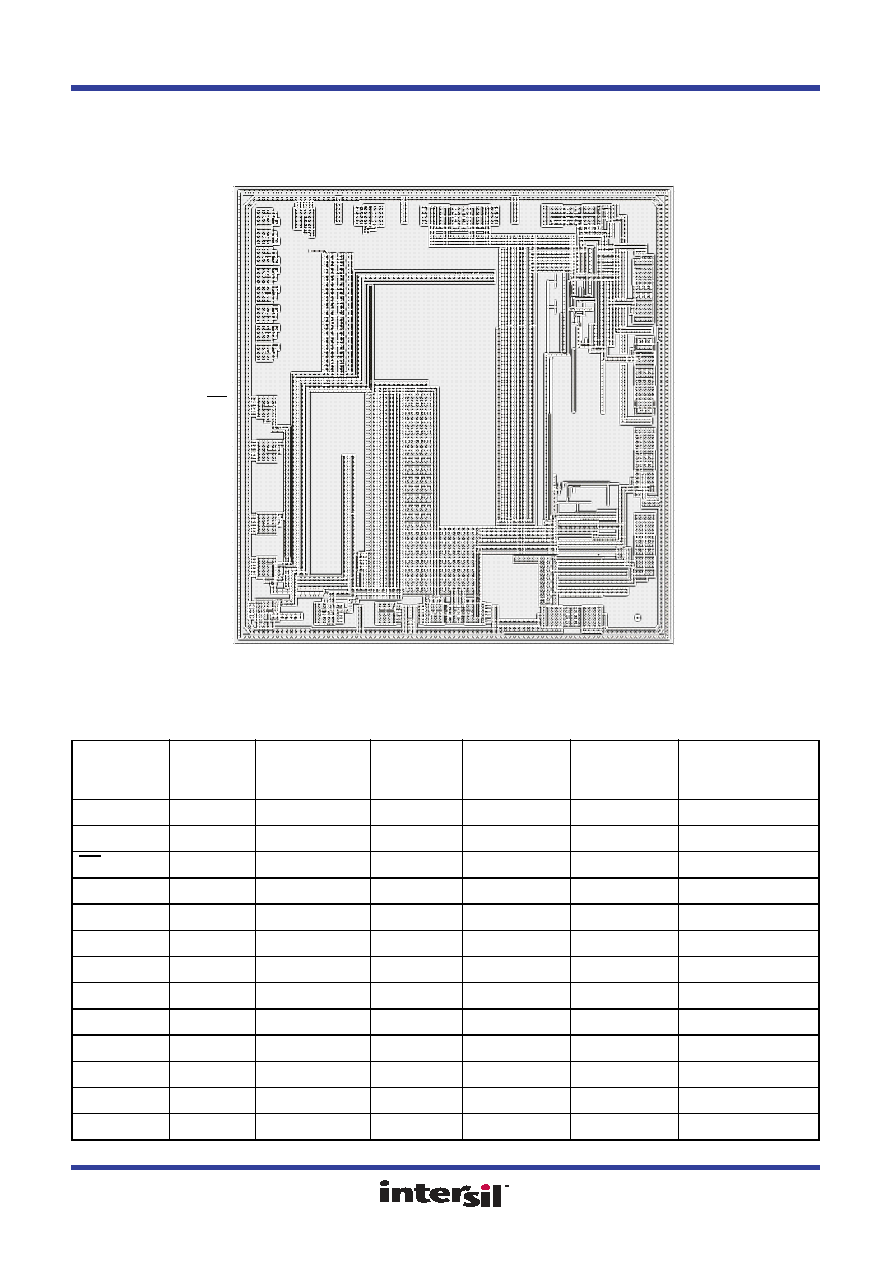

R34DS0017EU0104 Rev.1.04
Page 35
Jan 31, 2025
ISL73041SEH Datasheet
8.1
Metalization Mask Layout
Table 3. Layout X-Y Coordinates (Centroid of Bond Pad)[1]
Pad Name
Pad
Number[2]
X Coordinate
(µm)
Y
Coordinate
(µm)
Pad X
Dimension
(µm)
Pad Y
Dimension
(µm)
Bond Wire Diameter
(0.001”)
EN
1
842.5
2529.14
110
110
1.25
PWM
2
413.46
2510.55
110
110
1.25
FLT
3
177.54
1384.83
110
110
1.25
RDU
4
177.54
1124.81
110
110
1.25
RDL
5
177.54
690.56
110
110
1.25
AVCC
6
177.54
430.56
110
110
1.25
VDD
7
539.75
154.86
110
110
1.25
FB
8
918.37
154.86
110
110
1.25
PVCC
9 (a)
1220.02
154.86
110
110
1.25
PVCC
9 (b)
1475.02
154.86
110
110
1.25
PGND
10 (a)
1954.00
134.50
110
110
1.25
PGND
10 (b)
2204.00
134.50
110
110
1.25
LGL
11 (a)
2529.14
438.13
110
110
1.25
EN
PWM
FLT
RDU
RDL
AVCC
VDD
FB
SGND
PVCC PVCC
PGND PGND
LGL
LGL
LGH
LGH
PHS
PHS
UGL
UGL
UGH
UGH
BOOT
BOOT
