AD8223AR-R7 Datasheet(PDF) 12 Page - Analog Devices

Part # AD8223AR-R7
Description  Single Supply, Rail-to-Rail, Low Cost Instrumentation Amplifier
PDF  20 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

AD8223AR-R7 Datasheet(HTML) 12 Page - Analog Devices

Back Button AD8223AR-R7 Datasheet HTML 8Page - Analog Devices AD8223AR-R7 Datasheet HTML 9Page - Analog Devices AD8223AR-R7 Datasheet HTML 10Page - Analog Devices AD8223AR-R7 Datasheet HTML 11Page - Analog Devices AD8223AR-R7 Datasheet HTML 12Page - Analog Devices AD8223AR-R7 Datasheet HTML 13Page - Analog Devices AD8223AR-R7 Datasheet HTML 14Page - Analog Devices AD8223AR-R7 Datasheet HTML 15Page - Analog Devices AD8223AR-R7 Datasheet HTML 16Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 20 page
background image
AD8223
Preliminary Technical Data
Rev.
PrA | Page 12 of 20
2
G = 100
G = 5
G = 10
10µs/DIV
20mV/DIV

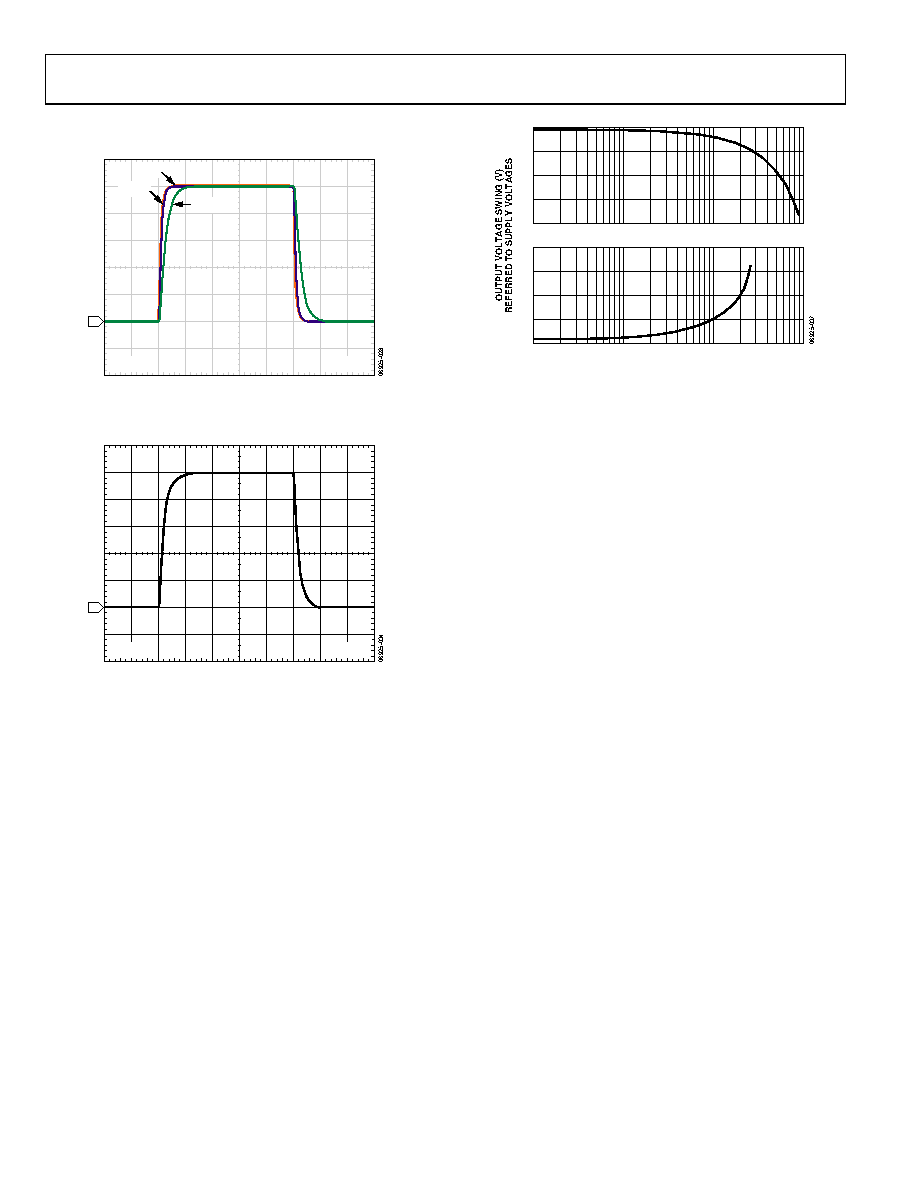

Figure 26. Small Signal Pulse Response, G = 5, 10, 100; RL = 10 kΩ
2
100µs/DIV
20mV/DIV
Figure 27. Small Signal Pulse Response, G = 1000, RL = 25 kΩ, CL = 100 pF
0.01
0.1
1
10
IOUT (mA)
–VS
1
2
–2
–1
+VS
Figure 28. Output Voltage Swing vs. Output Current
