Data Sheet

ADRF5440

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 12 of 18

INPUT POWER COMPRESSION AND THIRD-ORDER INTERCEPT

VDD = 3.3V, VSS = −3.3V, V1 = V2 = 0V or VDD, and TCASE = 25°C for a 50Ω system, unless otherwise noted. The large signal performance

parameters are measured on a connectorized board.

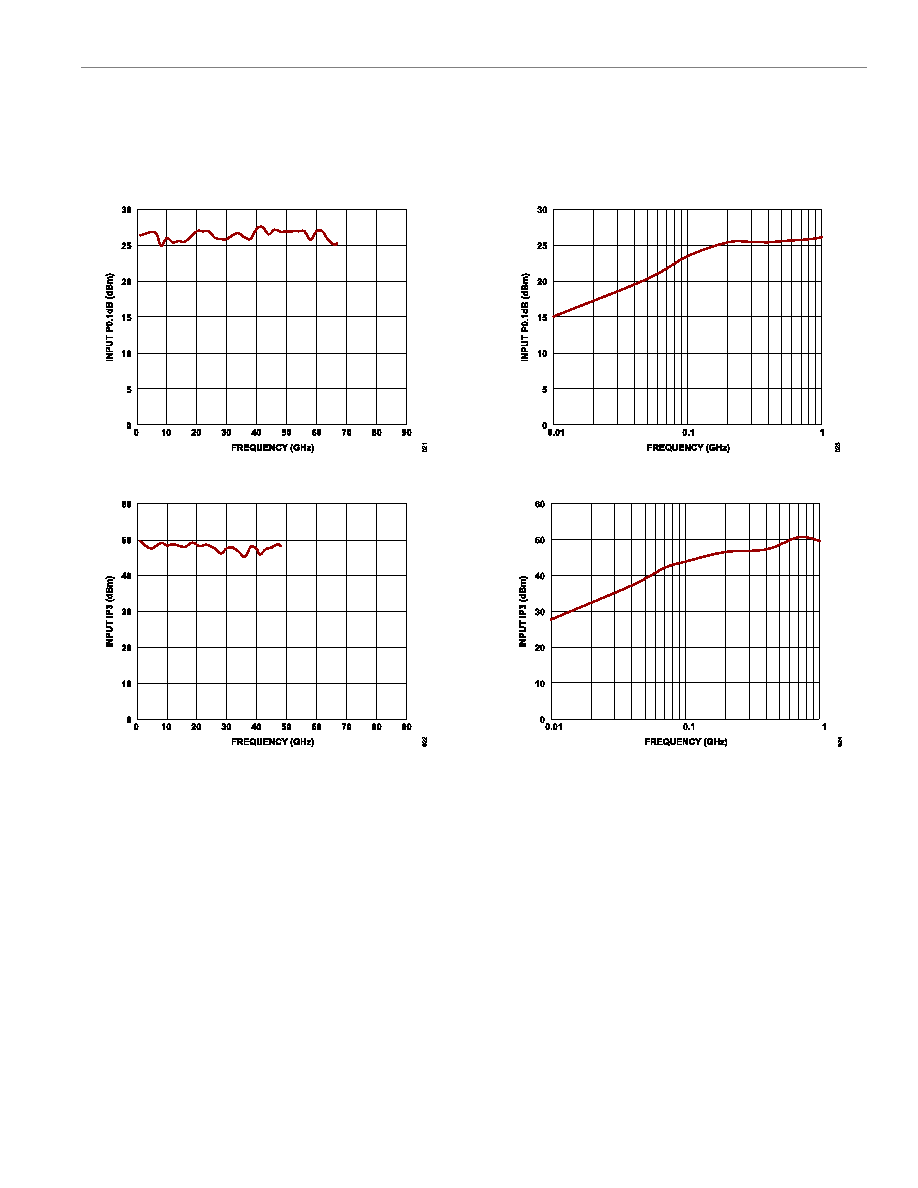

Figure 21. Input P0.1dB vs. Frequency

Figure 22. Input IP3 vs. Frequency

Figure 23. Input P1dB vs. Frequency (Low Frequency Detail)

Figure 24. Input IP3 vs. Frequency (Low Frequency Detail)
