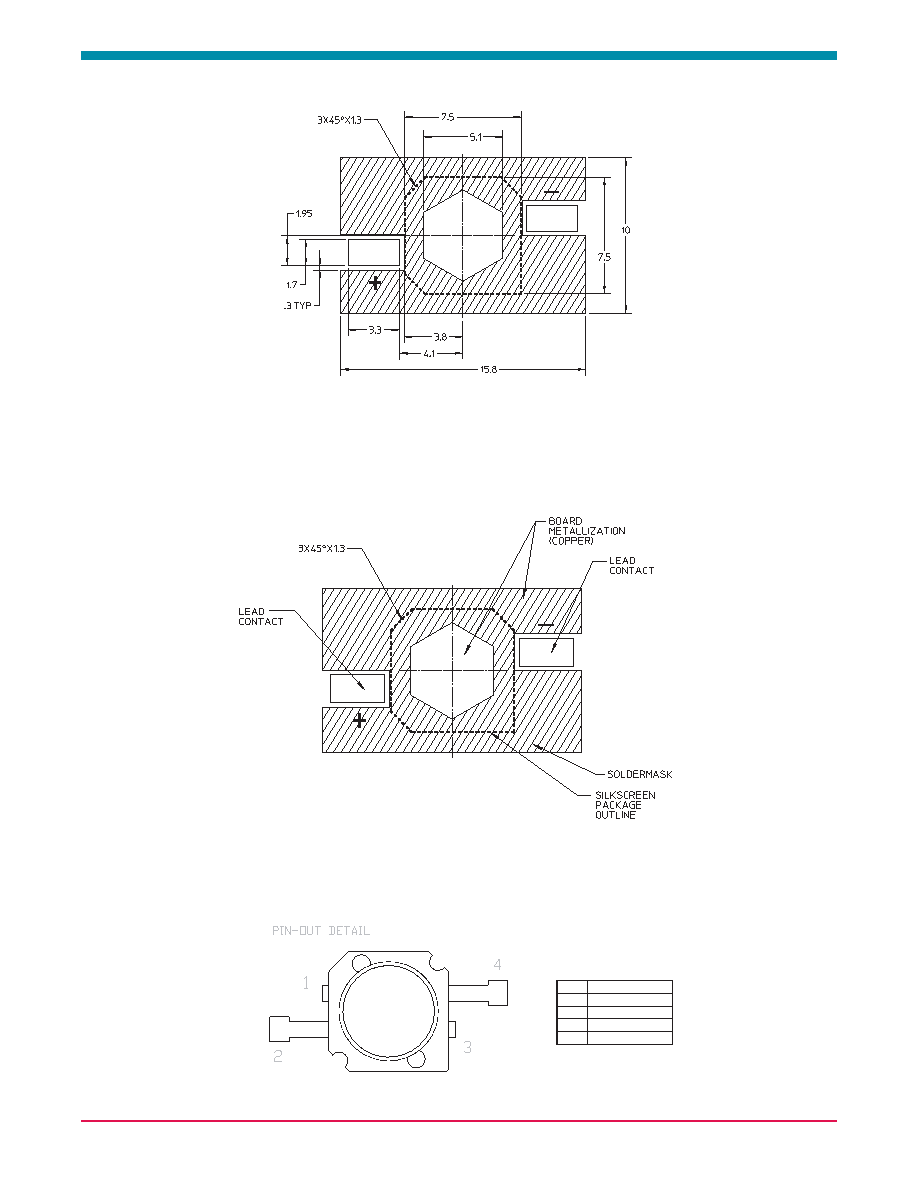

Solder Pad Design—2Lead Gullwing
Notes for Figure 6:
1.
Electrical isolation is required between signal leads and hexagonal heat slug contact.
2.
For optimal thermal performance, maximize board metallization at hexagonal heat slug contact.
Solder Pad Layout—2Lead Gullwing
Pin Out Diagram—Gullwing Form
LUXEON K2 Datasheet DS51 (7/07)
16
Figure 6. 2Lead Gullwing Package Solder Pad Layout.
Figure 7. Solder Pad Layout 2Lead Gullwing.
Figure 8. 2Lead Gullwing Pin Out Diagram.
PIN
FUNCTION
1
NC (TRIMMED)
2
ANODE
3
NC (TRIMMED)
4
CATHODE
