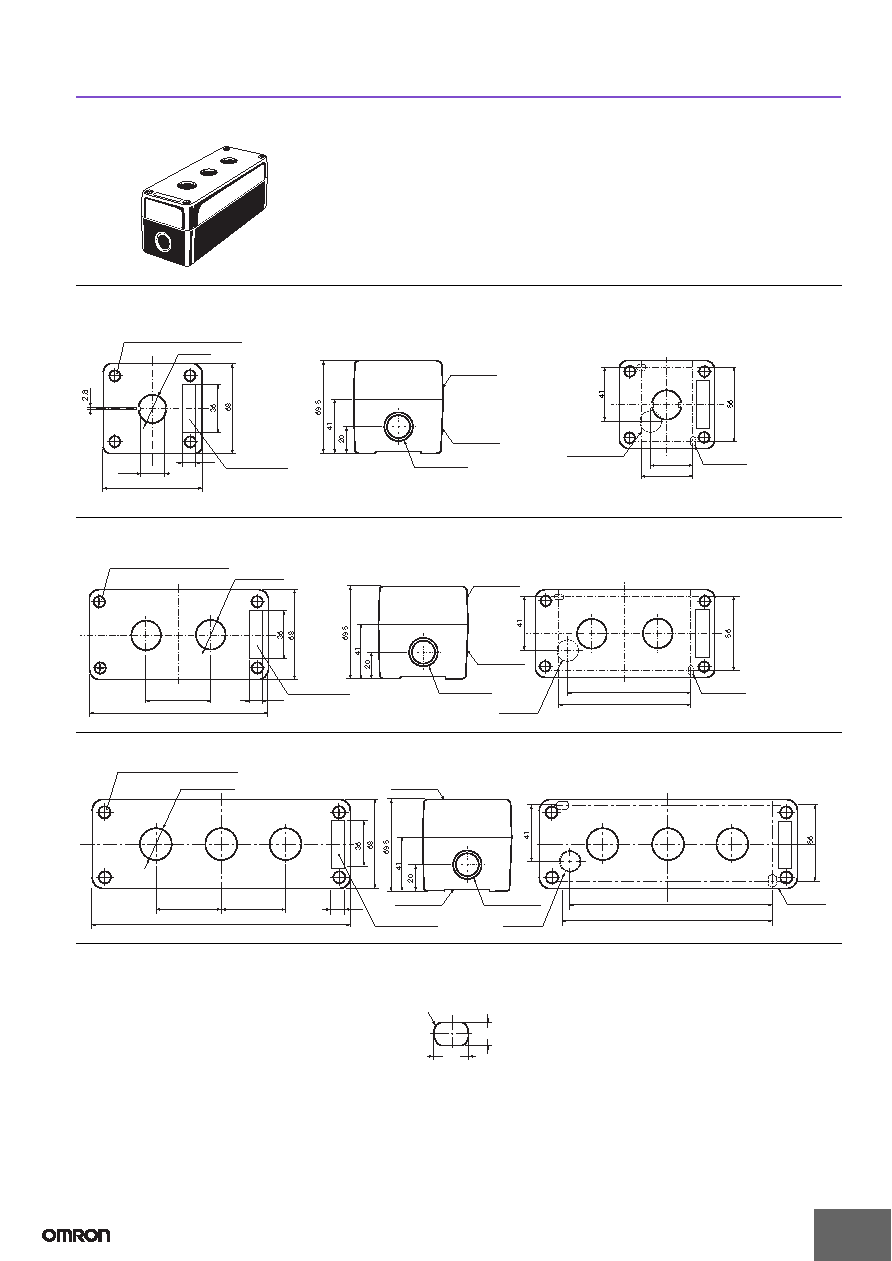

21 / 30 page  A22 21 Dimensions (Unit: mm) Control Box (Enclosure) A22Z-B10 @ 20.5 22.1 dia. (10x36) 0.6-mm concave surface (Lead cable hole) Two, 21 dia. 10 75 Case (black) Cover (*) Four, M4 Phillips binding screws (Lead cable hole) Two mounting holes 16 ±1 dia. 32 39 A22Z-B101 (One Hole) A22Z-B101Y Cable Port Hole (Top View) * A22Z-B101: gray A22Z-B101Y: yellow 16 ±1 dia (10x36) 0.6-mm concave surface (Lead cable hole) (Lead cable hole) Two mounting holes 21 dia. Two, 22.1 dia. 94 101 10 137 50 Case (black) Cover (gray) Four, M4 Phillips binding screws A22Z-B102 (Two Holes) Cable Port Hole (Top View) 10 199 50 50 163 156 16 ±1 dia (10x36) 0.6-mm concave surface (Lead cable hole) (Lead cable hole) Two mounting holes 21 dia. Three, 22.1 dia. Case (black) Cover (gray) Four, M4 Phillips binding screws A22Z-B103 (Three Holes) Cable Port Hole (Top View) 6.3 4.3 3R (Panel Mounting Hole) |
|
