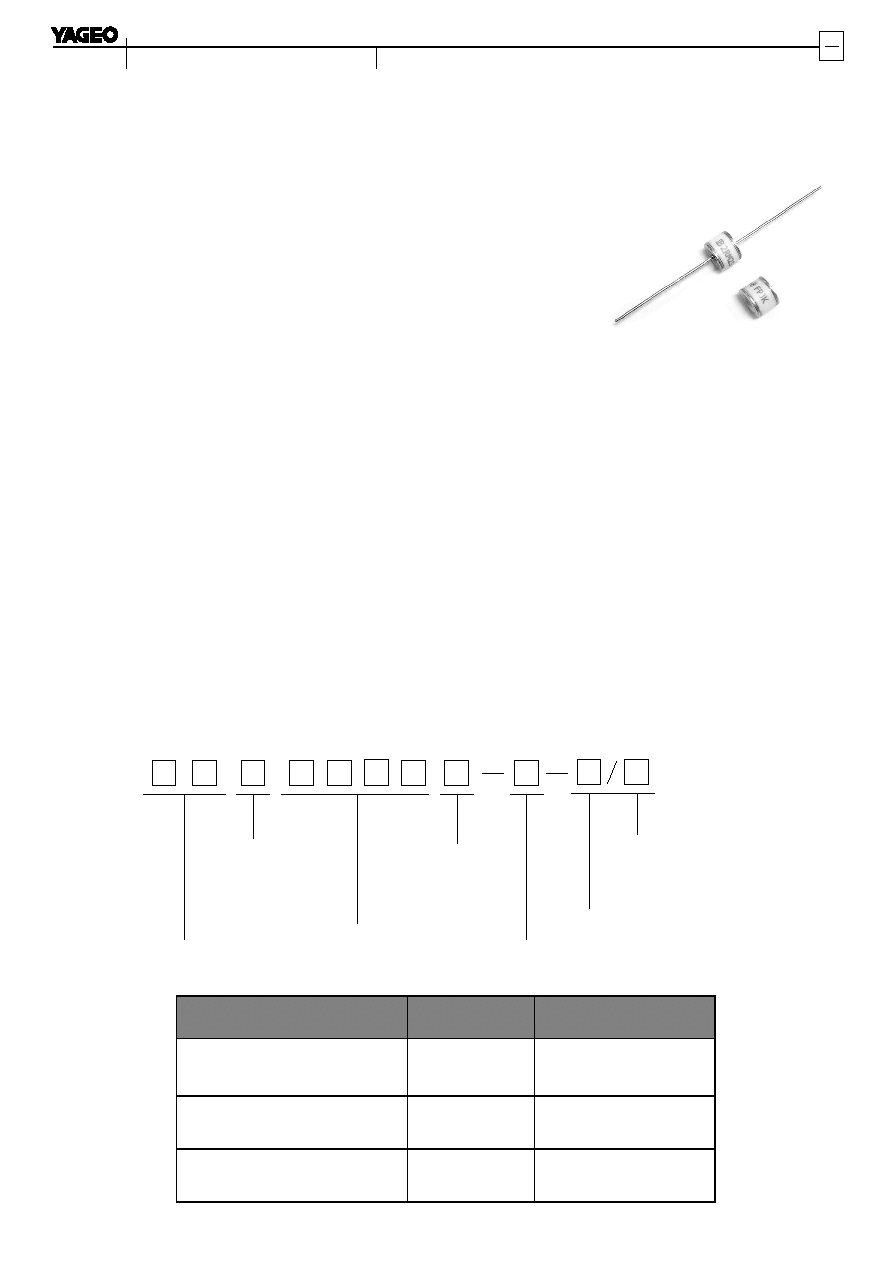

Product Specification

2R-8x6(T6) series

GAS DISCHARGE TUBS

Circuit Protection

Gas Discharge Tube (GDT) Data Sheet

Features

■ Provide ultra-fast response to surge voltage from slow-rising

surge of100V/s to rapid-rising surge of 1KV/

μs

■ Stable breakdown voltage

■ High insulation resistance

■ Low capacitance (

≤1.5pF)

■ High holdover voltage

■ Large absorbing transient current capability

■ Micro-Gap Design

■ Size: 8.0mm*6.0mm

■ Storage and operating temperature: -40℃ ~ +85℃

■ Meets MSL level 1, per J-STD-020

■ Safety certification: UL

Applications

■ Repeaters, Modems

■ Telephone Interface, Line cards

■ Data communication equipment

■ Line test equipment

Part Number Code

2

R

Electrical

Characteristics

M: 10KA

L: 5KA

DC

Spark-over

Voltage

Lead Type

L: Lead

M: SMD

Dimensions

8: 8.0mm×6.0mm

Electrode Numbers

2R: 2 Electrodes

8

T6: Internal Control Code

Packing Code

B : Box package

TR: Tape & Reel package

Ordering Code

Lead type

Package

2RMXXXL-8-D1//B

2RLXXXL-8-D1/B

Lead

Box(Tray)

2RMXXXL-8-D1/TR

2RLXXXL-8-D1/TR

Lead

Tape & Reel

2RMXXXM-8-D1/TR

2RLXXXM-8-D1/TR

SMD

Tape & Reel
