2RMDCL-8T6SLASHTR datasheet(3/6 Pages) YAGEO

3 / 6 page

Product Specification

2R-8x6(T6) series

GAS DISCHARGE TUBS

Circuit Protection

Marking

: BrightKing Logo

2RM1000-8 : Device Marking Code

XXXX

: Internal Control Code

Dimensions

L Type

Symbol

Dimension (mm)

Spec.

Tolerance

8.0

+0.3, -0.5

6.0

+0.3, -0.5

0.8

±0.1

30.0

Max.

M Type

1.5

6.0

Recommended Pad Size

8.0

+0.3, -0.5

6.0

+0.3, -0.5

0.5

±0.1

Electrical Characteristics

Part

Number

☆

Spark-over

Voltage

Maximum

Impulse

Spark-over

Voltage

Nominal

Impulse

Discharge

Current

Alternating

Discharge

Current

Impulse

Life

Minimum

Insulation

Resistance

Maximum

Capacitance

Withstanding

Voltage

Device

Marking

Code

100V/s

1000V/μs

8/20μs

10times

50Hz,1sec

8/2

0μs

100A

Test

Voltage

(GΩ)

1MHz

(V)

(KA)

(A)

(times)

DC(V)

(pF)

2RM1000X-8-T6

1000±20%

1900

10.0

5.0

300

500

1.0

1.5

2RM1000-8

2RM1200X-8-T6

1200±20%

2000

10.0

5.0

300

500

1.0

1.5

2RM1200-8

2RM1400X-8-T6

1400±20%

2200

10.0

5.0

300

500

1.0

1.5

2RM1400-8

2RM1500X-8-T6

1500±20%

2300

10.0

5.0

300

500

1.0

1.5

2RM1500-8

2RM1600X-8-T6

1600±20%

2400

10.0

5.0

300

500

1.0

1.5

2RM1600-8

2RL2000X-8-T6

2000±20%

3200

5.0

300

500

1.0

1.5

2RL2000-8

2RL2500X-8-T6

2500±20%

3800

5.0

300

500

1.0

1.5

AC1250V,1min

2RL2500-8

2RL2700X-8-T6

2700±20%

4000

5.0

300

1000

1.0

1.5

AC1250V,1min

2RL2700-8

2RL3000X-8-T6

3000±20%

4200

5.0

300

1000

1.0

1.5

AC1500V,1min

2RL3000-8

Note: X may be L(Lead type) or M(SMD type)

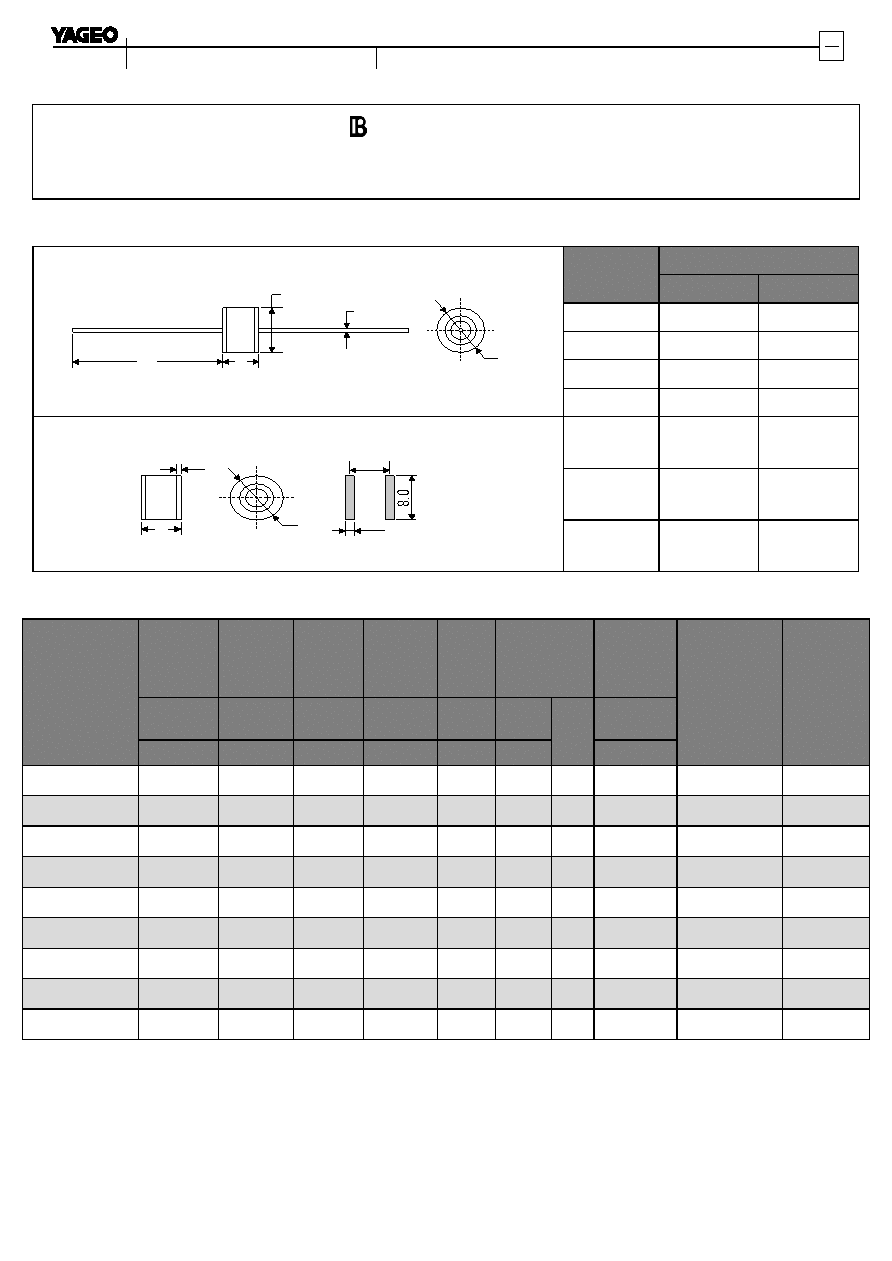

2RMDCL-8T6/TR Datasheet(PDF) 3 Page - YAGEO Corporation
