Product Specification

2R-8x6 series

GAS DISCHARGE TUBS

Circuit Protection

www.yageo.com

Feb. 02, 2021 V.1

Gas Discharge Tube (GDT) Data Sheet

Features

■ Provide ultra-fast response to surge voltage from slow-rising

surge of 100V/s to rapid-rising surge of 1KV/

μs

■ Stable breakdown voltage

■ High insulation resistance

■ Low capacitance (

≤1.5pF)

■ High holdover voltage

■ Large absorbing transient current capability

■ Micro-Gap Design

■ Size: 8.0mm*6.0mm

■ Storage and operating temperature: -40

℃ ~ +85℃

■ Meets MSL level 1, per J-STD-020

■ Safety certification: UL

Applications

■ Repeaters, Modems

■ Telephone Interface, Line cards

■ Data communication equipment

■ Line test equipment

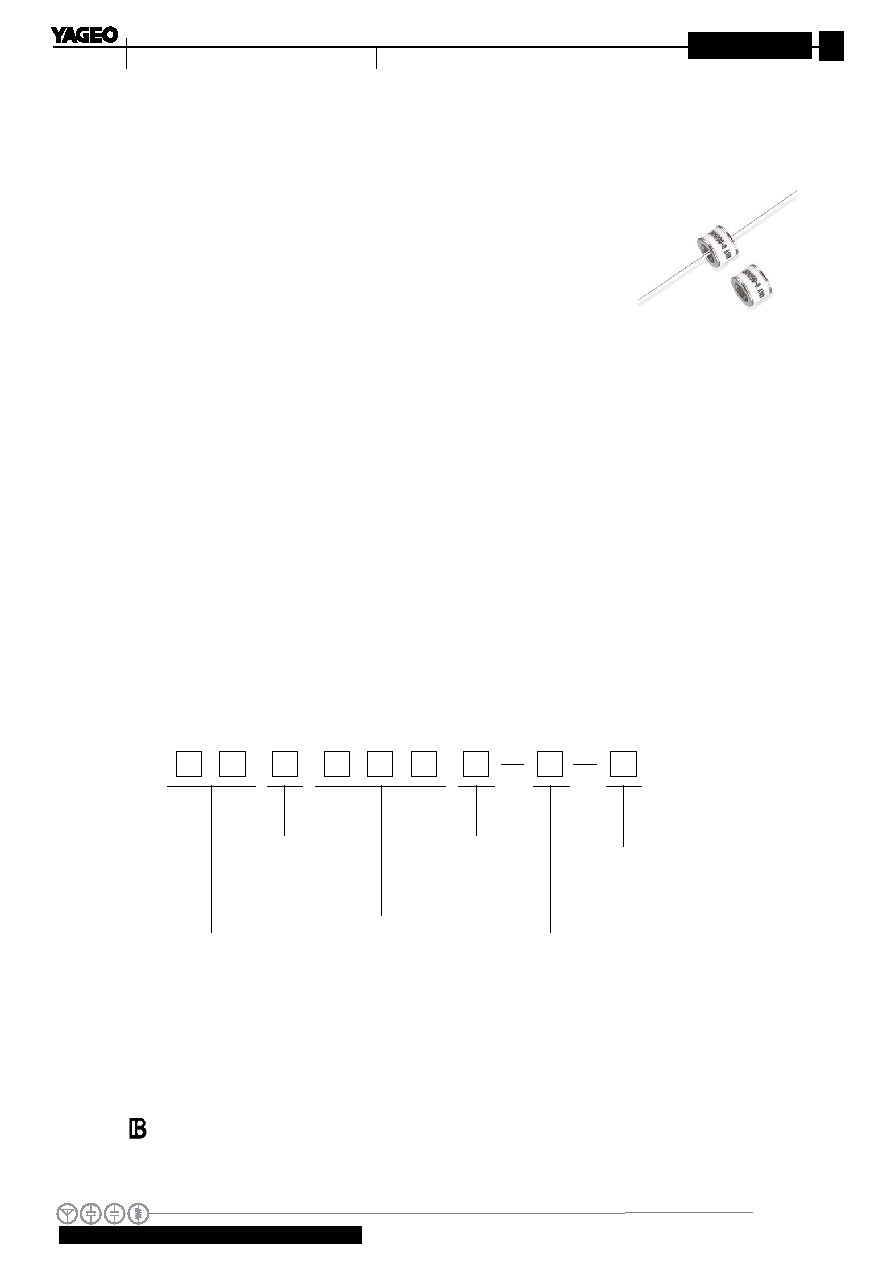

Part Number Code

2

R

Electrical

Characteristics

M: 10KA

P: 20KA

DC

Spark-over

Voltage

Lead Type

L: Lead

M: SMD

Dimensions

8: 8.0mm×6.0mm

Electrode Numbers

2R: 2 Electrodes

8

Packing Code

B : Box package

TR: Tape & Reel package

Ordering Code for different package in 2RMxxxL-8 and 2RPxxxL-8 series

Box package: Add suffix“/B”at the end of the part number, such as 2RM075L-8/B or 2RP075L-8/B

Tape & Reel package: Add suffix“/TR”at the end of the part number, such as 2RM075L-8/TR or 2RP075L-8/TR

Marking

: BritghtKing Logo

2RM090-8 : Device Marking Code

XXXX

: Internal Control Code
