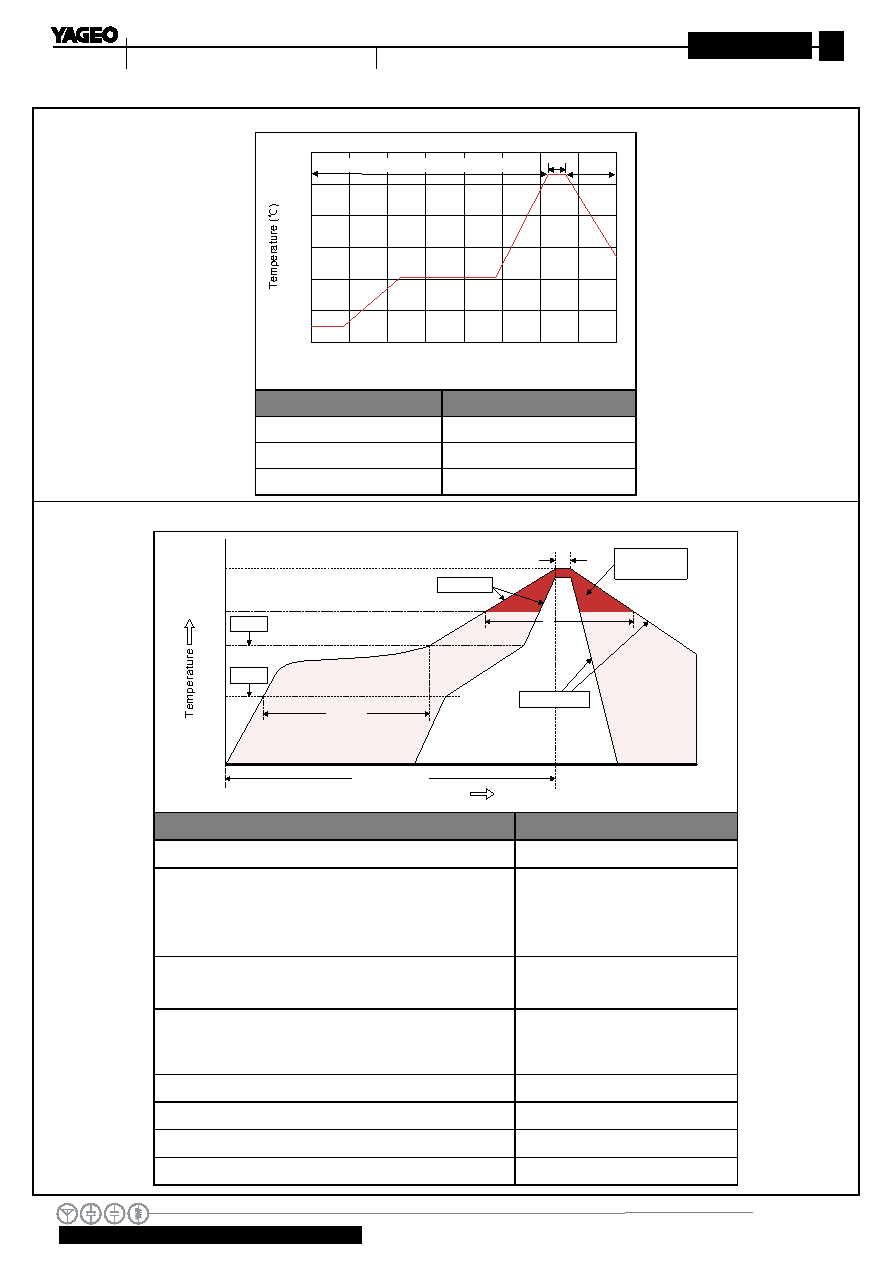

5 / 7 page  Product Specification 2R-8x6 series GAS DISCHARGE TUBS Circuit Protection www.yageo.com Feb. 02, 2021 V.1 Recommended Soldering Conditions Wave Soldering Time (minutes) Preheating Maximum Wave 265℃ Cooling Soldering 3.5 4 2.5 3 1.5 2 0.5 1 0 300 250 200 150 100 50 0 Item Conditions Peak Temperature 265 ℃ Dipping Time 10 seconds Soldering 1 time Reflow Soldering TP TL tS Preheat 25 TS max TS min Ramp-up Ramp-down Critical Zone TL to TP tP tL t 25℃ to Peak Time Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3 ℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150 ℃ 200 ℃ 60-180 seconds TS max to TL -Ramp-up Rate 3 ℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217 ℃ 60-150 seconds Peak Temperature (TP) 260 ℃ Time within 5 ℃ of actual Peak Temperature (t P) 20-40 seconds Ramp-down Rate 6 ℃/second max. Time 25 ℃ to Peak Temperature 8 minutes max. |
|
|
