23
1772E–DRMSD–10-Apr-06
ATSAM9708

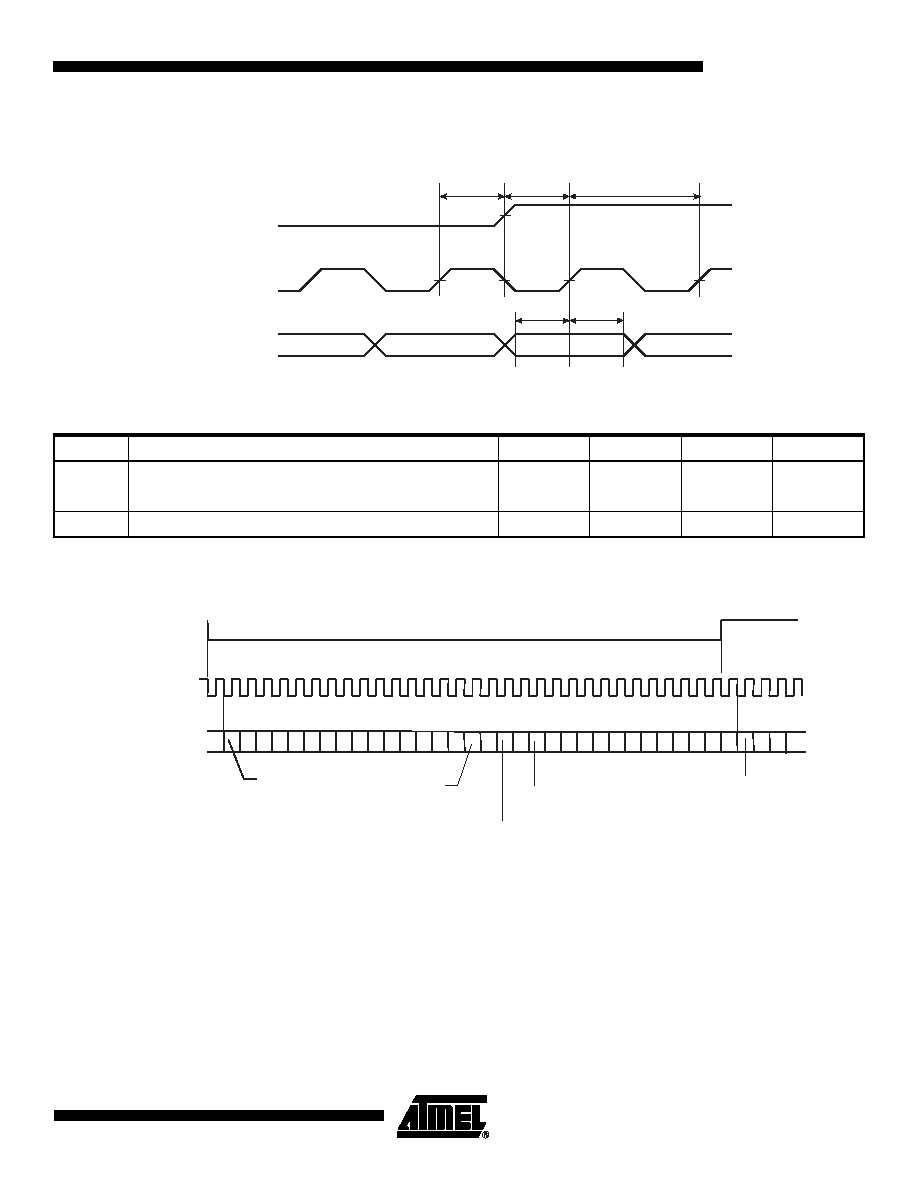

16. Digital Audio Timing
Figure 16-1. Digital Audio Timing Diagram
Figure 16-2. Digital Audio Frame Format
Note:
SD_IN[7:0] is always 20 bits.
tCW
tCW
tCLBD
tSOD
tSOD
WS_OUT
BCK_OUT
SD_IN[7:0]
SD_OUT[7:0]
Table 16-1.
Digital Audio Timing Parameters
Symbol
Parameter
Min
Typ
Max
Unit
tCW
BCK_OUT rising to WS_OUT change
8 x tCK- 10
ns
tSOD
SD_IN[7:0]/SD_OUT[7:0] valid prior/after BCK_OUT rising
8 x tCK - 10
ns
t
CLBD
BCK_OUT cycle time
16 x t
CK
ns
MSB
LSB
(16 bits)
LSB
(18 bits)
LSB
(20 bits)
WS_OUT
(I2S)
BCK_OUT
SD_IN[7:0]
SD_OUT[7:0]
MSB
