3-102
TELCOM SEMICONDUCTOR, INC.
TC7109
TC7109A
12-BIT
µP-COMPATIBLE
ANALOG-TO-DIGITAL CONVERTERS

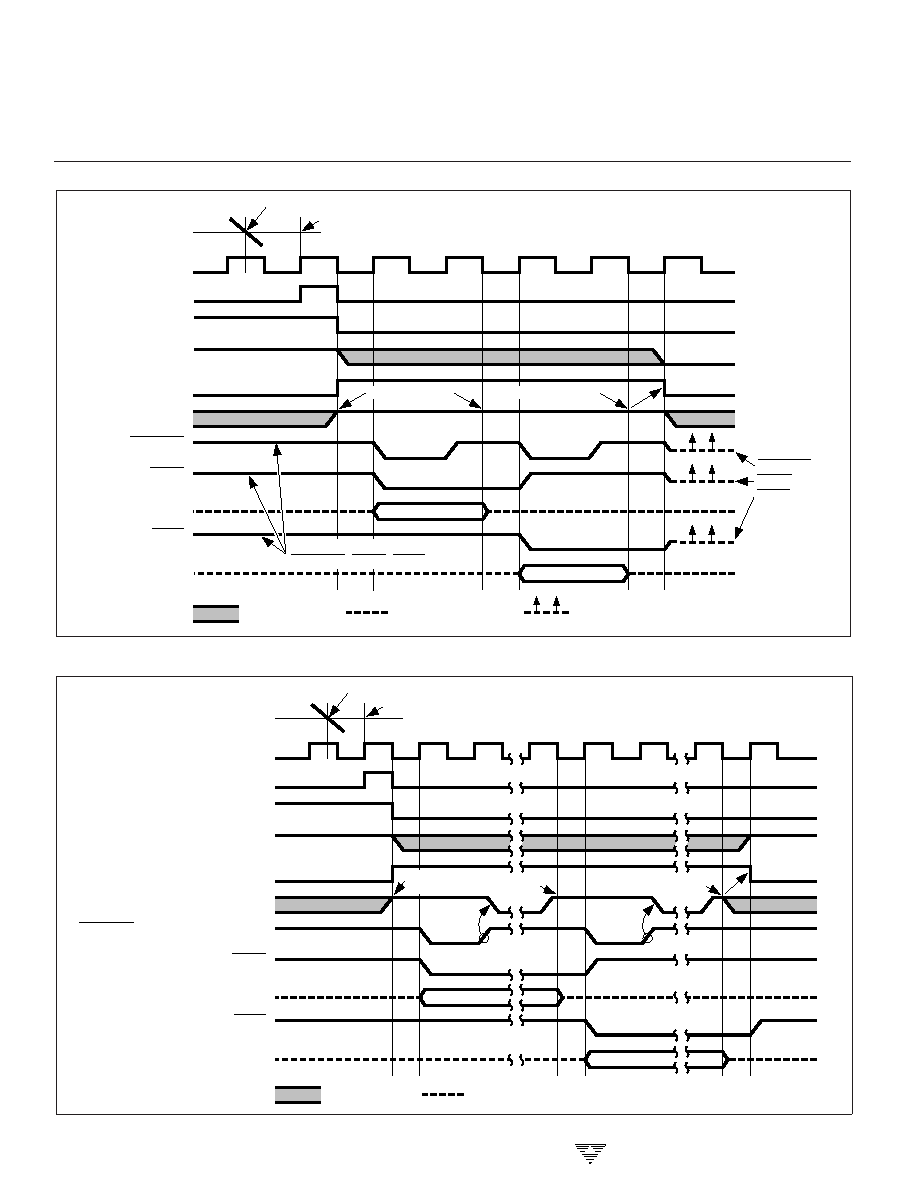

Figure 8.
TC7109A Handshake — Typical UART Interface Timing
Figure 7.
TC7109A Handshake With SEND INPUT Held Positive
= THREE-STATE
HIGH IMPEDANCE
INTEGRATOR
OUTPUT
DATA VALID
DATA VALID
INTERNAL CLOCK
INTERNAL LATCH
STATUS OUTPUT
MODE INPUT
INTERNAL MODE
SEND INPUT
CE/LOAD
HBEN
HIGH-BYTE DATA
LBEN
LOW-BYTE DATA
= DON'T CARE
= THREE-STATE
WITH PULL-UP
UART
NORM
TERMINATES
UART MODE
ZERO CROSSING DETECTED
ZERO CROSSING OCCURS
SEND SENSED
SEND SENSED
MODE LOW,
NOT IN
HANDSHAKE
MODE
DISABLES
OUTPUTS
CE/LOAD,
HBEN,
LBEN
MODE HIGH ACTIVATES
CE/LOAD, HBEN, LBEN
= THREE-STATE HIGH IMPEDANCE
INTEGRATOR OUTPUT
DATA VALID
INTERNAL CLOCK
INTERNAL LATCH
STATUS OUTPUT
MODE INPUT
INTERNAL MODE
SEND INPUT (UART TBRE)
CE/LOAD OUTPUT (UART TBRL)
HBEN
HIGH-BYTE DATA
LBEN
LOW-BYTE DATA
= DON'T CARE
UART
NORM
TERMINATES
UART MODE
ZERO CROSSING DETECTED
ZERO CROSSING OCCURS
SEND
SENSED
SEND
SENSED
SEND
SENSED
DATA VALID
