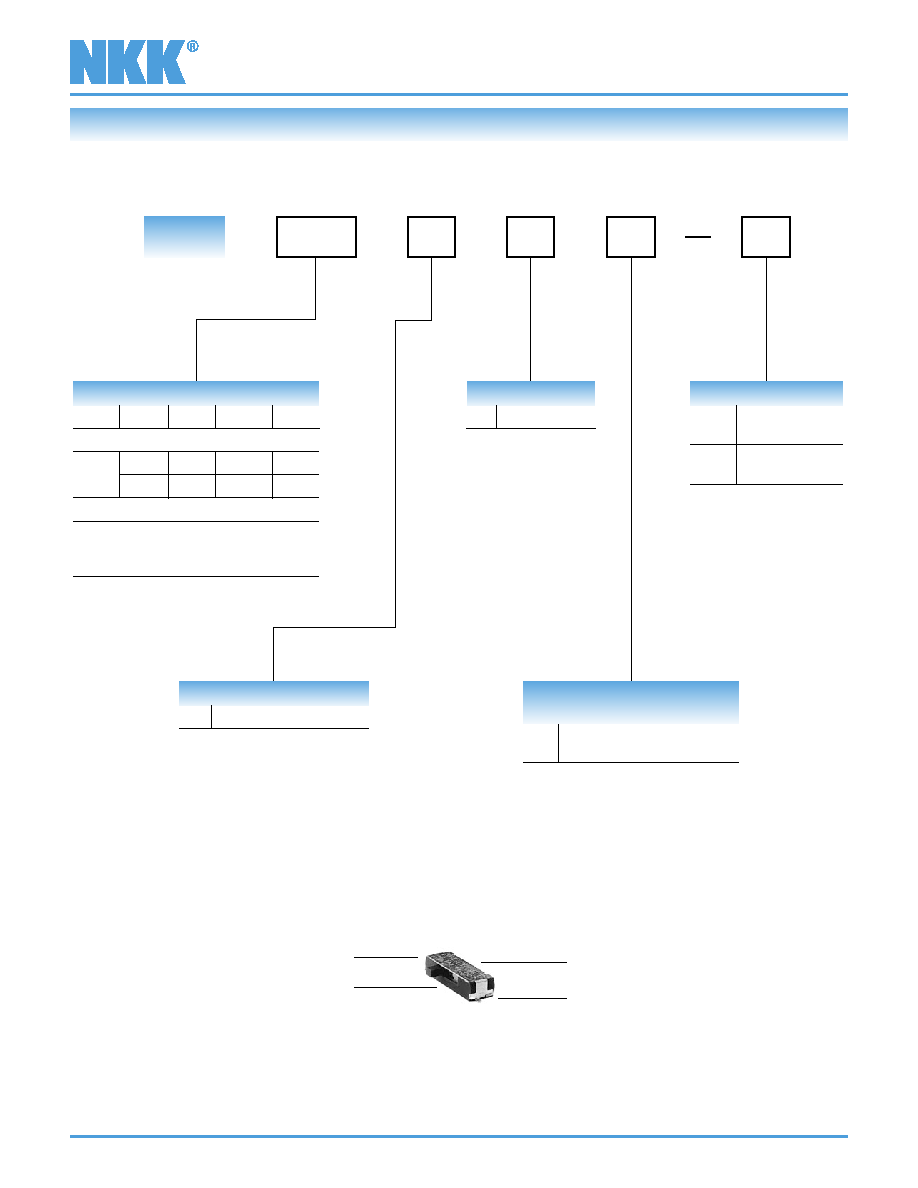

NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Ultra-Miniature SMT Slides
Series SS3
TYPICAL SWITCH ORDERING EXAMPLE
4
14M
SS3
SPDT ON-OFF-ON Circuit
2.0mm x 2.0mm Terminal Spacing
Gold Contacts with 0.4VA Rating
Side Actuated
POLES & CIRCUITS
12S
SPDT
ON
NONE
ON
SS312S model has shorting contacts.
14M
SPDT
ON
OFF
ON
SP3T
ON
ON
ON
SS314M model has nonshorting contacts.
For 3-on: External connection must be
made during installation; see
Poles & Circuits chart.
CONTACT MATERIAL
& RATING
4
Gold Rated 0.4VA maximum
@ 28V AC/DC maximum
A
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
SS314MAH4
H
TERMINAL SPACING
A
Metric 2.0mm x 2.0mm
ACTUATION
H Side Actuated
PACKAGING
R
Tape-Reel
500 Pieces/Reel
No
Code Partitioned Tray
