16-Bit I/O Expander IC
PT8300

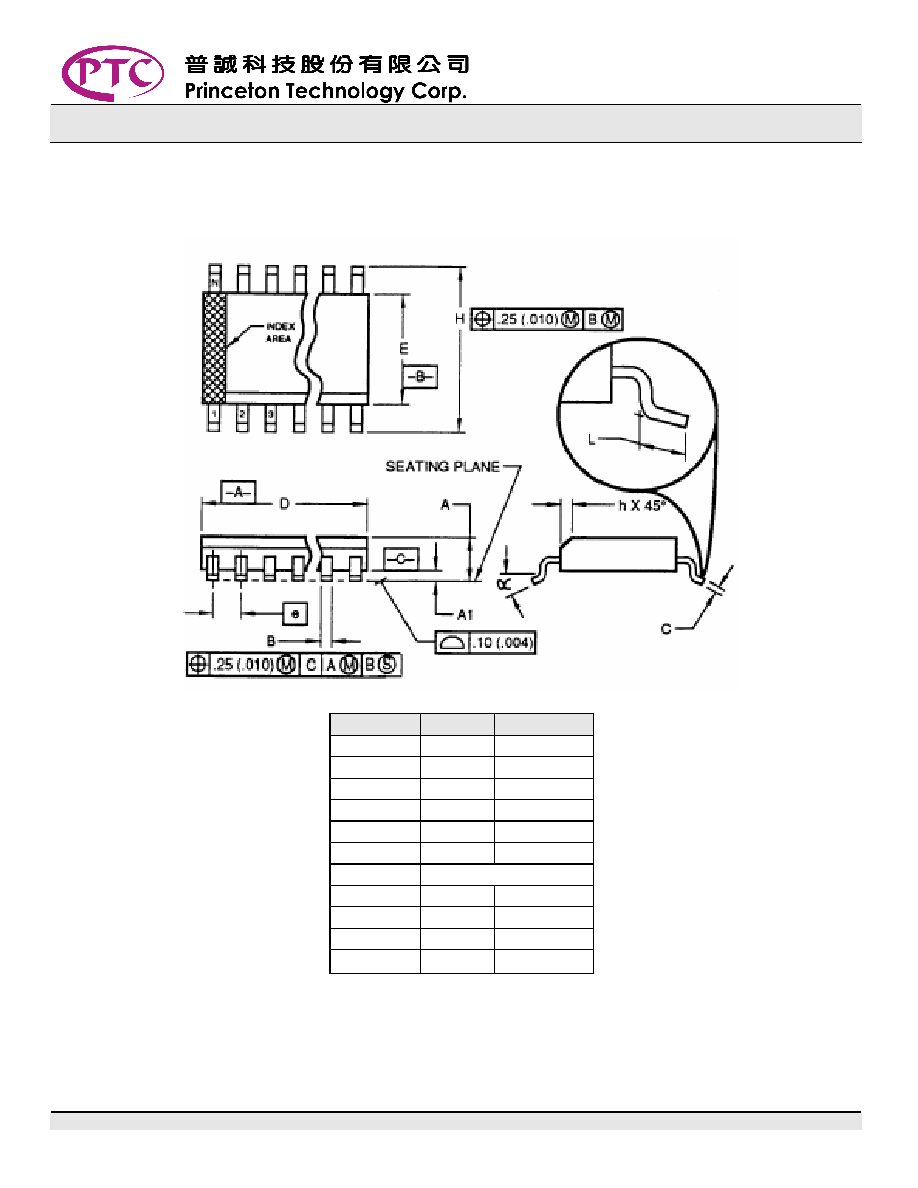

PACKAGE INFORMATION
28 PINS, SOP, 300MIL
Symbol
Min.
Max
A
2.35
2.65
A1
0.10
0.30
B
0.33
0.51
C
0.23
0.32
D
17.70
18.10
E
7.40
7.60
e
1.27 bsc
H
10.00
10.65
h
0.25
0.75
L
0.40
1.27
α
0o
8o
