START499D
Typical performance
Doc ID 14496 Rev 4
9/18

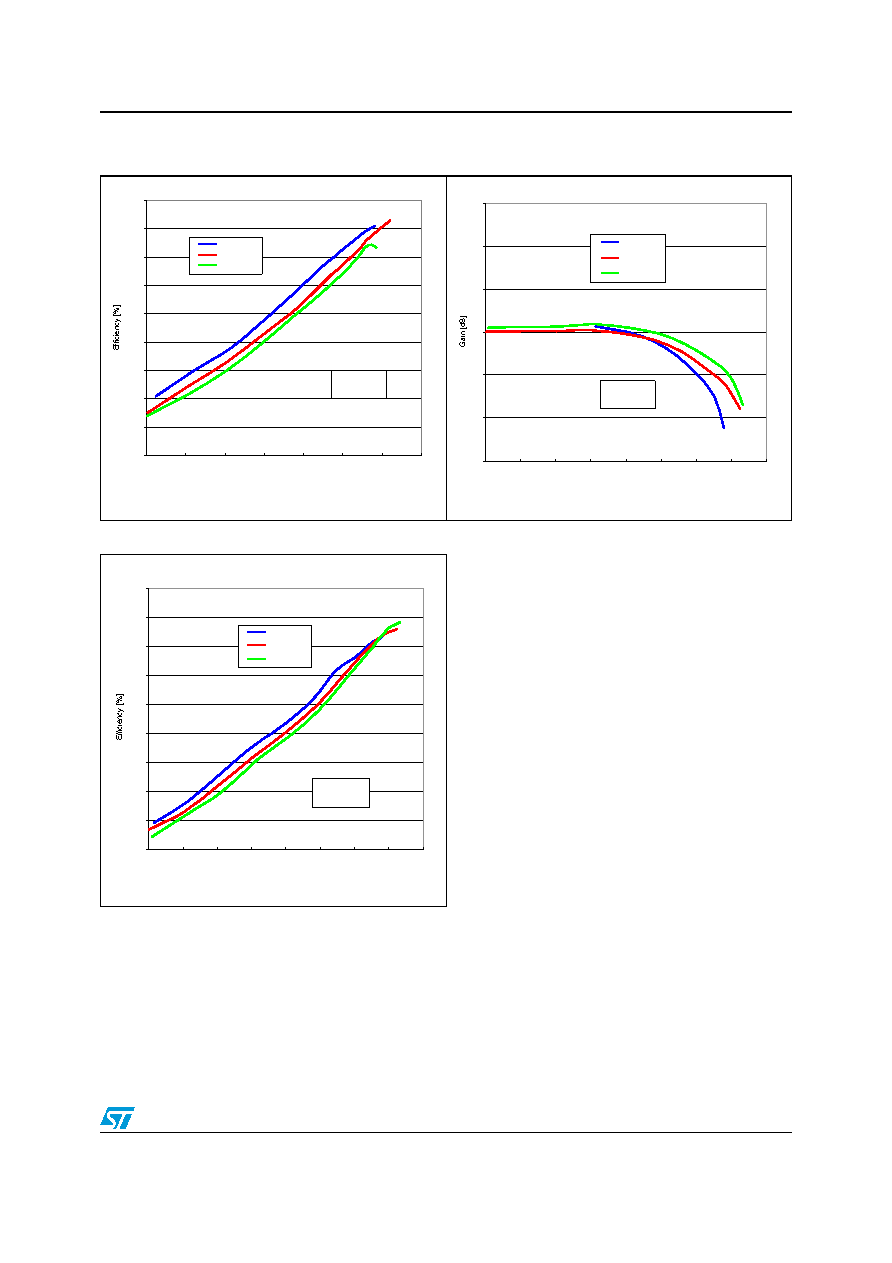

Figure 14.
Efficiency vs output power
Figure 15.
Gain vs output power
Figure 16.
Efficiency vs output power
25
30
35
40
45
50
55
60
65
70
21
22
23
24
25
26
27
28
Output Pow er [dBm]
860MHz
910MHz
960MHz
Vcc = 3 V
Icq = 30mA
12
13
14
15
16
17
18
16
17
18
19
20
21
22
23
24
Output Pow er [dBm]
860MHz
910MHz
960MHz
Vcc = 2 V
Icq = 30mA
25
30
35
40
45
50
55
60
65
70
16
17
18
19
20
21
22
23
24
Output Pow er [dBm]
860MHz
910MHz
960MHz
Vcc = 2 V
Icq = 30mA
