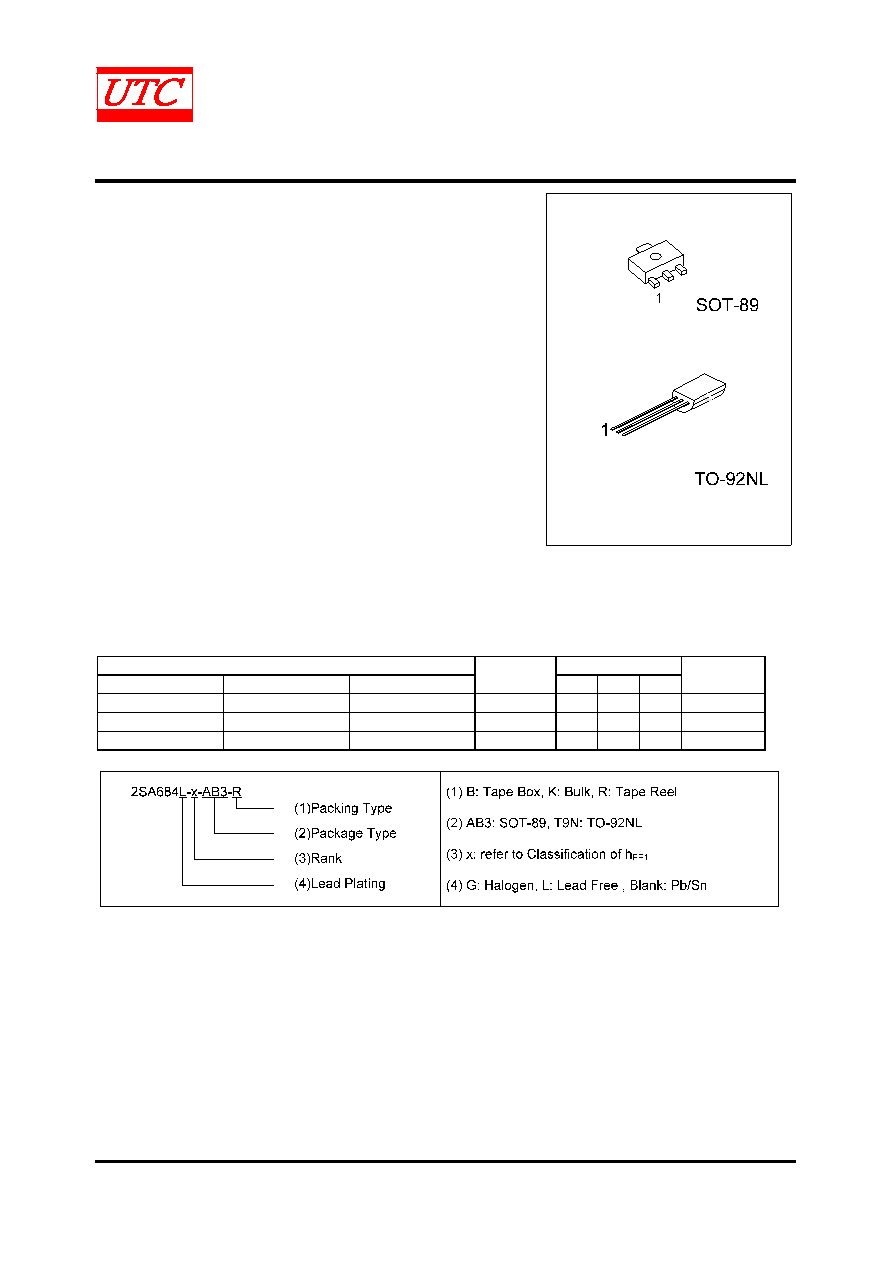

UNISONIC TECHNOLOGIES CO., LTD

2SA684

PNP SILICON TRANSISTOR

www.unisonic.com.tw

1 of 5

QW-R211-006.C

PNP SILICON TRANSISTOR

DESCRIPTION

The UTC 2SA684 is power amplifier and driver.

FEATURES

* Automatic insertion by radial taping possible.

* Complementary pair with 2SC1384

Lead-free:

2SA684L

Halogen-free: 2SA684G

ORDERING INFORMATION

Ordering Number

Pin Assignment

Normal

Lead Free

Halogen Free

Package

1

2

3

Packing

2SA684-x-AB3-R

2SA684L-x-AB3-R

2SA684G-x-AB3-R

SOT-89

B

C

E

Tape Reel

2SA684-x-T9N-B

2SA684L-x-T9N-B

2SA684G-x-T9N-B

TO-92NL

E

C

B

Tape Box

2SA684-x-T9N-K

2SA684L-x-T9N-K

2SA684G-x-T9N-K

TO-92NL

E

C

B

Bulk
